Summary of Contents for Gefen HDMI-148

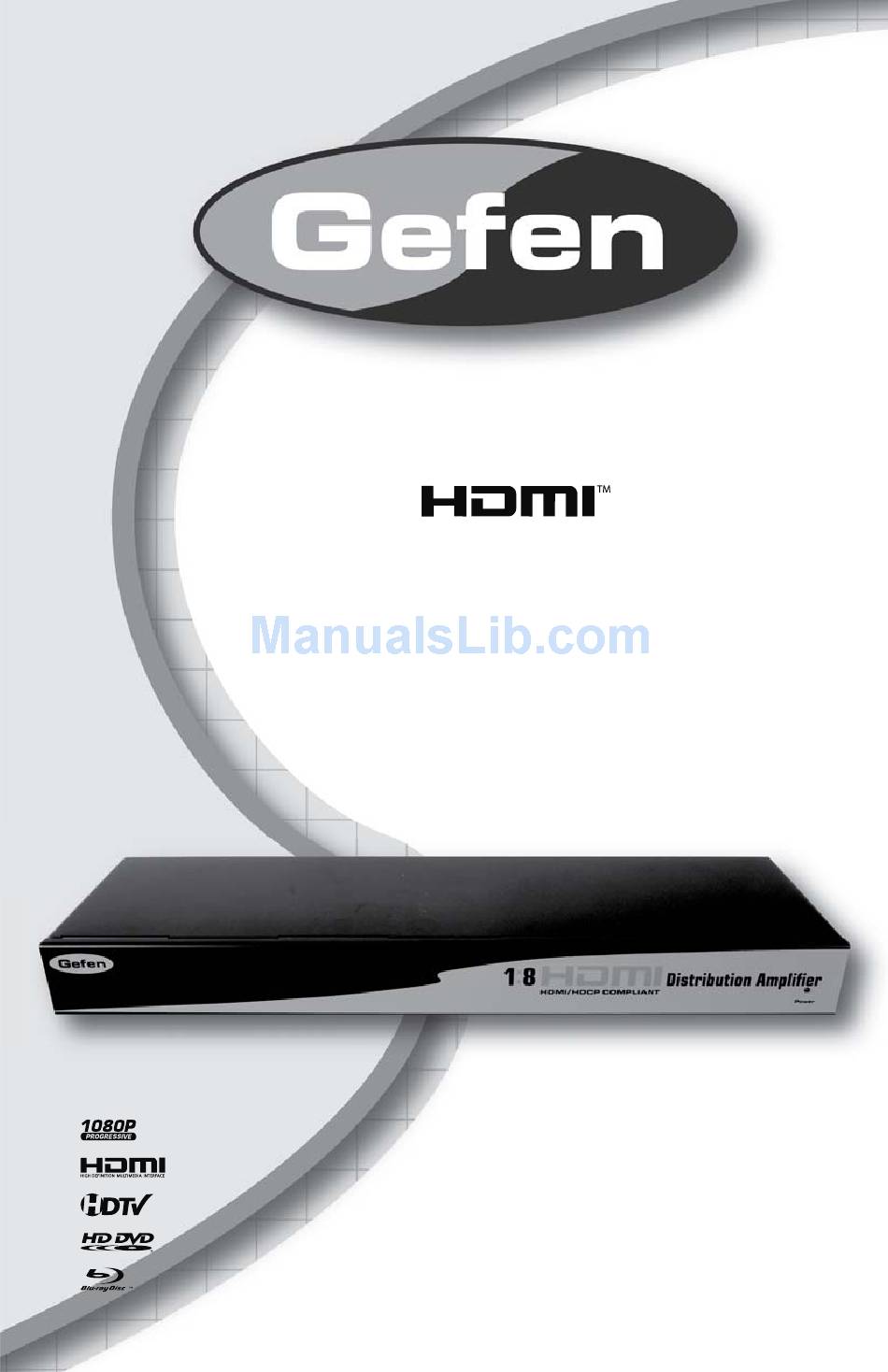

- Page 1 1:8 Distribution Amplifi er Model # EXT-HDMI-148 U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:8 Distribution Amplifi er For HDMI HDMI™ is a trademark of HDMI.org ©...
-
Page 3: Table Of Contents
Introduction / Operation Notes Features Panel Descriptions Connecting and Operating the 1:8 HDMI Distribution Amplifi er For HDMI Dip Switch Guideline Wiring Diagram Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction / Operation Notes
INTRODUCTION The Gefen 1:8 HDMI Distribution Amplifi er is the perfect solution for anyone who needs to send one source of digital high defi nition video to multiple displays at the same time. It supports all HDMI equipment, such as DVD players and satellite set top boxes and all HDMI displays. -
Page 5: Features
Features • Connects up to eight HDMI/DVI displays at the same time to one video source • Allows simultaneous display • Supports resolutions up to 1080p, 2K, and 1920 x 1200 • Extends the range of HDMI compliant devices by equalizing and re-clocking the HDMI signal •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... - Page 7 CONNECTING AND OPERATING THE 1:8 DISTRIBUTION AMPLIFIER FOR HDMI How to Connect the 1:8 Distribution Amplifi er For HDMI Connect the supplied cable from the HDTV HDMI source into the HDMI input port of the 1:8 Distribution Amplifi er For HDMI. Connect the user supplied cable(s) from your display(s) into the HDMI output port(s) of the1:8 Distribution Amplifi...
-
Page 8: Dip Switch Guideline
To access the Dip Switches, remove all screws from the bottom and sides of the Gefen unit. Carefully slide the unit apart. The 8 Bank of Dip Switches are located on the main PCB. Once adjustments are complete, slide the unit back together and replace all removed screws. -
Page 9: Wiring Diagram
WIRING DIAGRAM... -
Page 10: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Single Link Range ..1080p / 1920 x 1200 Input Connector Type ... HDMI Type A 19 Pin Output Connector Type ...HDMI Type A 19 Pin Power Consumption ...
