PROGRAMMING
4
USER SETTINGS
Setting the Extended Hold Time (see also section 5.3)
4.3.3
The default setting is Long (indefinite) Hold. If the HOLD feature is activated, the current
setpoint will be held until HOLD is released.

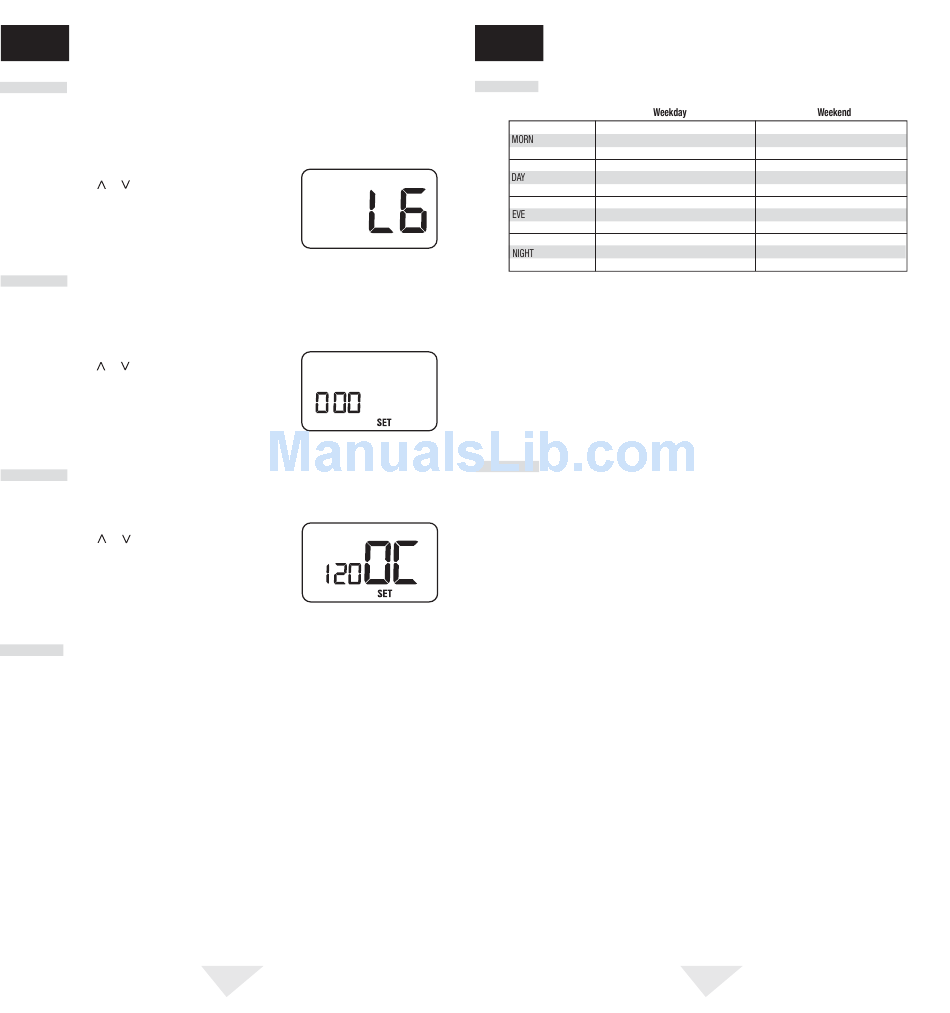

8. After pressing the RETURN button again, the display will show "HOLD LG", where
LG is indefinite hold.
9. Press the
or button to change the Extended
Hold time from indefinite (LG) to 24 hours (SH).
10. Press the RETURN button again to set the Filter
Check Monitor, or wait 15 seconds for
the thermostat to return to the normal mode.
Setting the Filter Check Monitor (see also section 5.4)
4.3.4
The default setting is 0 days (monitor disabled).
11. After pressing the RETURN button again, the display will show "FILT XXX SET",
where XXX is the Filter Monitor interval.
12. Press the or button to change the Filter
Monitor interval to the desired value of 0
(disabled), 30, 60, 90, 120, or 180 days.
13. Press the RETURN button again to set the
Recirculating Fan cycle, or wait 15 seconds
for the thermostat to return to the normal mode.
Setting the Recirculating Fan Cycle (see also section 5.7)
4.3.5
14. After pressing the RETURN button again, the display will show "XXX OC SET",
where XXX is the Recirculating Fan off cycle.
15. Press the
or button to change the
Recirculating Fan off cycle to the desired
value of 120, 60, or 40 minutes.
16. Press the RETURN button again to return to the
normal mode, or wait 15 seconds for the
thermostat to return automatically.
Setting Your Energy Saving Programs–Tips Before Starting
4.4
• It is important for you to set the current time of day (note the AM/PM indicator in the display),
and the current day of week correctly to avoid problems with program execution. This must be
done prior to entering any program settings.
• The heating and cooling programs have both separate setpoint times and setpoint temperatures.
• This thermostat is preprogrammed with weekday and weekend times and temperatures
recommended by the Environmental Protection Agency and the U.S. Department of Energy in
their ENERGY STAR® program. These settings provide efficient energy savings during normal
heating and cooling modes of operation. If you desire to use the settings in the table, no
further programming is necessary. Review these time and temperature settings prior
to establishing your personal program settings to maximize your savings, and minimize
programming requirements.
cont.
HOLD
FILT
6
PROGRAMMING
4
USER SETTINGS
Setting Your Energy Saving Programs
4.4
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 8:00 am
Heat: 62˚ F (17˚ C)
Cool: 83˚ F (28˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 78˚ F (26˚ C)
NOTE: If the 7 day programming mode was selected using the slide switch on the circuit board during
installation (section 2.2), the default program will use the weekday times and temperatures shown
above for all 7 days. The programming mode can be switched between weekday-weekend and 7 day
at any time by removing the thermostat from the base, and following steps 18-20 in section 2.2, then
pressing the reset button. All settings must then be reentered starting with section 4.2.
• Make sure you place the system switch in the HEAT or COOL modes of operation as appropriate. You
should not enter a program in the OFF position.
• When you place the system switch in the COOL or HEAT modes of operation, the appropriate indicator
will also appear in the LCD display when the system is running.
• When you place the system switch in the OFF mode the display will indicate OFF.
Programming Overview For 7 Day Programming Mode
4.4.1
(Programming switch set to 7 day - see installation section)
You can select one of three Quick Program Groups of Individual Day programming to allow you
to change the daily setpoint times and temperatures to meet your individual schedule needs.
The Quick Program Groups can be used to set the main portion of your schedule, allowing you
to later modify specific days of the week as required using the Individual Day programming
capabilities.
Once you enter the program mode, you can select the Quick Program Group or Individual Day
Programs as you desire.
See Section 4.4.2, Entering Your Program
Whole Week - allows you to program all seven days (M, TU, W, TH, F, SA, SU will show in
display) at the same time. Then you can use individual day programming to fine tune your
program for the few setpoint times or temperatures that you may wish to change.
Weekday - allows you to program all the weekdays (M, TU, W, TH, F will show in display) at
the same time. Then go to Weekend group mode to finish programming your weekend
setpoint times and temperatures. Individual day programming can be used to fine tune your
settings to match your daily needs.
Weekend - allows you to program all the weekend days (SA, SU will show in the display) at
the same time. Again, individual day programming can be used to change specific setpoint
times or temperatures.
Individual Days - allows you to program each day of the week individually to give you the
greatest schedule flexibility. Often used to fine tune programming after initially programming
the thermostat using Whole Week, Weekday, or Weekend groups.
cont.
cont.
Time: 6:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 8:00 am
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 6:00 pm
Heat: 70˚ F (21˚ C)
Cool: 75˚ F (24˚ C)
Time: 10:00 pm
Heat: 62˚ F (17˚ C)
Cool: 78˚ F (26˚ C)
7
