Premier Series
MODEL
5400
Universal Auto Changeover Thermostat
Up to 3 Heat / 2 Cool
Conventional and Heat Pump
USER
MANUAL
READ ALL INSTRUCTIONS
BEFORE PROCEEDING
For more information on energy
savings, go to www.energystar.gov
Braeburn Systems LLC, as an Energy Star partner has determined that this product meets the Energy Star Guidelines developed
by the U.S. Environmental Protection Agency & the U.S. Department of Energy for maximum energy efficiency.
© 2008 Braeburn Systems LLC • Patents Pending • All Rights Reserved. Pub. No. 5400-110-001
CONTENTS
1
3

QUICK REFERENCE

2
PROGRAMMING
4
USER SETTINGS
1
QUICK REFERENCE
1
SYSTEM Button: Selects AUTO (Heat/Cool), COOL, OFF,
HEAT or EMER.
PROG Button: Program setup mode; selects set point time,
2
temperature and fan setting for each program.
HOLD Button: Enables extended hold; clears extended hold
3
or temporary override.
4
RETURN Button: Allows user to enter settings and returns
thermostat to normal mode from program mode.
DAY/TIME Button: Selects hour, minute and day setting.
5
Selects program day in Program setting mode.
6
FAN Button: Selects AUTO, ON, CIRC (recirculate) and
PROG (program) modes.
RESET Button: Located on front of thermostat, will return
7
programming, clock, differential settings, filter check monitor,
adjustment limit from set point, keypad lock, temperature
hold, short cycle timer and recirculating fan to default settings.
8
Button: Turns on backlight for 10 seconds.
9
Button: Increases setting (time, temperature, etc.). Scrolls between option settings.
Button: Decreases setting (time, temperature, etc.). Scrolls between option settings.
10
+
2
5
When pressed at the same time, reviews humidity settings.
+
2
When pressed at the same time, displays outdoor temperature if outdoor sensor is installed.
3
ADDITIONAL OPERATION FEATURES
TROUBLESHOOTING

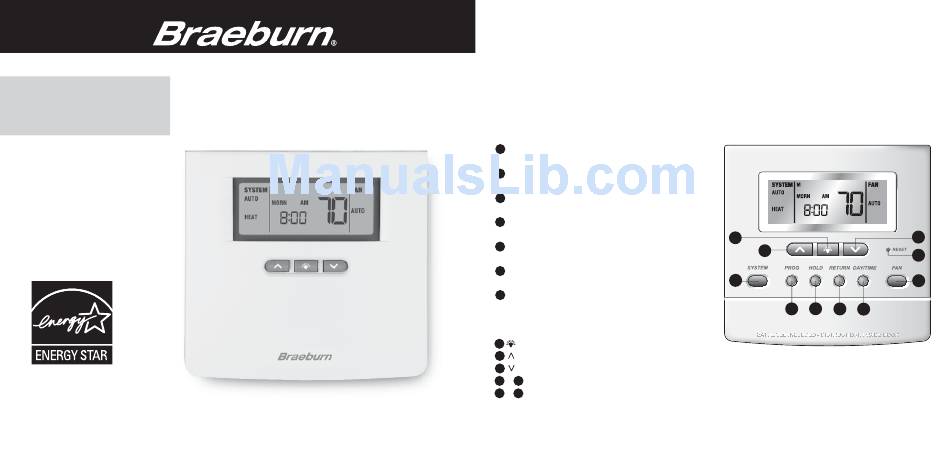

model 5400 shown with cover open
8
9
1
2
3
4
5
1
10
7
6
