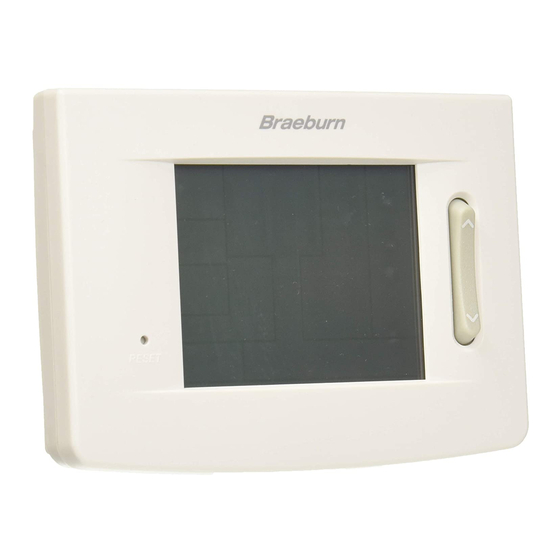

Braeburn 5310 Installer's Manual

Programmable touchscreen thermostats
Hide thumbs

Advertisement

Quick Links

Detailed
Installer Guide
Programmable Touchscreen Thermostats
5310 Single Stage Heat / Cool Conventional
or Heat Pump
5320 Up to 4 Heat / 2 Cool Heat Pump
Up to 3 Heat / 2 Cool Conventional
Model number is located on back of thermostat.
1 Specifications
Attention
To prevent damage to the thermostat, never use a sharp instrument
to press the touchscreen keys. Always press keys with your fingers.
Warning
For installation by experienced service technicians only.
Caution
• Possible electric shock or damage to equipment can occur.
• Disconnect power before beginning installation.
This thermostat requires 24 Volt AC Power or 2 properly installed "AA" Alkaline
batteries for proper operation. When connecting 24 Volt AC Power the batteries may
be installed as a backup.
For use only as described in this manual. Any other use will void warranty.
1 Specifications
This thermostat is compatible with:
• Single stage heat / cool conventional and heat pump systems
• Conventional systems up to 3 stages of heating and 2 stages of cooling (5320 only)
• Heat pump systems up to 4 stages of heating and 2 stages of cooling (5320 only)
• 250 – 750 millivolt heating only systems
Electrical and control specifications:
• Electrical Rating: 24 Volt AC
• 1 amp maximum load per terminal
• AC Power: 18 – 30 Volts AC
• DC Power: 3.0 Volt DC (2 "AA" Alkaline Batteries Included)
• Control Range: 45° – 90° F (7° – 32° C)
• Temperature Accuracy: +/- 1° F (+/- .5° C)
• Outdoor Temperature Display Range: -40° - 120° F (-40° - 49° C)
Terminations
• 5310: G, Rc, Rh, W1, O/B, Y1, C, S1, S2
• 5320: A, G, Rc, Rh, W1/E/AUX1, W2/AUX2, W3/O/B, Y1, Y2, C, L, S1, S2
2 Installation and Wiring
4 Installer Settings
®
Touchscreen
3 Quick Reference
5 System Testing
®
5310W-100-02

Advertisement

loading

  Also See for Braeburn 5310

  Related Manuals for Braeburn 5310

  Summary of Contents for Braeburn 5310

  • Page 1 Touchscreen ® Installer Guide Programmable Touchscreen Thermostats 5310 Single Stage Heat / Cool Conventional or Heat Pump 5320 Up to 4 Heat / 2 Cool Heat Pump Up to 3 Heat / 2 Cool Conventional Model number is located on back of thermostat.
  • Page 2: Installation And Wiring

    2 Installation and Wiring Warning Disconnect power before beginning installation. Thermostat Location Install the thermostat approximately 5 feet (1.5m) above the floor in an area that has a good amount of air circulation and maintains an average room temperature. Avoid installation in locations where the thermostat can be affected by drafts, dead air spots, hot or cold air ducts, sunlight, appliances, concealed pipes, chimneys and outside walls. Install your new Braeburn thermostat in 4 basic steps: 1 Install the Sub-Base 2 Provide Power 3 Connect Your Wires 4 Attach Thermostat to Sub-Base Install the Sub-Base: • Remove the sub-base from the body of the thermostat. • Mount the sub-base as shown below: Drill 3/16” pilot holes in your desired location.
  • Page 3: Connect Your Wires

    Provide Power 24VAC Power Terminal (C) Batteries Installed as Shown • For 24 Volt AC power, you must connect the common side of the transformer to the C terminal on the thermostat sub-base. In dual transformer installations, the transformer common must come from the cooling transformer. • For battery power, insert the 2 supplied “AA” type alkaline batteries into the battery compartment located in the rear housing of the thermostat. Make sure to position the Positive (+) and Negative (-) sides of the batteries correctly with the +/- symbols in the battery compartment. Connect Your Wires Wiring Terminations for model 5310 Terminal Function Description Output Fan Control Rc Input 24 Volt AC Cooling Transformer (Dual Transformer Systems Only) Rh Input Power Connection (24 Volt AC Heating Transformer or Millivolt Power Source) W1 Output...
  • Page 4: Function Description

    Connecting Your Wires (continued) Wiring Terminations for model 5320 Terminal Function Description A Output Economizer Control G Output Fan Control Rc Input 24 Volt AC Cooling Transformer (Dual Transformer Systems Only) Rh Input Power Connection (24 Volt AC Heating Transformer or Millivolt Power Source) W1 / E / Output (W1) 1st Stage Conventional Heat, AUX1 (E) Emergency Heat, (AUX1) 1st Stage Auxiliary Heat W2 / AUX2 Output (W2) 2nd Stage Conventional Heat, (AUX2) 2nd Stage Aux Heat W3 / O / B Output (W3) 3rd Stage Conventional Heat, ...
  • Page 5: Conventional Systems

    Conventional Systems Typical Wiring Configurations NOTE: The “System Type” option will be configured in the Installer Settings section. The 5310 is a single stage thermostat and not intended for multi stage equipment. Heat Only or Millivolt 3 HEAT / 2 COOL Single or Dual Transformer...
  • Page 6: Heat Pump Systems

    Heat Pump Systems Typical Wiring Configurations NOTE: The “System Type” option will be configured in the Installer Settings section. The 5310 is a single stage thermostat and not intended for multi stage equipment. 1 HEAT / 1 COOL - No Auxiliary Heat 3 HEAT / 2 COOL –...
  • Page 7: Attach Thermostat To Sub-Base

    Additional Wiring Options NOTE: Additional options are configured in the NOTES - Additional Wiring Options Installer Settings section. [1] These terminals can be used to connect a Braeburn indoor or outdoor remote sensor. ® [2] This terminal can be used for economizer Indoor or Outdoor Remote Sensor [note 1] control (5320). Economizer Control (5320 only) [note 2] Attach Thermostat to Sub-Base W1/E W1/E /AUX1 /AUX1 AUX2 1) Line up the thermostat body with the sub-base.
  • Page 8: Quick Reference

    3 Quick Reference Thermostat Display Room Temperature ...... Displays the current room temperature Lock Mode Indicator ....Indicates if the thermostat is locked Set Temperature ...... D isplays the current set point temperature Service Indicators ...... D isplays various service/maintenance information Time of Day ......... D isplays the current time of day Program Event Indicator.... D isplays the program event Day of the Week .
  • Page 9: Thermostat Touchpads Tm

    “touch sensitive” segments used to adjust your thermostat. Depending on the equipment installed, all touch pads may not show. SYSTEM..Selects AUTO (Heat/Cool), COOL, OFF HEAT or EMER (Emergency Heat) FAN..... Selects AUTO, ON, CIRC (Circulation) and PROG (Program) fan modes PROG..Selects programming mode or press for 3 seconds to select SpeedSet mode HOLD..Enters / Exits the HOLD mode (program bypass) DAY/TIME... Sets the current time and day of the week BACK..Moves back in setting and programming modes NEXT... M oves forward in setting and programming modes RETURN..Returns to normal mode from program or settings modes CONFIG..Enters the User and Installer settings modes CLEAN..Enters a brief screen cleaning mode Outdoor Temperature If a Braeburn outdoor temperature sensor was connected, you may touch the room temperature area of the ® screen to view the outdoor temperature. Installer Guide...
  • Page 10: Installer Settings

    Settings are menu driven. The portion of these settings that do not apply to your setup will be skipped. These settings are indicated below with comments. More detail on each setting follows this table. 1. Touch and hold down the SYSTEM and CONFIG TouchPads for 3 seconds. ™ 2. Release both buttons and the first installer setting will be displayed. 3. Change settings as required using the UP or DOWN portion of the SpeedBar ® 4. Touch NEXT or BACK to move to the next or previous setting, touch RETURN to exit. NOTE: Shaded areas below do not apply to the 5310. No. Installer Setting Factory Setting Comments Default Options Notes follow this table) (More information follows this table)
  • Page 11 90-60 LIM Select a Heat Set Point Upper Limit of 90°-60° F (32°-10° C) 28 Cool Set Point Lower Limit 45LIM 45-80 LIM Select a Cool Set Point Lower Limit of 45°-80° F (7°-27° C) *When a Braeburn outdoor sensor is connected, the thermostat automatically recognizes it. Press room temperature digits to ® display outdoor temperature. NOTE: Additional options such as Service Monitors, Setting the lock code, audible tone, etc. are located in the User Settings – See User manual for information on setting these options.
  • Page 12 NOTES - Installer Settings 1 Only available if Residential profile was selected in option 1. 2 Only available if a 2, 3 or 4 stage system type was selected in option 6. 3 Only available if a Conventional system was selected in option 6. 4 Only available if a 2, 3 or 4 stage Heat Pump system was selected in option 6. 5 Only available if a Heat Pump system was selected in option 6. 6 Only available if the 24 Volt AC common wire is connected to the C terminal. 7 Only available if a programmable profile was selected in option 2. 8 Only available if a Braeburn indoor remote sensor was connected. ® 9 Only available if auto changeover was enabled in option 5. 10 Only available if a Braeburn outdoor sensor was connected. 11 Only available if Commercial profile was selected in option 1. Detailed Explanation of Installer Settings (also see NOTES above): Profile – Selects a residential (RES) or commercial (COMM) profile. If residential is selected, 4 programming events per day are available. If commercial is selected, 2 event, 7 day programming is available. Programming Mode [note 1] – Selects the programming mode, either full 7 day or 5-2 day (weekday/...
  • Page 13 8] – If a Braeburn indoor remote sensor is connected during ® installation, the thermostat will automatically detect the sensor. When an indoor sensor is detected, you may select between thermostat only (I SENS), remote sensor only (E SENS) or combining the thermostat and the remote sensor (A SENS). NOTE: This option does not apply to a Braeburn outdoor sensor. When an outdoor sensor is connected the thermostat automatically recognizes it and no further configuration is necessary. 22 Lockout Security Level – Selects the level of keypad lockout when the thermostat is locked. Level 2 locks the entire thermostat (including the front reset button). Level 1 locks everything except the SpeedBar ® allowing for up and down temperature adjustment. NOTE: The lock code is set in the User Settings mode (see User Manual).
  • Page 14 26 Outside Air Intake [note 11] – Selects economizer control options. Select between disabled (NONE), economizer mode (ECON) and time of day (TOD) mode. Time Step / Override Cooling Call External Air Output (A) Economizer Time of Disabled Mode Day Mode Occupied YES or NO Unoccupied Override YES or NO Time Step / Override Heating Call External Air Output (A) Economizer Time of Disabled...
  • Page 15: System Testing

    5 System Testing Warning Read Before Testing • Do not short (or jumper) across terminals on the gas valve or at the heating or cooling system control board to test the thermostat installation. This could damage the thermostat and void the warranty. • Do not select the COOL mode of operation if the outside temperature is below 50º F (10º C). This could possibly damage the controlled cooling system and may cause personal injury. • This thermostat includes an automatic compressor protection feature to avoid potential damage to the compressor from short cycling. When testing the system, make sure to take this delay into account. NOTE: The compressor delay can be bypassed by pressing the reset button on the front of the thermostat. All user settings will be returned to factory default, however all Installer settings will remain as originally programmed in section 4.
  • Page 16: Limited Warranty

    ® Limited Warranty When installed by a professional contractor, this product is backed by a 5 year limited YEAR warranty. Limitations apply. For limitations, terms and conditions, you may obtain a full copy of this warranty: LIMITED WARRANTY · Visit us online: www.braeburnonline.com/warranty · Phone us: 866.268.5599 · Write us: Braeburn Systems LLC 2215 Cornell Avenue Montgomery, IL 60538 Store this manual for future reference. ® Braeburn Systems LLC 2215 Cornell Avenue • Montgomery, IL 60538 Technical Assistance: www.braeburnonline.com Call us toll-free: 866-268-5599 (U.S.) 630-844-1968 (Outside the U.S.) 5310W-100-02 ©2012 Braeburn Systems LLC • All Rights Reserved • Made in China.
