System Configuration 4-Channel Input Mode - EMPHASER EA490-200 Installation & Operating Manual

EA490200 Manual 28.07.2000 16:11 Uhr
CD/MD CHANGER
SUB LEVEL
REMOTE
CONTROL
HEAD-UNIT
SUB LEVEL
CONTROL
TWEETER
BASS/MIDRANGE
COAXIAL/TRIAXIAL SYSTEM
Seite 13
EA490-200
2 PRE-OUT
FRONT & REAR
G r e a t A m e r i c a n C a r A u d i o
G r e a t A m e r i c a n C a r A u d i o
PASSIV
X-OVER
G r e a t A m e r i c a n C a r A u d i o
PASSIV
INLINE
X-OVER

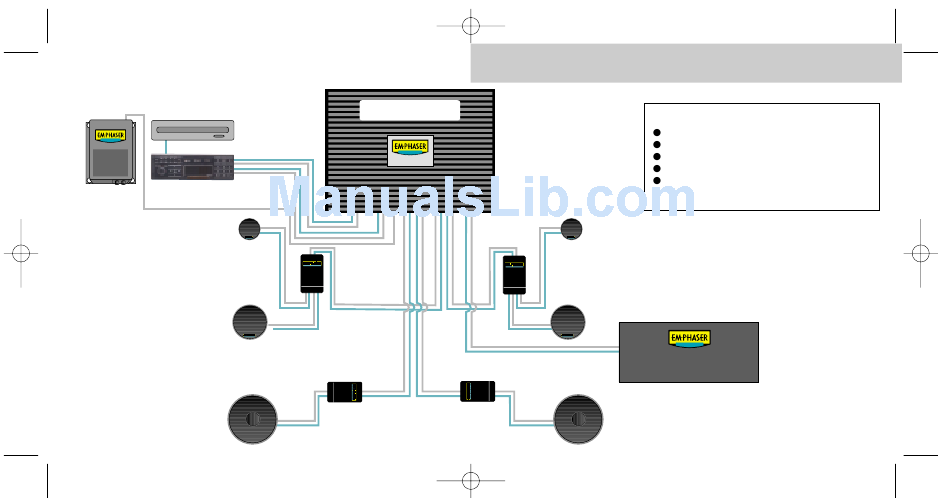

System Configuration
TWEETER
G r e a t A m e r i c a n C a r A u d i o
G r e a t A m e r i c a n C a r A u d i o
PASSIV
X-OVER
BASS/MIDRANGE
G r e a t A m e r i c a n C a r A u d i o
TRUNKBOX SUBWOOFER
PASSIV
COAXIAL/TRIAXIAL SYSTEM
INLINE
X-OVER
4-CHANNEL INPUT MODE
Please note!
all Satellites are driven in High-Pass Mode
Subwoofer channel is driven in Low-Pass Mode
all Satellites must be 2 Ohms or more
Subwoofer may be 2 - 4 Ohms
4-Channel Input Mode supports fader
control on head-unit
13
