Summary of Contents for EMPHASER EA2160S

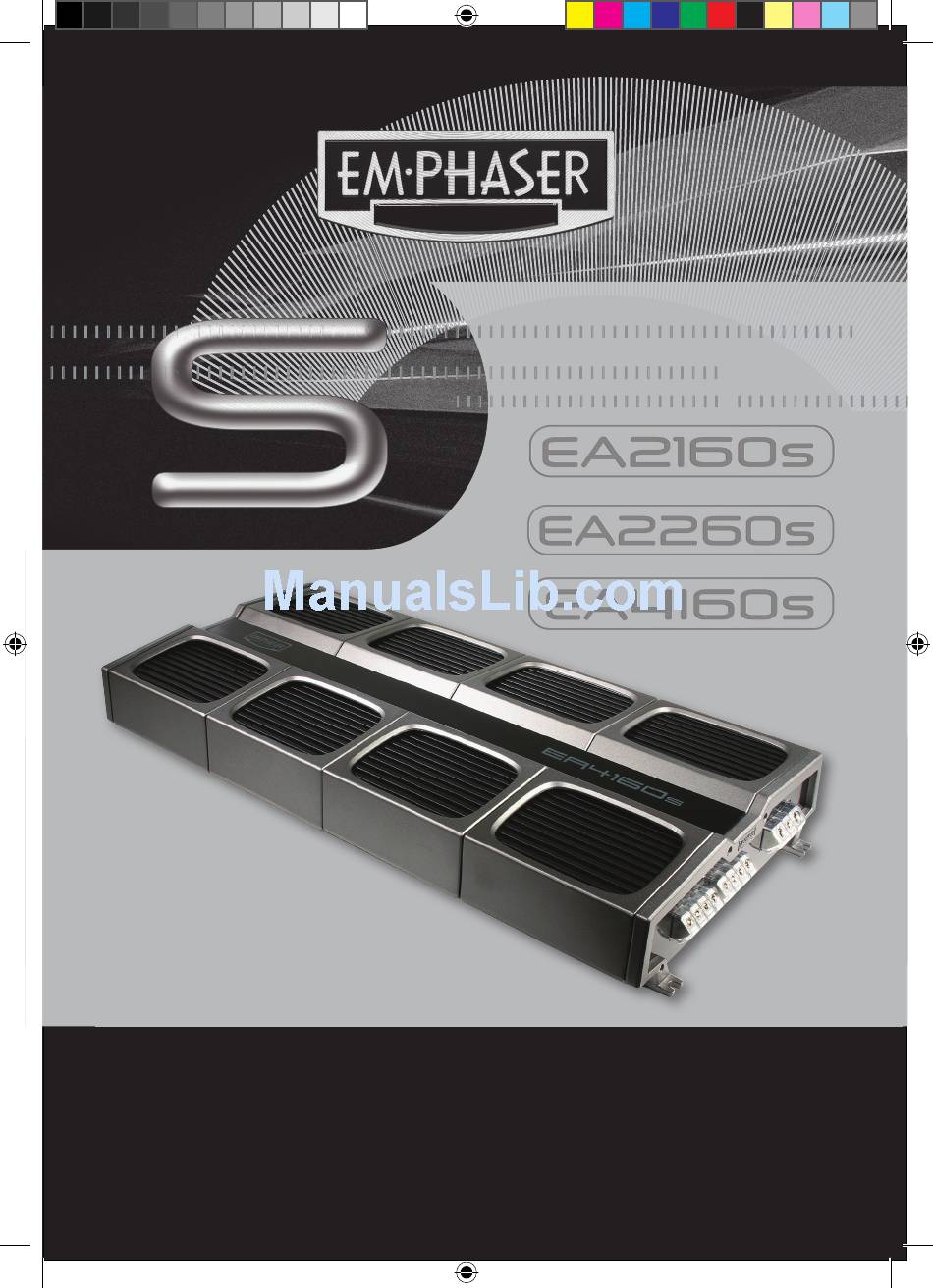

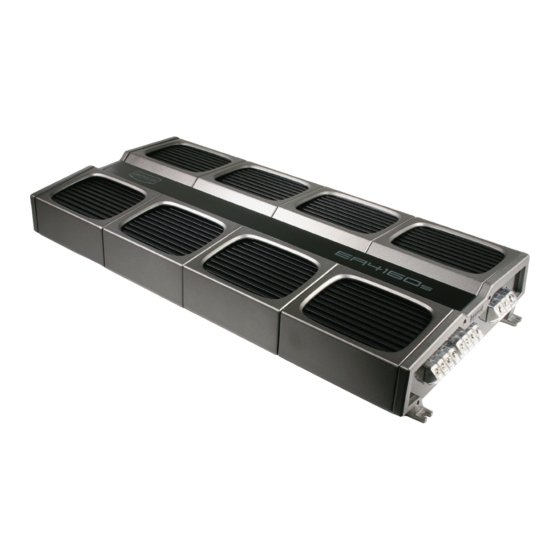

  • Page 1 2- AND 4-CHANNEL AMPLIFIERS INSTALLATION & OPERATING MANUAL EINbAU- & bEDIENUNGSANLEITUNG EA 2-4-5 CH Manual (EDF)_2008.indd 1 25.02.2008 17:29:48 Uhr...
  • Page 2: Table Of Contents

    CONTENTS 1. DESIGN FEATURES 2. CONNECTIONS & CONTROLS 6-11 2.1 FRONT & REAR PANEL CONNECTION & CONTROLS EA2160s/EA2260s 2.2 FRONT & REAR PANEL CONNECTIONS & CONTROLS EA4160s 2.3 SPEAKER IMPEDANCE & POWER WIRE INFO 3. AMPLIFIER MOUNTING 4. WIRE ROUTING 4.1 MAIN POWER WIRES...
  • Page 3 INHALT 1. TECHNISCHER AUFBAU/MERKMALE 2. EINGÄNGE & FUNKTIONEN 16-20 2.1 EINGÄNGE & FUNKTIONEN EA2160s/EA2260s 16-17 2.2 EINGÄNGE & FUNKTIONEN EA4160s 18-19 2.3 LAUTSPRECHER-IMPEDANZ & POWERKABEL INFO 3. MONTAGE DES VERSTÄRKERS 4. VERKABELUNG / ELEKTRISCHER ANSCHLUSS 4.1 HAUPT-STROMKABEL 4.2 CINCH- & REMOTE KABEL 4.3 LAUTSPRECHERKABEL...
  • Page 4: Important Notice

    To maximize the performance of this amplifier and your car audio system install, we recommend that you acquaint yourself thoroughly with all capabilities and features of the EMPHASER amplifier model you have chosen. Please read this manual carefully, before attempting the installation of this amplifier.
  • Page 5: Design Features

    1. DESIGN FEATURES ■ CAR AUDIO AMPLIFIER: This EMPHASER amplifier allows the crossover controlled amplification of satellite speaker systems, kickwoofers and subwoofer systems ■ INTEGRATED ELECTRONIC CROSSOVER: The internal crossover section features indepen- dently selectable highpass or bandpass filtering, as well as fulllrange loop through. All x-overs feature crossover slope rates of 12/24 dB/octave for high- and low-pass sections.
  • Page 6: Connections & Controls

    2. CONNECTIONS & CONTROLS 2.1 FRONT PANEL EA2160s/EA2260s POWER LED Green “operation” LED, signaling correct operation of the amplifier. INPUT GAIN CONTROL Input level gain control potentiometer – to match the output voltage of the headunit’s RCA line-outs to the amplifier input section.
  • Page 7: Connections & Controls

    2. CONNECTIONS & CONTROLS 2.1 REAR PANEL EA2160s/EA2260s “OUTPUT TERMINALS” Loudspeaker output terminal to connect the loudspeakers. “GND” POWER INPUT TERMINAL Moulded direct power input terminals to connect the amplifier to the negative or ground wire of the vehicle. “REMOTE” INPUT TERMINAL Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of the head unit.
  • Page 8: Front & Rear Panel Connections & Controls Ea4160S

    2. CONNECTIONS & CONTROLS 2.2 FRONT PANEL EA4160s POWER LED Green „operation“ LED, signaling correct operation of the amplifier. INPUT GAIN CONTROL 1/2-CH Input level control for 1/2-CH amplifier section – to match the output voltage of the head- unit‘s RCA line-outs to the amplifier input section. HIGH PASS FREQUENCy CONTROL 1/2-CH Control for the frequency adjustment of the 12dB/oct.
  • Page 9 EA4160s 9 bl 2. CONNECTIONS & CONTROLS 2.2 REAR PANEL EA4160s SPEAKER OUTPUT TERMINALS 1/2-CH and 3/4-CH Output terminals to connect the speakers in stereo or bridged mode to the amplifier. „GND“ POWER INPUT TERMINAL Terminal to connect the amplifier to the negative or ground pole of the car battery. „REM“...
  • Page 10: Speaker Impedance & Power Wire Info

    Before you proceed to install this EMPHASER amplifier, it is recommended to map out the complete system and the respective wiring required. Consider all additional electrical requirements and accesso- ries, such as power cables, interconnect cables etc., to complete the install.
  • Page 11: Wire Routing

    4. WIRE ROUTING 4.1 MAIN POWER WIRES Run the positive main power cable („+12 V“) directly from the positive terminal of the car battery to the amplifier. For protection of your car audio system against electrical fire hazards, resulting from a short-circuit of the main power cable to chassis ground a main fuse holder must be inserted within the first 30 cm of the positive main power cable.
  • Page 12: Crossover Adjustments

    5. CROSSOVER ADjUSTMENTS 5.1 SELECTING THE OPERATION MODE You must select and set the appropriate operation mode before you can attempt any of the crossover frequency adjustments. This setting depends on the speaker system connected to the amplifier. Select the appropriate operation mode as follows: ➡...
  • Page 13: Subsonic/High Pass Crossover Adjustment

    5.4 SUBSONIC/HIGH PASS CROSSOVER FREQUENCY ADJUSTMENT When driving a subwoofer in bandpass (“BPF”) operation mode, you should also adjust the subsonic highpass frequency. This is done by adjusting the “HPF” potentiometer. This setting depends the size and the power handling of the installed subwoofer system. The higher the subsonic crossover fre- quency is set, the higher the mechanical power handling of the connected subwoofer system will be.
  • Page 14 Herzlichen Glückwunsch! Wir danken Ihnen, dass Sie sich zum Kauf dieses EMPHASER Verstärkers entschieden haben. Damit Sie die Wiedergabequalität und die Leistungsfähigkeit Ihres Verstärkers voll ausschöpfen kön- nen, möchten wir Sie bitten, sich eingehend mit den Möglichkeiten und technischen Features dieses Verstärkers vertraut zu machen.
  • Page 15: Technischer Aufbau/Merkmale

    1. TECHNISCHER AUFbAU/MERKMALE ■ CAR AUDIO VERSTäRKER: Dieser Verstärker dient zur Realisierung eines einbaufreundlichen klangstarken und sehr leistungsfähigen Car Audio Systems ■ SUbWOOFERPEGELREGELUNG übER ExTERNE KAbELFERNbEDIENUNG: Die im Fond des Fahrzeuges montierbare kleine Fernbedienung ermöglicht die bequeme Anpassung der Lautstärke des Subwoofers vom Fahrersitz (ausgenommen EA4160s) ■...
  • Page 16: Eingänge & Funktionen

    2. EINGäNGE & FUNKTIONEN 2.1 FRONT PANEL EA2160s/EA2260s POWER LED Grüne “Power” LED; signalisiert den normalen Betriebszustand der Endstufe im eingeschalteten Zustand. REGLER EINGANGSEMPFINDLICHKEIT Eingangsempfindlichkeits-Poti für die Anpassung an die Ausgangsspannung des Steuergerätes. REGLER SUbSONIC TRENNFREQUENz Regler zum Einstellen der Hochpass-Trennfrequenz an der integrierten elektronischen Frequenzweiche.
  • Page 17 2. EINGäNGE & FUNKTIONEN 2.1 REAR PANEL EA2160s/EA2260s LAUTSPRECHER AUSGANGS-TERMINAL Lautsprecheranschlussterminal für den Anschluss von Lautsprechern. „GND“ POWER INPUT TERMINAL Direkt-Eingansterminal für den Anschluss an die Chassis-Masse des Kfz’s, oder den Minuspol der Fahrzeugbatterie. „REM“ INPUT TERMINAL Eingangsterminal für den Anschluss des Remote-Kabels des Amp- oder Antenna-Remote Ausgangs des Steuergerätes.
  • Page 18: Eingänge & Funktionen Ea4160S

    2. EINGäNGE & FUNKTIONEN 2.2 FRONT PANEL EA4160s POWER LED Grüne “Power” LED; signalisiert den normalen Betriebszustand der Endstufe im eingeschalteten Zustand. REGLER EINGANGSEMPFINDLICHKEIT 1/2-CH Eingangsempfindlichkeitsregler der Kanäle 1/2-CH, zur Anpassung an die Ausgangsspannung des Steuergerätes. REGLER HOCHPASS TRENNFREQUENz 1/2-CH Regler zum Einstellen der Hochpass-Trennfrequenz an der integrierten elektronischen Frequenzweiche der Kanäle 1/2-CH.
  • Page 19 EA4160s 9 bl 2. EINGäNGE & FUNKTIONEN 2.2 REAR PANEL EA4160s LAUTSPRECHER AUSGANGS-TERMINAL Lautsprecheranschlussterminal für den Anschluss von Lautsprechern. „GND“ POWER INPUT TERMINAL Direkt-Eingansterminal für den Anschluss an die Chassis-Masse des Kfz’s, oder den Minuspol der Fahrzeugbatterie. „REM“ INPUT TERMINAL Eingangsterminal für den Anschluss des Remote-Kabels des Amp- oder Antenna-Remote Ausgangs des Steuergerätes.
  • Page 20: Lautsprecher-Impedanz & Powerkabel Info

    ➡ ➡ HAUPTSTROMKAbEL EMPHASER empfiehlt einen minimalen Kabelquerschnitt (bei einer Länge von 5m) von 20–50mm² für das +12V und das Massekabel. Falls die Endstufe an sehr niederohmigen Lasten oder im Brückenbetrieb arbeiten muss – oder eine weitere Endstufe im Anlagenkonzept integriert ist – empfiehlt sich der Einsatz von 50 mm²...
  • Page 21: Montage Des Verstärkers

    3. MONTAGE DES VERSTäRKERS ACHTUNG! Entfernen Sie zu Ihrer eigenen Sicherheit erst das Massekabel von der batterie! Bei allen nachfolgend beschriebenen Installationsschritten muss der Stromkreis des Kraftfahrzeugs unterbrochen sein! Erst nach Abschluss aller Installationsarbeiten wird über das Massekabel der Stromkreis wieder geschlossen. Bevor Sie mit der Montage dieses Verstärkers beginnen: Berücksichtigen Sie vorab die Kabelverläufe und den Installationsort des Car-Amps.
  • Page 22: Cinch- & Remote Kabel

    4.2 CINCH- & REMOTE KABEL Verlegen Sie das oder die Cinchkabel, das Fernbedienungskabel für die Pegel-Regelung von den Kanälen die den Subwoofer treiben und das Remote-Kabel vom Steuergerät zur Endstufe. Diese Kabel sollten unbedingt räumlich getrennt von der Stromzuführung des Verstärkers eingezogen werden.
  • Page 23: Hochpass Trennfrequenz

    5.2 HOCHPASS TRENNFREQUENZ Mit der Einstellung der Trennfrequenz des Hochpasses („HPF“) soll eine elektrische und mechanische Entlastung der verwendeten Koax oder Komponentensysteme erfolgen. Je nach der vorhandenen Membranfläche und Nennbelastbarkeit der verwendeten (Satelliten)-Systeme empfiehlt sich eine Trennfrequenz im Bereich zwischen 50 bis 150Hz. Diese Einstellung kann über das „HPF“ Poti vorgenommen werden.
  • Page 24: Anpassung Der Eingangsempfindlichkeit

    5.5 ANPASSUNG DER EINGANGSEMPFINDLICHKEIT Die korrekte Eingangsempfindlichkeitseinstellung ist wichtig für die Ausnutzung des optimalen Dynamikspielraumes Ihrer Steuergerät/Verstärker/Lautsprecherkombination. Diese Empfindlichkeits- einstellung beeinflusst das Grundrauschen ebenso wie die verzerrungsfrei erzielbare Maximal- lautstärke. ACHTUNG! Bevor Sie mit der Anpassung der Eingangsempfindlichkeiten anfangen müssen zu- allererst alle Klangregler am Headunit, sowie auch der Fader/Balance in die Mittel (Neutral) Position gebracht werden.
  • Page 25: Technical Specifications

    6. TECHNICAL SPECIFICATIONS/TECHNISCHE SPEzIFIKATIONEN EA2160s 2-CHANNEL AMPLIFIER 2-KANAL VERSTÄRKER 160W x 2 @ 4 ohms (< 1.0% THD / 13.8V) 160W x 2 @ 4 Ohm (< 1.0% THD / 13.8V) 260W x 2 @ 2 ohms (< 1.0% THD / 13.8V) 260W x 2 @ 2 Ohm (<...
  • Page 26: Limited Warranty

    Should your EMPHASER product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country. Please do not send any product to EMPHASER Inc. U.S.A. Should you have difficulty in finding an authorized EMPHASER service center, details are available from your local distributor.
  • Page 27: Warranty Card

    Installation date: Inspected and approved by: EMPHASER Inc., Wyoming, Michigan, U.S.A. Exclusive distributor for Europe & Asia ACR, Brändli & Vögeli AG, Bohrturmweg 1, CH-5330 Bad Zurzach, Switzerland Phone: (+41) (0)56 269 64 64, Fax: (+41) (0)56 269 64 65, mail@acr.eu, www.acr.eu EA 2-4-5 CH Manual (EDF)_2008.indd 27...
  • Page 28 Emphaser Inc., Wyoming, Michigan, U.S.A. EA 2-4-5 CH Manual (EDF)_2008.indd 28 25.02.2008 17:29:55 Uhr...
