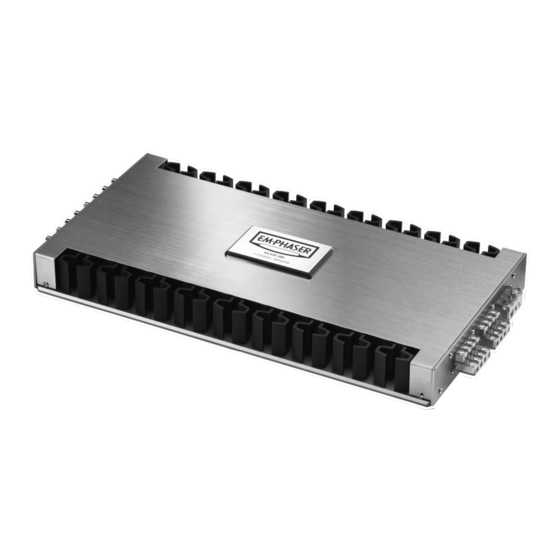

To maximize the performance of this amplifier and your car audio system install, we recommend that you acquaint yourself thoroughly with all capabilities and features of this EMPHASER amplifier unit. Please read this manual carefully, before attempting the installation of this amplifier. Please retain this manual and your purchasing / installation receipts for future reference.
MOS-FET’s for power supply and output stages, to guarantee excellent sonic per- formance and very high power output. ■ 2 OHM LOAD STABILITY: This EMPHASER amplifier works stable and reliable into 2 ohms impedance loads. Due to the high damping factor, full control over the connected speaker system(s) is guaranteed ■...
2.1 FRONT PANEL CONNECTIONS & CONTROLS EA650-200 7-CHANNEL-AMPLIFIER RCA INPUT 1-CH Low-level stereo RCA signal input for connection with head-unit. RCA INPUT 2-CH Low-level stereo RCA signal input for connection with head-unit. RCA INPUT 3-CH Low-level stereo RCA signal input for connection with head-unit.
EA650-200 subwoofer channel 2 ohms / satellite channels 2 ohms stereo or 4 ohms bridged Note: EMPHASER laboratory recommends a minimum main power cable cross- section (5m total length) of 20 to 25 mm , for both the positive and the ground wires.
Before you proceed to install this EMPHASER amplifier, it is recommended to map out the complete audio system and the respective wiring required. Consider all additional electrical requirements and accessories, such as power cables, interconnect cables etc., to complete this install.
4.2 RCA & REMOTE WIRES Carefully run the audio signal interconnects and the remote wire and from the head-unit to the ampli- fier. As mentioned before, the audio signal cables should always be routed completely separate from the power cables. Connect the remote (turn on/turn off) lead to the respective input terminal of the amplifier and to the remote output of your head-unit.
Page 10
Herzlichen Glückwunsch! Wir danken Ihnen, dass Sie sich zum Kauf dieses EMPHASER Verstärkers entschieden haben. Damit Sie die Wiedergabequalität und die Leistungsfähigkeit Ihres Verstärkers voll ausschöpfen kön- nen, möchten wir Sie bitten, sich eingehend mit den Möglichkeiten und technischen Features dieses Verstärkers vertraut zu machen.
1. TECHNISCHER AUFBAU / MERKMALE ■ CAR AUDIO VERSTÄRKER: Dieser Verstärker dient zur Realisierung eines einbaufreundlichen klangstarken und sehr leistungsfähigen Car Audio Systems mit sieben Kanälen ■ FULL MOS-FET SCHALTUNG: Eine FULL-MOSFET Schaltung sorgt für hohe Musikalität und sehr hohe Ausgangsleitung ■...
2.1. EINGÄNGE & FUNKTIONEN AM FRONT PANEL EA650-200 7-KANAL VERSTÄRKER CINCH EINGANG 1-CH Cinch Eingangsbuchse 1-CH für den Anschluss an die Cinch Ausgänge des Steuergerätes. CINCH EINGANG 2-CH Cinch Eingangsbuchse 2-CH für den Anschluss an die Cinch Ausgänge des Steuergerätes.
Page 13
GAIN 1/2CH 3/4CH 5/6CH 2.2 EINGÄNGE & FUNKTIONEN AM REAR PANEL EA650-200 7-KANAL VERSTÄRKER 14 LAUTSPRECHER AUSGANGS-TERMINAL 1/2-CH Lautsprecheranschlussterminal für den Anschluss der Lautsprecher an die Kanäle 1/2-CH der Verstärkers. 15 LAUTSPRECHER AUSGANGS-TERMINAL 3/4-CH Lautsprecheranschlussterminal für den Anschluss der Lautsprecher an die Kanäle 3/4-CH der Verstärkers.
➡ HAUPTSTROMKABEL EMPHASER empfiehlt einen minimalen Kabelquerschnitt (bei einer Länge von 5m) von 20 – 25 mm für das +12V und das Massekabel. Falls die Endstufe an sehr niederohmigen Lasten oder im Brückenbetrieb arbeiten muss – oder eine weitere Endstufe im Anlagenkonzept integriert ist - emp- fiehlt sich der Einsatz von 35 mm Haupt- und Masse Stromkabeln.
3. MONTAGE DES VERSTÄRKERS ACHTUNG! Entfernen Sie zu Ihrer eigenen Sicherheit erst das Pluskabel vom Pluspol der Batterie! Bei allen nachfolgend beschriebenen Installationsschritten muss der Stromkreis des Kraftfahrzeugs unterbrochen sein! Erst nach Abschluss aller Installationsarbeiten wird über das Pluskabel der Stromkreis wieder geschlossen.
4. VERKABELUNG / ELEKTRISCHER ANSCHLUSS 4.1 HAUPT-STROMKABEL Verlegen Sie nun das Pluskabel direkt von der Batterie zum Verstärker. Innerhalb der ersten 30 cm nach dem Pluspolklemmenabgriff muss eine Hauptsicherung angebracht werden (Absicherung des Pluskabels gegen Kurzschluss auf Fahrzeug-Masse und dadurch resultie- rendem Kabelbrand!) Verwenden Sie eine dem Stromkabelquerschnitt entsprechende Haupt-Sicherung.
5. ANPASSUNG DER EINGANGSEMPFINDLICHKEIT Die korrekte Eingangsempfindlichkeitseinstellung ist wichtig für die Ausnutzung des optimalen Dynamikspielraumes Ihrer Steuergerät / Verstärker / Lautsprecherkombination. Diese Empfindlichkeitseinstellung beeinflusst das Grundrauschen ebenso wie die verzerrungsfrei erzielbare Maximallautstärke. ACHTUNG! Bevor Sie mit der Anpassung der Eingangsempfindlichkeiten anfangen müssen zuallererst alle Klangregler, sowie auch der Fader/Balance in die Mittel (Neutral) Position gebracht werden.
Should your EMPHASER product require warranty service, please return it to the retailer from whom it was purchased or the distributor in your country. Please do not send any product to EMPHASER Inc. U.S.A. Should you have difficulty in finding an authorized EMPHASER service center, details are available from your local distributor.
Your name: Your address: City: State: ZIP or Postal Code: Country: Your phone number: Dealer’s address & stamp Installation Approval ❏ ❏ Installed by Self-installed authorized dealer by customer Installation date: Inspected and approved by: EMPHASER Inc., Wyoming, Michigan, U.S.A.
