2. WLAN Activity LED
3. WAN ACT LED
4. WAN 10/100M LED
5. LAN ACT LED
6. LAN 10/100M LED

1.5 Rear Panel Description

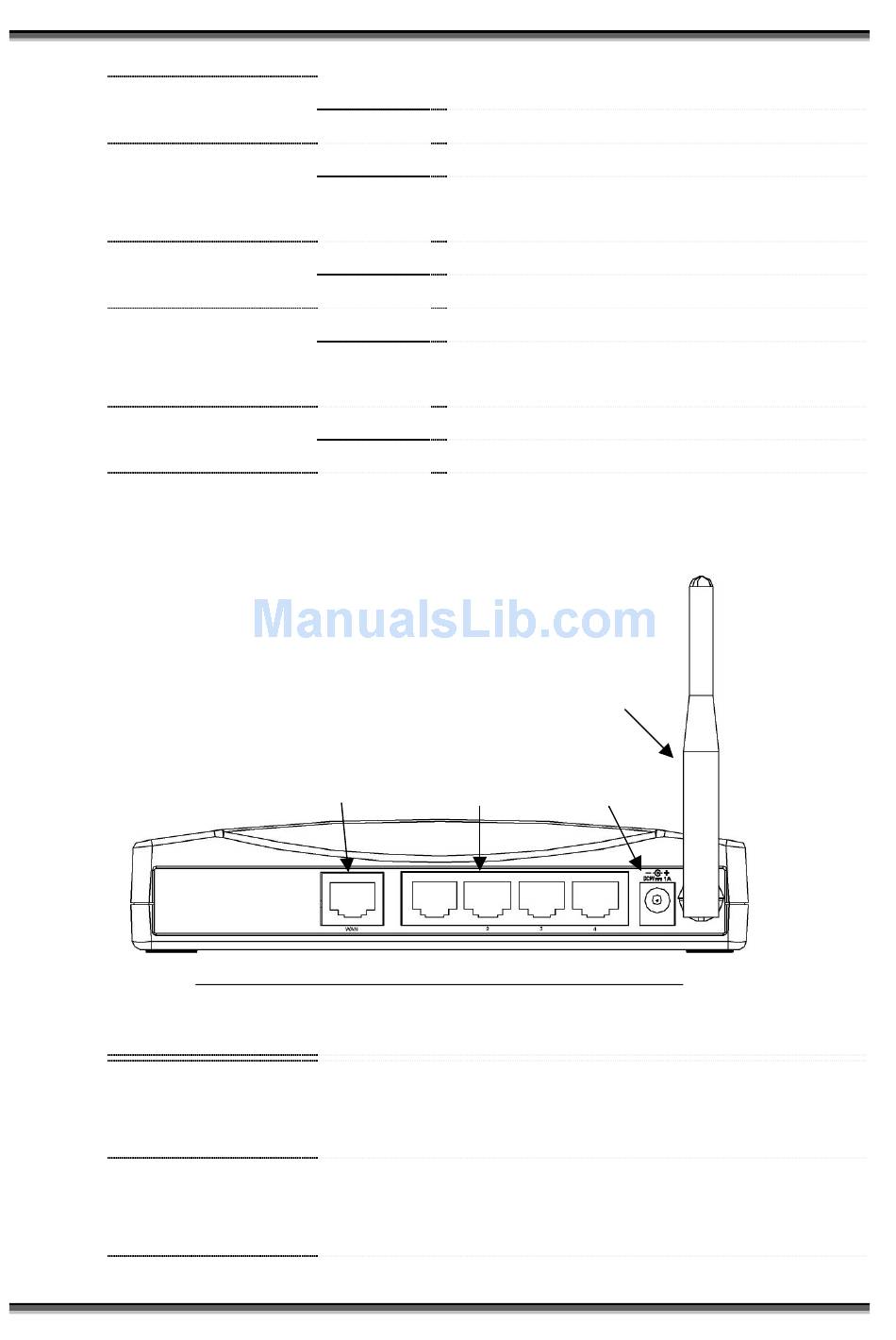

Figure 2 Acer WLAN 11b Broadband Router Rear Panel
Interfaces
1. WAN
2. LAN
Flashing
Data is transmitting or receiving on the antenna.
Off
No data is transmitting or receiving on the antenna.
Flashing
Data is transmitting or receiving on the WAN interface.
Off
No data is transmitting or receiving on the WAN
interface.
On
Connection speed is 100Mbps on WAN interface.
Off
Connection speed is 10Mbps on WAN interface.
Flashing
Data is transmitting or receiving on the LAN interface.
Off
No data is transmitting or receiving on the LAN
interface.
On
Connection speed is 100Mbps on LAN interface.
Off
Connection speed is 10Mbps on LAN interface.
WAN
LAN
Description
The RJ-45 socket allows WAN connection through a Category 5 cable.
Support auto-sensing on 10/100M speed and half/ full duplex; comply with
IEEE 802.3/ 802.3u respectively.
The RJ-45 sockets allow LAN connection through Category 5 cables.
Support auto-sensing on 10/100M speed and half/ full duplex; comply with
IEEE 802.3/ 802.3u respectively.
3
Antenna
Power
