NOTE
Wall screws included with this product are complimentary and may not be adequate for all mounting surfaces. Consult with a professional installer or hardware store for proper mounting screws and anchors.
Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on the viewing surface will not cause the casing to become loose or fall. Included mounting screws are complimentary and may not be appropriate for all mounting surfaces. Use appropriate anchors to safely secure the screen to the mounting surface or consult with a professional installer.
Hardware and Controls Accessories List | |||
Please make sure all parts listed below are included before proceeding with the installation. | |||
A. Screw/Anchor x 4 | B. Washer x 4 | B. Snap link x 4 | C. M6.5 eyebolt screw x 4 |
![]() | ![]() | ![]() | ![]() |
For installation assistance, please consult a professional Installer. Elite Screens is not liable for faulty installations.
A. Wall Mount (flushed) | |
Step 1: Measure and mark the (A) distance between the two keyholes on each end cap.![]() | Step 2: Drill a hole for each screw hole on the marked areas. Insert a dry-wall anchor into the wall. Then screw the M5x70 Screw in each dry-wall anchor and leave about 1/8" of an inch.![]() |
Step 3: Hang the screen by aligning the end cap keyholes to the M5x70 screws.![]() Side View | Step 4: Make sure the screen is leveled to complete the installation.![]() |
B. Ceiling Mount (suspended) | |
Step 1: Measure and mark the distance (A) between the top suspended hole points on the top of the case. Then measure and mark the distance (B) between each suspended hole point.![]() | Step 2: Drill a hole on all marked areas and insert the M6.5 eyebolt screw into the hole, then secure it in place with a mallet/hammer.![]() |
Step 3: Attach the snap link through the eyebolt and connect on the suspended hole points.![]() | Step 4: Make sure the screen is leveled to complete the installation.![]() |
Electric Current: Depending upon region, your Elite Screen will operate on 100V, 110V, or 220V voltage.

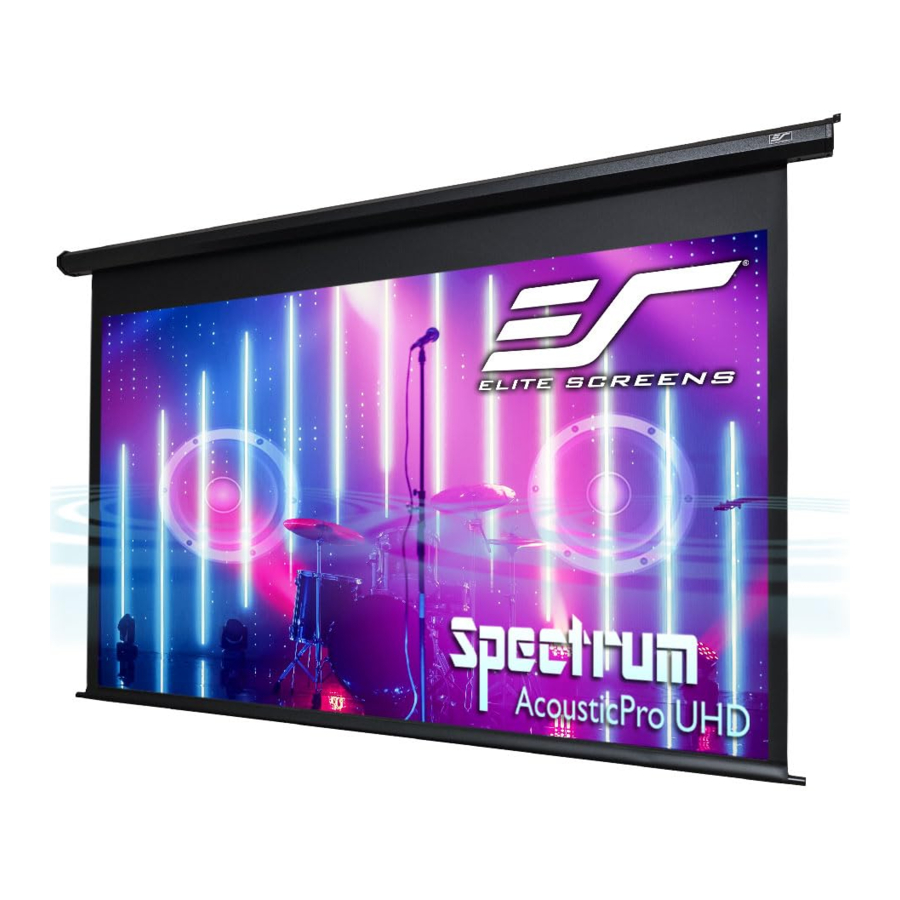

Accessories included for Spectrum Series | |||||
A. IR remote x 1![]() | B. 3-way wall switch x 1![]() | C. 12-volt trigger cable x 1![]() | D. IR "Eye" Receiver x 1![]() | D. Bubble level x 1![]() | E. AAA batteries x 2![]() |
| ![]() |
|
|
For more information, technical support or your local Elite Screens contact, please visit www.elitescreens.com
At first, the screen material may have a series of noticeable horizontal lines on its surface. These are known as memory lines. Memory lines are caused when the pliable projection material is rolled up and stored for the duration between its production and sale. This is both a normal and correctable phenomenon. For non-tensioned screens, you may also notice curling along the edges of the material. This is mainly due to environments in cold temperatures. Please try the following to alleviate the memory lines and side curls on the material. After installation, leave the screen in the down position for a few days in a warm room environment (above 75 degrees) and then commence regular (up/down) usage. This allows the material to stretch out and cure itself. After a few days, the lines should vanish and the edge curling will alleviate and will neither return nor affect the projected image during the years of its use.
Projection Screens from any maker are not designed for use as a window curtain and should never be exposed to direct sunlight. Prolonged exposure to solar radiation will destroy synthetic materials and such damage is not covered by our standard warranty.
See examples below.
Using a short throw projector on a non-tensioned type screen will result in image distortion as the slightest wave on the viewing surface will become more evident.
For short throw projectors, Elite Screens recommends the use of a motorized tab-tensioned, fixed frame or whiteboard projection screen.
Examples of undoctored projection images using a standard throw and short-throw projector Standard throw projected image shown below (waves are not visible)
This short throw projected image shown below, demonstrates how waves on the surface become more pronounced:
Actual Projection Images of same Elite Screens model with Standard Throw Projector (Model# ViewSonic Pro8300) vs. Short Throw Projector (Model # BenQ W710ST)
In order for the MaxWhite® 2 to maintain its projection qualities and optimum performance, please refer to the list below for proper maintenance and cleaning.
Make sure to read this user's guide and follow the procedures below.
The screen's Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller. Please be aware of this, as it will void your warranty with Elite Screens. Unapproved changes or modifications (except for cutting the power cord for hardwire installations) to this unit are prohibited and will void your warranty.
Do not use this unit under the following circumstances.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
