PROLiNK Hurricane 9300G Quick Installation Manual

Quick Installation Guide

PROLiNK Hurricane 9300G
Wireless 802.11g ADSL2+ Ethernet Modem Router
Revision 1.0.1
Minimum System Requirement
• Windows 98SE/ME/ 2000/XP
• MAC 9.x to 10.x
• 64 MB RAM for Win 98Se/ Me
• 128 MB RAM for Win 2K/ XP
• 64MB or 128MB RAM for Mac
• 4x speed CDROM Drive
• Ethernet Port (LAN Card)

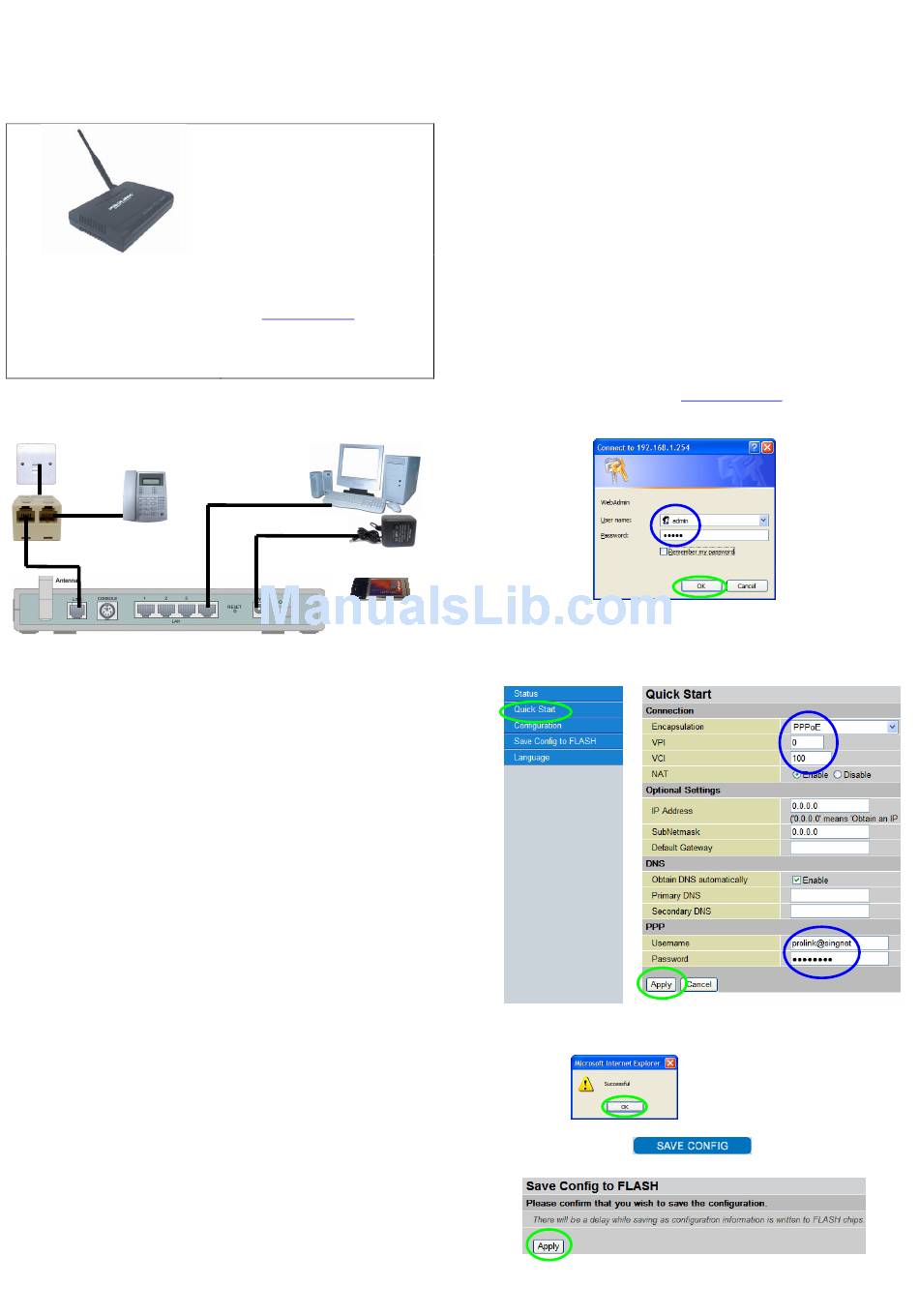

Step 1 Hardware Connection
Telephone
Wall
(optional)
phone socket
Micro
Filter
H9300G
1.1 Ensure that the PC/Notebook & ADSL Modem are power off
1.2 Connect one end of the RJ45 (Ethernet) cable to the LAN port of the
computer.
1.3 Connect the other end of RJ45 cable to the ADSL Modem.
1.4 Connect one end of RJ11 (Telephone) cable to the ADSL port (marked
Line) on the ADSL Modem.
1.5 Connect the other end of RJ11 cable into the phone socket, which has
the ADSL service activated, or the ADSL port of a Micro-filter whichever
is applicable
1.6 Connect power adapter to the power socket and switch-on H9300G
1.7 PROLiNK WG1000 Wireless LAN adapter may be installed into your
notebook computer when you reach Step 3b
1.8 Note: Console port is used for troubleshooting purposes by authorized
service personnel only
Step 2 Configuring the Computer / Notebook
Important! Please ensure that the PC's Network Card TCP/IP Properties and the
Internet Browser proxy are configured
It is also assumed that the computer/notebook has the Ethernet Network card
installed.
Note: In case you have static IP address and you need to use this value for other
network connections, make sure you write down the value first before changing
to Obtain an IP address automatically
2.1a Configure TCP/IP settings for Windows® 98SE / ME
• Windows Desktop > right click Network Neighborhood for Wins 98SE /
Network Places for Win ME > select Properties
• "Network" window > click the Configuration tab > scroll down to select
and double click TCP/IP > xxx where xxx refers to the model of the
Ethernet Network Card connected to the ADSL Ethernet Modem
• "TCP/IP Properties" window > select IP Address tab > select Obtain an IP
address automatically > click DNS Configuration tab > click Disable
DNS > click OK
Take note that the system prompts to Restart the Computer
Package Contents
1. 1 x ADSL2+ Ethernet Modem
802.11g Router
2. 1 x RJ-45 straight cable
3. 1 x RJ-11 DSL cable
4. 1 x Power Adaptor
5. 1 x CD
6. Quick Installation Guide
7. 1 x Antenna
Technical Support Information
Tel: (65) 6296 5455
9am—5:45pm (Mon--Fri)
9am--1pm (Sat)
Email: support@fida.com
Address:
Blk 105 Boon Keng Road #06-11/13
Kallang Basin Industrial Estate
Singapore 339776
Computer
Power
Adapter
Wireless LAN
adapter
2.1b Configure TCP/IP settings for Windows® 2000 / XP
• Windows Desktop > right click Network Places > select Properties
• "Network & Dial-Up Connection" window > click Local Area Connection
> scroll down to select and double click Internet Protocol TCP/IP
• "Internet Protocol (TCP/IP) Properties" > select Obtain an IP address
automatically > select Obtain DNS server address automatically > click
OK
2.2 Disable Proxy Settings
• Windows Desktop > right click Internet Explorer (IE) > click Properties
• "Internet Properties" window > click Connections tab > select Never dial a
connection > click LAN Settings...
• "Local Area Network (LAN) Settings" window > remove the tick for the
option for the Automatic configuration > remove the tick for option box for
Proxy server > click OK > click OK again to exit from "Internet Properties"
window
Step 3 Configuring H9300G
3a Through Ethernet LAN connection
a Start your Web Browser > key in
bar
b Key in the User name: admin
button
c Click on Quick Start > Select the Encapsulation and enter the VPI/VCI
settings of your ISP
• key in your Username: e.g.
(provided by your ISP)
• click Apply to complete the setup
(For reference - VPI/VCI: Singapore= 0/100, Malaysia= 0/35, Indonesia=1/33,
Sri Lanka= 8/35, Thailand= 1/32)
d Click OK
e Click on Save Config
f Click Apply
http://192.168.1.254 at the URL/Address
and Password: admin > click on the OK
prolink@singnet and Password: ********
