Instruction Manual

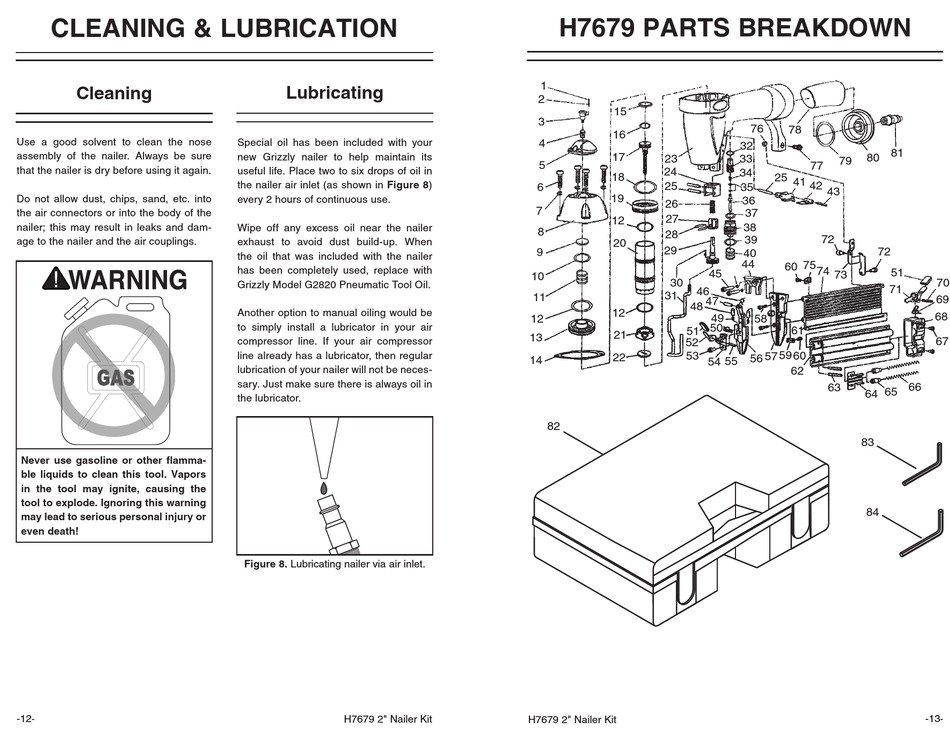

CLEANING & LUBRICATION
Cleaning
Use a good solvent to clean the nose
assembly of the nailer. Always be sure
that the nailer is dry before using it again.
Do not allow dust, chips, sand, etc. into
the air connectors or into the body of the
nailer; this may result in leaks and dam-
age to the nailer and the air couplings.
Never use gasoline or other flamma-
ble liquids to clean this tool. Vapors
in the tool may ignite, causing the
tool to explode. Ignoring this warning
may lead to serious personal injury or
even death!
-12
-
Lubricating
Special oil has been included with your
new Grizzly nailer to help maintain its
useful life. Place two to six drops of oil in
the nailer air inlet (as shown in Figure 8)
every 2 hours of continuous use.
Wipe off any excess oil near the nailer
exhaust to avoid dust build-up. When
the oil that was included with the nailer
has been completely used, replace with
Grizzly Model G2820 Pneumatic Tool Oil.
Another option to manual oiling would be
to simply install a lubricator in your air
compressor line. If your air compressor
line already has a lubricator, then regular
lubrication of your nailer will not be neces-
sary. Just make sure there is always oil in
the lubricator.
Figure 8. Lubricating nailer via air inlet.
H7679 2" Nailer Kit
H7679 PARTS BREAKDOWN
�
�
��
�
��
�
��
��
�
��
��
��
�
��
��
�
��
��
�
��
��
��
�
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
�� ��
��
H7679 2" Nailer Kit
��
��
��
�� ��
��
��
��
��
��
�� ��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
��
�� ��
�� ��
��
��
�� ��
��
��
��
��
��
��
��
-13
-
