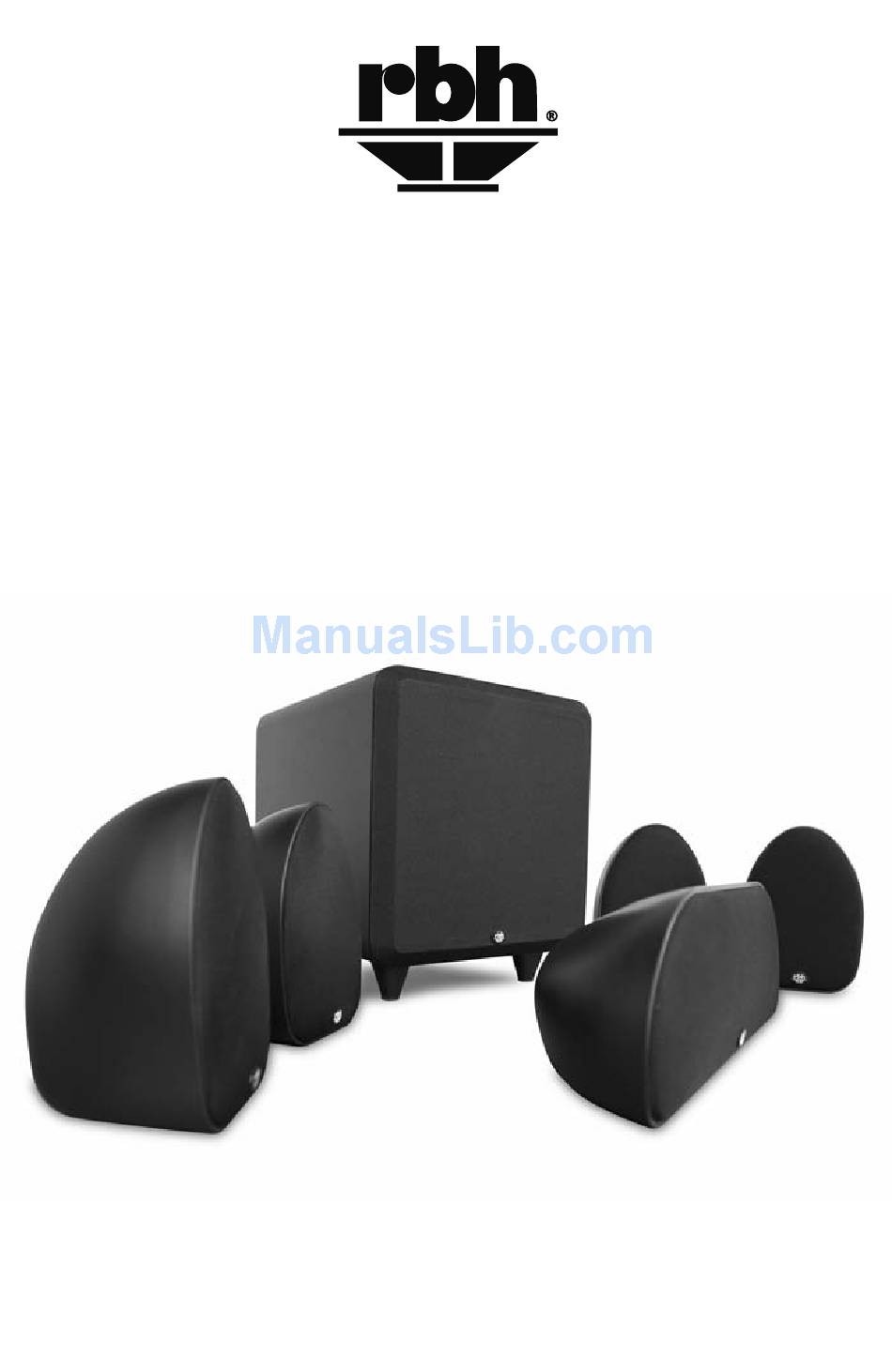

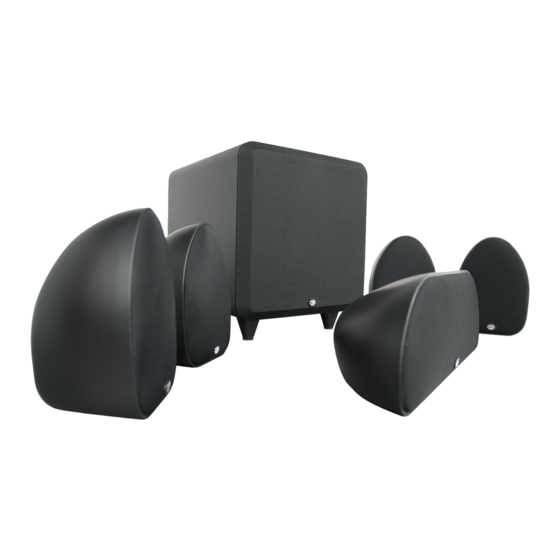

- Page 1 CTx Series pictured here with the S Series S-8 Powered Subwoofer CTx Series Compact Speakers O w n e r ’ s M a n u a l...
-
Page 2: Break-In Period
CTx Series Loudspeakers CTx Series loudspeakers shown here with partial grilles for a peek at the aluminum cone woofers and silk dome tweeters. Both the MM-4x and C-4x are available in white and black C-4x MM-4x Break-in Period Allow 10-15 hours of listening time to adequately break-in the RBH CTx Series speakers. - Page 3 The MM-4x and C-4x has metal keyhole mounts for direct wall mounting as well as female 1/4-inch 20 TPI threads in back and bottom (MM-4x only) for optional bracket mounting.
- Page 4 The MM-4x speakers should be placed on stands which places the tweeters close to ear height. Center Channel Speaker The C-4x Center Channel Speaker should be placed between both left and right main speakers. Often this positioning dictates placing the speaker either directly above or below a television monitor.
- Page 5 Room Setup Suggestions (continued) NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby Digital and DTS generally have a 5 speaker plus subwoofer requirement. Dolby Digital EX and DTS ES add a center rear speaker or Dolby TrueHD and DTS Master HD which is 7.1 format. Please consult your audio/video professional to determine which system is best for you and how many speakers you will require.
-
Page 6: Specifications
Specifications Model C-4x MM-4x Speaker Type: Center/LCR (Left, Center or Right) Bookshelf Frequency Response: 100Hz-20kHz ±3dB 100Hz-20kHz ±3dB Sensitivity 88db 85db (2.38V @ 1M) (2.38V @ 1M) Recommended Power: 10-100 Watts 20-100 Watts Woofer: (2) 4” (102mm) Aluminum Cone (1) 4” (102mm) Aluminum Cone Tweeter: (1) 1”... -
Page 7: Warranty
Warranty Your RBH Sound CTx Series speakers are covered by a limited warranty against defects in materials and workmanship for a period of 5 years from the original date of purchase.* This warranty is provided by the authorized RBH Sound dealer where the speaker was purchased. - Page 8 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 rbhsound.com It is RBH Sound policy to continuously incorporate improvements into our products; all specifications are subject to © change without notice. Copyright...
