IN-WALL SPEAKERS
I n s t a l l a t i o n a n d I n s t r u c t i o n M a n u a l

Advertisement

Table of Contents
loading

Related Manuals for RBH Sound TK-8

Summary of Contents for RBH Sound TK-8

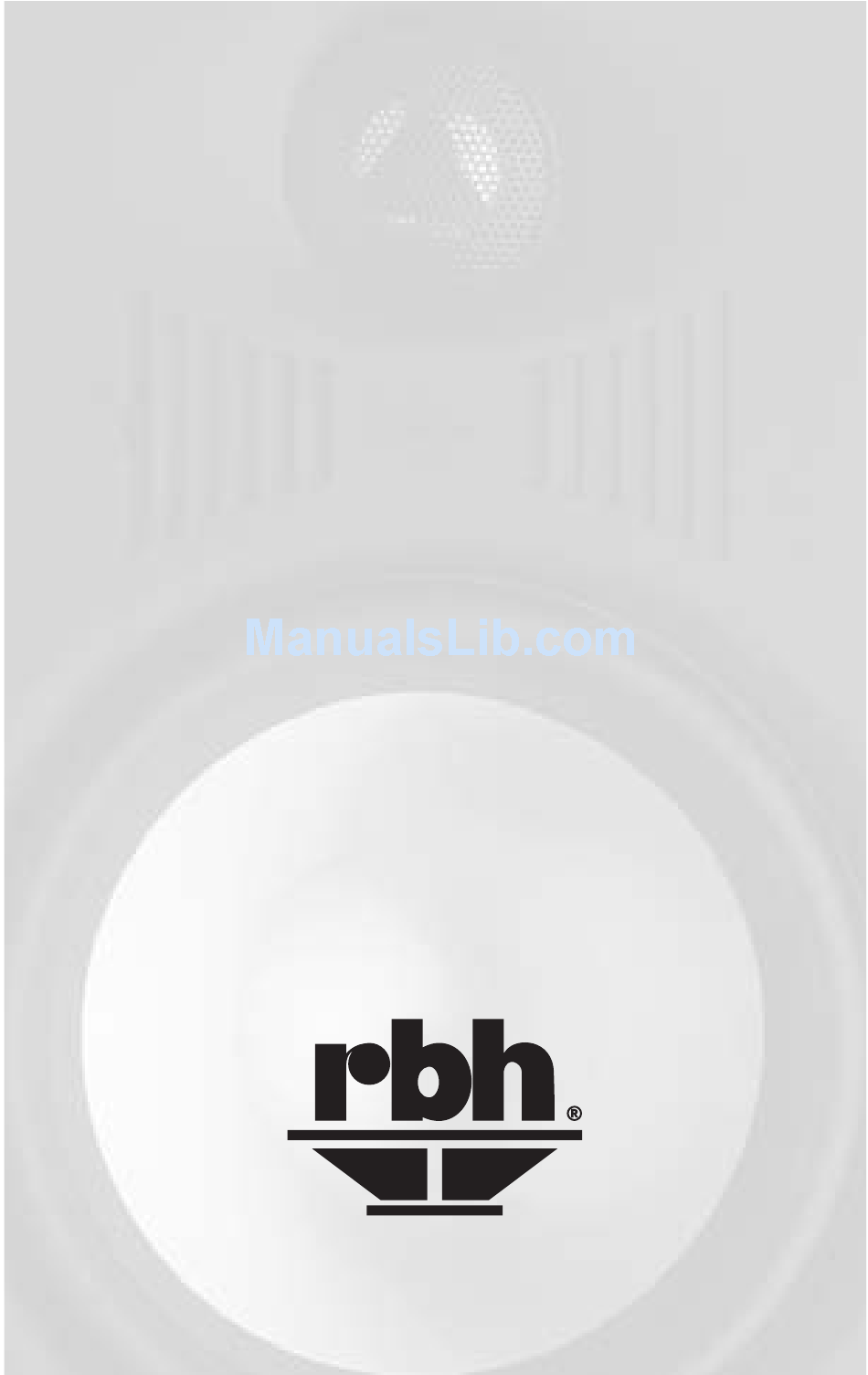

  • Page 1 IN-WALL SPEAKERS I n s t a l l a t i o n a n d I n s t r u c t i o n M a n u a l...

  • Page 3: Break-In Period

    Features All RBH Sound in-wall speakers feature a swing out dog leg mounting system with pre-started screws for fast and easy installation. Most RBH Sound in-wall speakers feature directional swivel tweeters to direct the sound to the main listening area.
  • Page 4 Room Setup Suggestions With nearly endless placement options, careful consideration for placement of the in-wall speakers needs to be considered, as installation requires cutting a hole in your wall or ceiling! When using speakers in home theater applications follow the guidelines illustrated below.

  • Page 5: Speaker Installation

    However, using an RBH Sound back can will most likely improve the tightness and control the bass response. RBH Sound in-wall speakers have also been designed to make installation as easy as possible.

  • Page 6: Finishing The Installation

    inside the circle inscribed by the template. Speaker Installation (continued) NOTE: The frame will overlap the cutting edge by about a 1/4-inch which will mask any minor cutting inaccuracies. 5. Confirm the speaker easily fits into the hole, without any gaps. Connecting the Speaker: 6.

  • Page 7: Speaker Accessories

    New Construction Blank Plates Brackets eliminate the time and need to locate and cut drywall before speaker installation. For more information on RBH Sound in-wall speaker accessories go to www.rbhsound.com. New Construction Bracket...

  • Page 8: Specifications

    Specifications Model: A-610 A-414 MC-414 Series: Architectural Architectural System Type: In-wall 2-way Speaker In-wall 2-way Speaker In-wall 2-way Speaker Frequency Response: 55Hz-20kHz (±3dB) 60Hz-20kHz (±3dB) 55Hz-20kHz (±3dB) Sensitivity: 90dB 90dB 91dB (2.83V @ 1 Meter) (2.83V @ 1 Meter) (2.83V @ 1 Meter) Recommended/Rated Power: 10-80 Watts 10-100 Watts...
  • Page 9 Specifications (continued) MC-6 MC-6DB MC-616 Model: Series: In-wall 2-way Speaker In-wall 2-way Surround Speaker In-wall 2-way Speaker System Type: 50Hz-20kHz (±3dB) 50Hz-20kHz (±3dB) 50Hz-20kHz (±3dB) Frequency Response: 86dB 88dB 91dB Sensitivity:* (2.83V @ 1 Meter) (2.83V @ 1 Meter) (2.83V @ 1 Meter) 15-120 Watts 15-120 Watts 15-180 Watts...
  • Page 10 Specifications (continued) MC-553 MCS-88 TK-6 Model: Series: In-wall/LCR Dual 2-way Speaker In-wall Subwoofer In-wall 2-way Speaker System Type: 55Hz-20kHz (±3dB) 35Hz-100Hz (±3dB) 50Hz-20kHz (±3dB) Frequency Response: 88dB Main, 87dB Center, and 90dB 88dB Sensitivity: (2.83V @ 1 Meter) (2.83V @ 1 Meter) 90dB Combined (2.83V @ 1 Meter) 15-150 Watts Main, 15-100...
  • Page 11 Discontinued Product–Specifications A-810 A-616 A-509 Model: Architectural Architectural Architectural Series: System Type: In-ceiling 2-way Speaker In-wall 2-way Speaker In-wall 2-way Speaker 50Hz-20kHz (±3dB) 55Hz-20kHz (±3dB) 60Hz-20kHz (±3dB) Frequency Response: 90dB 91dB 88dB Sensitivity: (2.83V @ 1 Meter) (2.83V @ 1 Meter) (2.83V @ 1 Meter) 10-110 Watts 50-160 Watts...
  • Page 12 Discontinued Product–Specifications (continued) Model: MC-884 MC-83 MC-8 Series: System Type: In-wall 3-way Speaker In-wall 3-way Speaker In-wall 2-way Speaker Frequency Response: 40Hz-20kHz (±3dB) 45Hz-20kHz (±3dB) 50Hz-20kHz (±3dB) Sensitivity: 89dB (2.83V @ 1 Meter) 86dB (2.83V @ 1 Meter) 86dB (2.83V @ 1 Meter) Recommended/Rated Power: 15-200 Watts 15-150 Watts...
  • Page 13 Discontinued Product–Specifications (continued) Model: TK-8 Series: System Type: In-wall Frequency Response: 50Hz-20kHz (±3dB) Sensitivity: 90dB (2.83V @ 1 Meter) Recommended/Rated Power: 15-110 Watts Woofer(s): (1) 8” (203mm) Fiberglass Matrix Cone Tweeter(s): (1) 1” (25mm) Aluminum Swivel Tweeter(s) Tweeter Protection: Crossover Frequency:...

  • Page 14: Troubleshooting

    25 years. materials and workmanship for a period of 25 years. This warranty is provided by the authorized RBH Sound dealer where the speaker was purchased. Warranty repair will be performed only when your purchase receipt is presented as proof of ownership and date of purchase.
  • Page 16 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2011 RBH Sound. All Rights Reserved. 07/12/2011 v1...
