- Page 1 Signature Series T S Y S T EM MODUL AR SPE AKER S O W N E R S M A N U A L R E D E F I N I N G P A R T N E R S H I P S W I T H S O U N D .
- Page 2 This page was left blank intentionally.
-
Page 3: Break-In Period

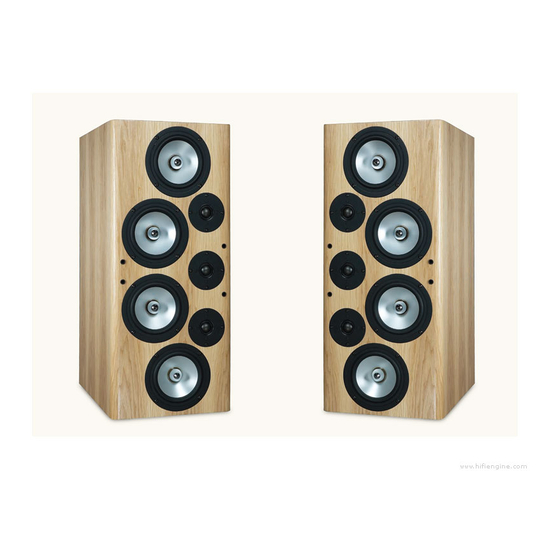

T-3/R Break-in Period Allow 10-15 hours of listening time to adequately break-in the RBH Sound Signature Series speaker systems. As the speakers break-in, the driver suspension will loosen. The result of break-in will be an increase in low frequency response, improved definition, and increased clarity and detail. - Page 4 Features At the heart of the RBH Sound T System speaker system are proprietary aluminum cone bass/woofers and midrange drivers. The unique aluminum cone material combines stiffness, low mass and self damping properties in a manner that allows virtually uncolored presentation of program material.
- Page 5 Attaching Speaker Wires When using a banana jack to attach speaker wires to the binding post terminals, insert the speaker wire into the banana jack. Next insert the banana jack into the hole provided in the top of the terminal. Repeat for the other speaker wire(s) as necessary.
-
Page 6: Setup Suggestions
Setup Suggestions The T System is a modular speaker system designed to be used individually or with the RBH Sound 1010-SEN or 1010-SEN/R subwoofer. This combination with the subwoofer provides full-range reproduction of the program material. There are four basic models or configurations within the T System: T-1 or T-1/R: The T-1 or T-1/R is the main speaker section that reproduces the high and mid-range frequencies. - Page 7 Often this positioning dictates placing the speaker either directly above or below a television monitor or screen. If using an RBH Sound Signature Series speaker, the speaker may be used in a horizontal (lying down) or vertical position. If using a T-1 or T-1/R as the center channel positioned below or equal in height of the Main T-1s, the tweeters must face up as shown in the illustration below.
- Page 8 Connection of the subwoofer is done by speaker wire, not by audio interconnect. When configured as a T-2P, T-2P/R, T-3P or T-3P/R, an RBH Sound SA-400 subwoofer amplifier is used to power each subwoofer. The SA-400 is a mono block subwoofer amplifier. This...
- Page 9 Setup Suggestions (continued) OPTIONAL T-3 SUB NOTE: There are several different surround formats available. Dolby Pro-Logic, Pro-Logic II, Dolby Digital and DTS generally have a 5 speaker plus subwoofer requirement. Dolby Digital EX and DTS ES add a center rear speaker.
- Page 10 Clamping Bracket The clamping brackets provided with the T-2, T-2/R, T-3 or T-3/R systems, consists of (4) end pieces, (4) hex head bolts and (2) round rods. To install, attach an end piece to each end of the rod with the screws and place in between the two cabi- nets from side to side (not front to back).
-
Page 11: Specifications
Specifications Model Speaker Type Modular Modular Tower Frequency Response: 45Hz – 20kHz ±3dB 20Hz – 20kHz ±3dB Sensitivity: 91dB (2.83V @ 1M) 92dB (2.83V @ 1M) Recommended Power: 100-500 Watts 100-1000 Watts* Woofer: (4) 6½” (165mm) Aluminum (2) 10” (254mm) Aluminum (4) 6½”... - Page 12 Specifications Model T-1/R T-2/R Speaker Type Modular Modular Tower Frequency Response: 45Hz – 20kHz ±3dB 20Hz – 20kHz ±3dB Sensitivity: 91dB (2.83V @ 1M) 92dB (2.83V @ 1M) Recommended Power: 100-500 Watts 300-1000 Watts* Woofer: (4) 6½” (165mm) Reference Aluminum (2) 10”...
-
Page 13: Troubleshooting
Warranty Your RBH Sound T System speaker is covered by a limited warranty against defects in materials and workmanship for a period of (5) five years, and subwoofer amplifiers (1) one year from the original date of purchase. This warranty is provided by the authorized RBH Sound dealer where the speaker was purchased. - Page 14 This page was intentionally left blank...
- Page 15 This page was intentionally left blank...
- Page 16 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into products; all specifications are subject to change without notice. Copyright © 2008 RBH Sound. All Rights Reserved.
