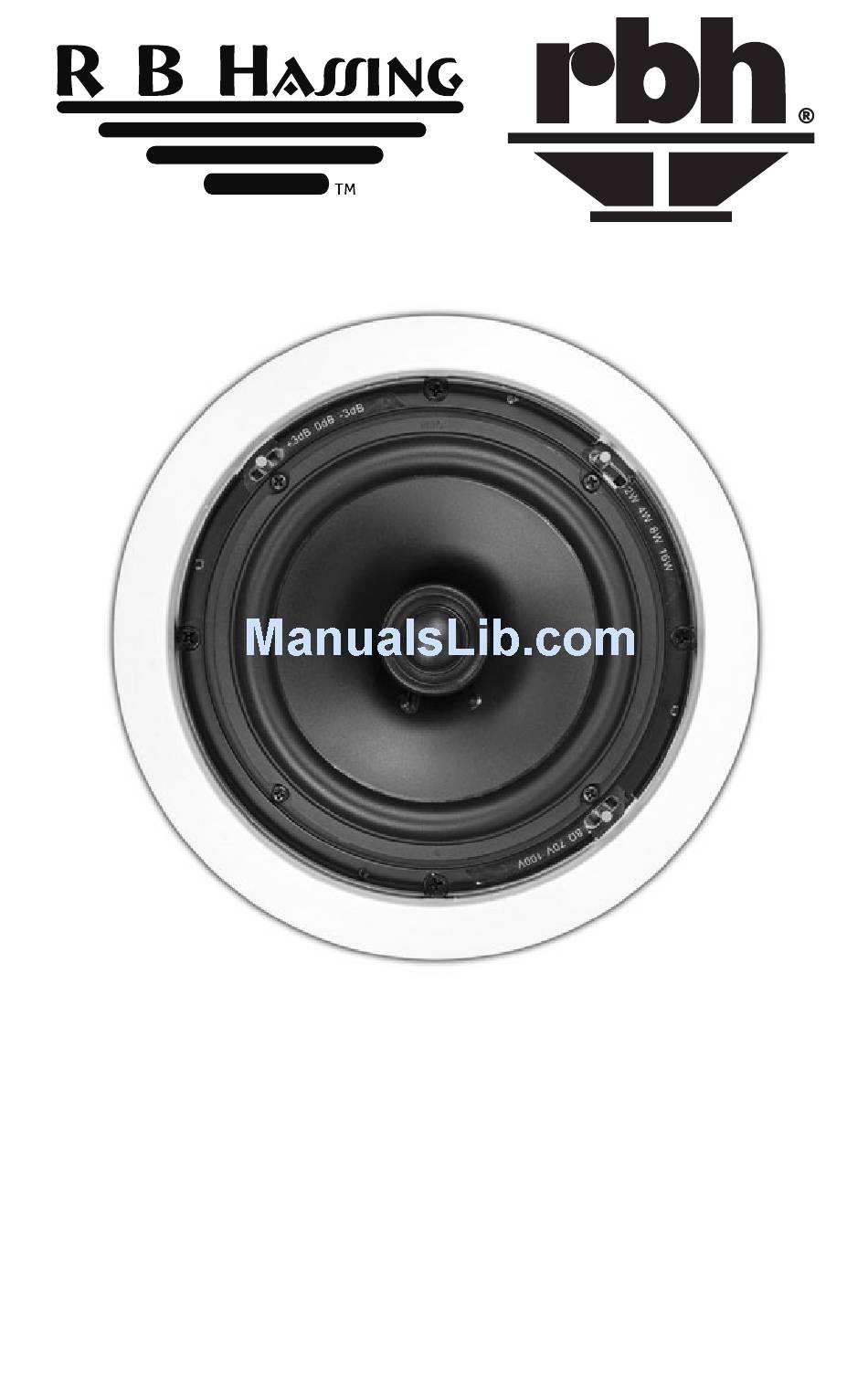

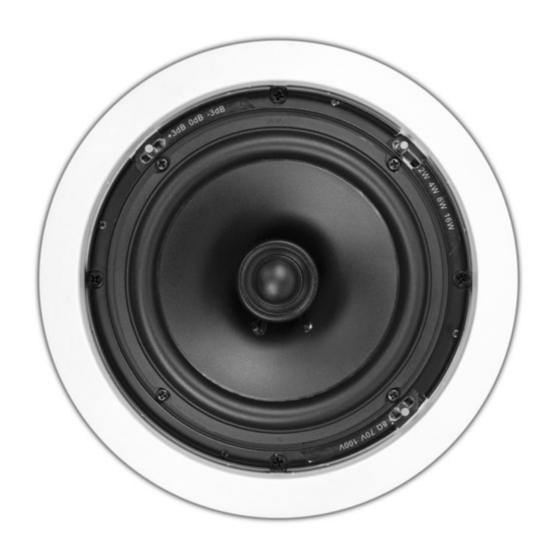

- Page 1 A-605/70 In-ceiling 2-way Speaker (8 Ohm 70/100 Volt Ready) O w n e r ’ s M a n u a l...
- Page 2 This manual contains features, setup recommendations and specifications for the RBH Sound A-605/70 In-ceiling 2-way (8 Ohm 70/100 Volt Ready) speaker. It is recommended you thoroughly read through the material contained in this manual before connecting your speakers.
- Page 3 ¾-inch soft swivel dome tweeter for great sound on a budget. Other amenities include a UL listed integral rear enclosure and a built-in multi-tap transformer, enabling the A-605/70 to be used with either 8 Ohm or 70/100 Volt audio systems. The A-605/70 provides full-range performance while exceeding building code compliance.
- Page 4 A: The A-605/70 can be used in a 70/100 volt system or as a standard 8 Ohm in-ceiling speaker. To properly set the speaker to a 70/100 volt system or as a standard 8 Ohm operation slide the switch to the proper position on the face of the speaker.
- Page 5 Wiring Diagrams CAUTION: If your amplifier isn’t capable of handling the impedance of all connected speakers, this may result in overloading the amplifier and may cause possible damage to the amplifier. Check your amplifier’s documentation for proper impedance levels. Parallel Connection A parallel connection exists when speakers are connected directly to an amplifier (as shown in the illustration below).
- Page 6 Specifications Model: A-605/70 Series: Architectural System Type: In-ceiling 2-way Speaker (8 Ohm or 70/100 Volt Ready) Frequency Response: 88Hz-20kHz ±3dB Sensitivity: 88dB (2.83V/1 meter) Recommended Power: 2-60 Watts Woofer(s): (1) 6½” (165mm) Polygraphite Cone Tweeter(s): (1) ¾” (19mm) Silk Dome Swivel...
- Page 7 RBH Sound products. Charges for unauthorized service and transportation cost are not reimbursable under this warranty. This warranty becomes void if the product has been damaged by alteration, misuse or neglect. RBH Sound assumes no liability for property damage or any other incidental or consequential damage whatsoever which may result from the failure of this product.
- Page 8 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 www.rbhsound.com It is RBH Sound policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. © Copyright...
