RBH Sound Ultra-3 Owner's Manual

On-wall/lcr soundbar speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

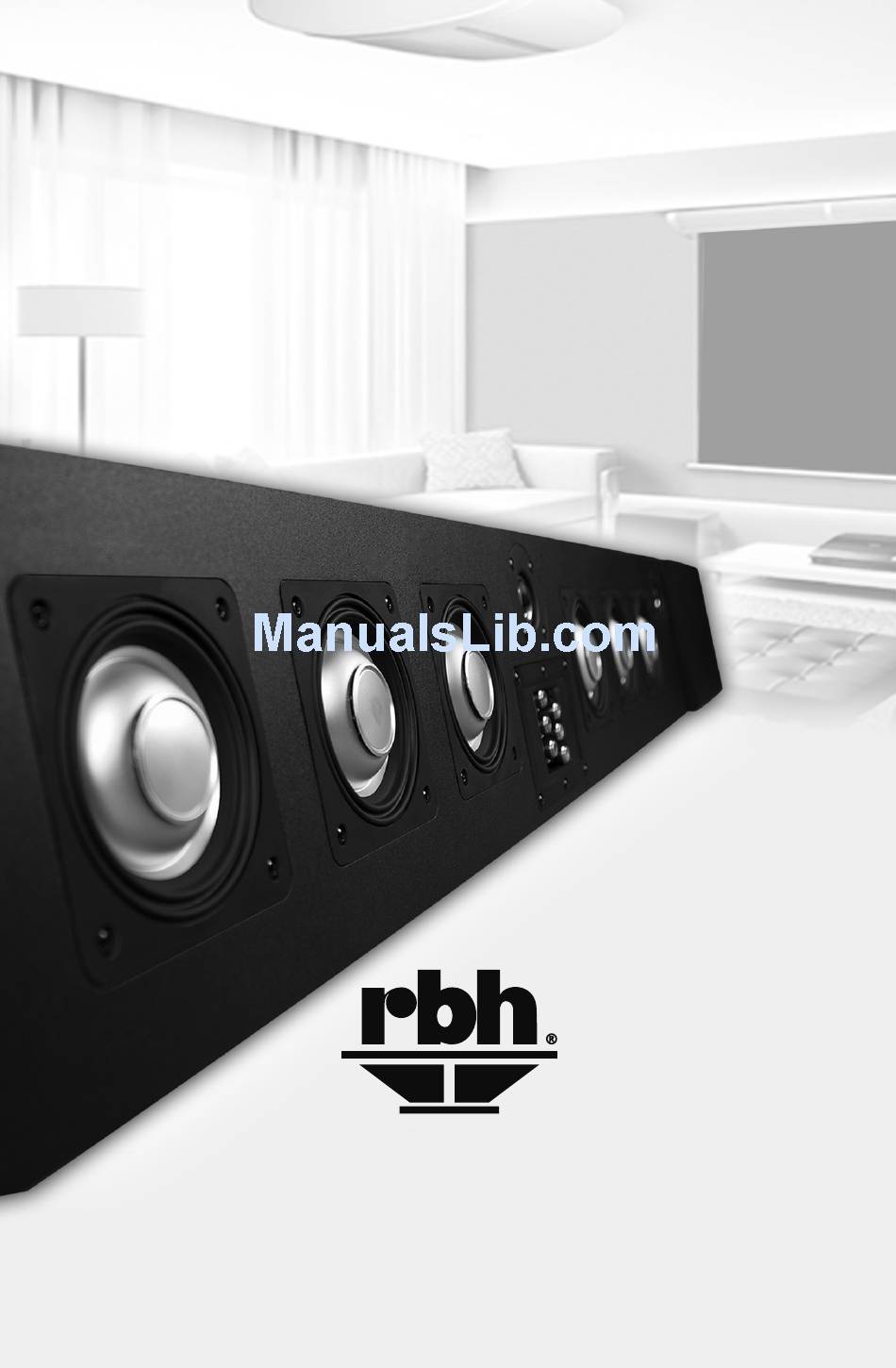

Ultra-3
On-wall/LCR Soundbar Speaker
O W N E R ' S M A N U A L

Advertisement

Table of Contents
loading

Related Manuals for RBH Sound Ultra-3

Summary of Contents for RBH Sound Ultra-3

  • Page 1 Ultra-3 On-wall/LCR Soundbar Speaker O W N E R ’ S M A N U A L...

  • Page 3: Break-In Period

    Care and Cleaning The unique grille for the Ultra-3 has been designed to be as lightweight and acoustically transparent as possible and is held in place by magnets imbedded in the frame of the cabinet.
  • Page 4 4-inch woofers and aluminum tweeters with textured phase plugs make the thin cabinet yet big sound possible. Our ez-wire terminals and fast mounting, including direct-from-front screw-through mount holes (hidden until needed), makes the Ultra-3 soundbar speaker a joy to install. The Ultra-3 soundbar speaker provides effortless, quick, brilliant sound.

  • Page 5: On-Wall Installation

    On-wall Installation To mount your Ultra-3 soundbar speaker on a wall determine a suitable location and complete all wiring to the speaker location before mounting the speaker to the wall. Be sure to check for wiring and drywall screws behind planned pilot hole locations. Do not ceiling-mount.
  • Page 6 In order to obtain the best possible sound from your speaker system, it is important to determine where the Ultra-3 speakers will sound best in your listening room. Room reflections from the floor, ceiling and side walls influence the balance, imaging and overall sonic quality at the listening position.
  • Page 7 Room Setup Suggestions (continued) The Ultra-3 soundbar speaker is designed to be used as a LCR (Left – Center – Right) speaker with flat-panel TVs such as plasma and LCD monitors. This will usually dictate placing the speakers below or above the TV.

  • Page 8: Specifications

    Specifications Model Ultra-3 Speaker Type: On-wall/LCR Soundbar Speaker Frequency Response: 100Hz-20kHz ±3dB Sensitivity 84db (2.38V @ 1M) Recommended Power: 20-120 Watts Woofer: (6) 4” (102mm) Proprietary Inverted Aluminum Cone Woofers Tweeter: (3) 1” (25mm) Aluminum Diaphragm Neodymium Magnet Tweeter with Textured Phase Plug...

  • Page 9: Warranty

    Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. * The Ultra-3 speaker is not intended for outdoor use. If used outdoors it is at owner’s discretion and this warranty is void.
  • Page 10 THIS PAGE WAS LEFT BLANK INTENTIONALLY...
  • Page 12 382 Marshall Way, Layton, Utah • USA • 84041 Toll Free: (800) 543-2205 • Fax: (801) 543-3300 rbhsound.com It is RBH Sound policy to continuously incorporate improvements into our products; all specifications © are subject to change without notice. Copyright...
