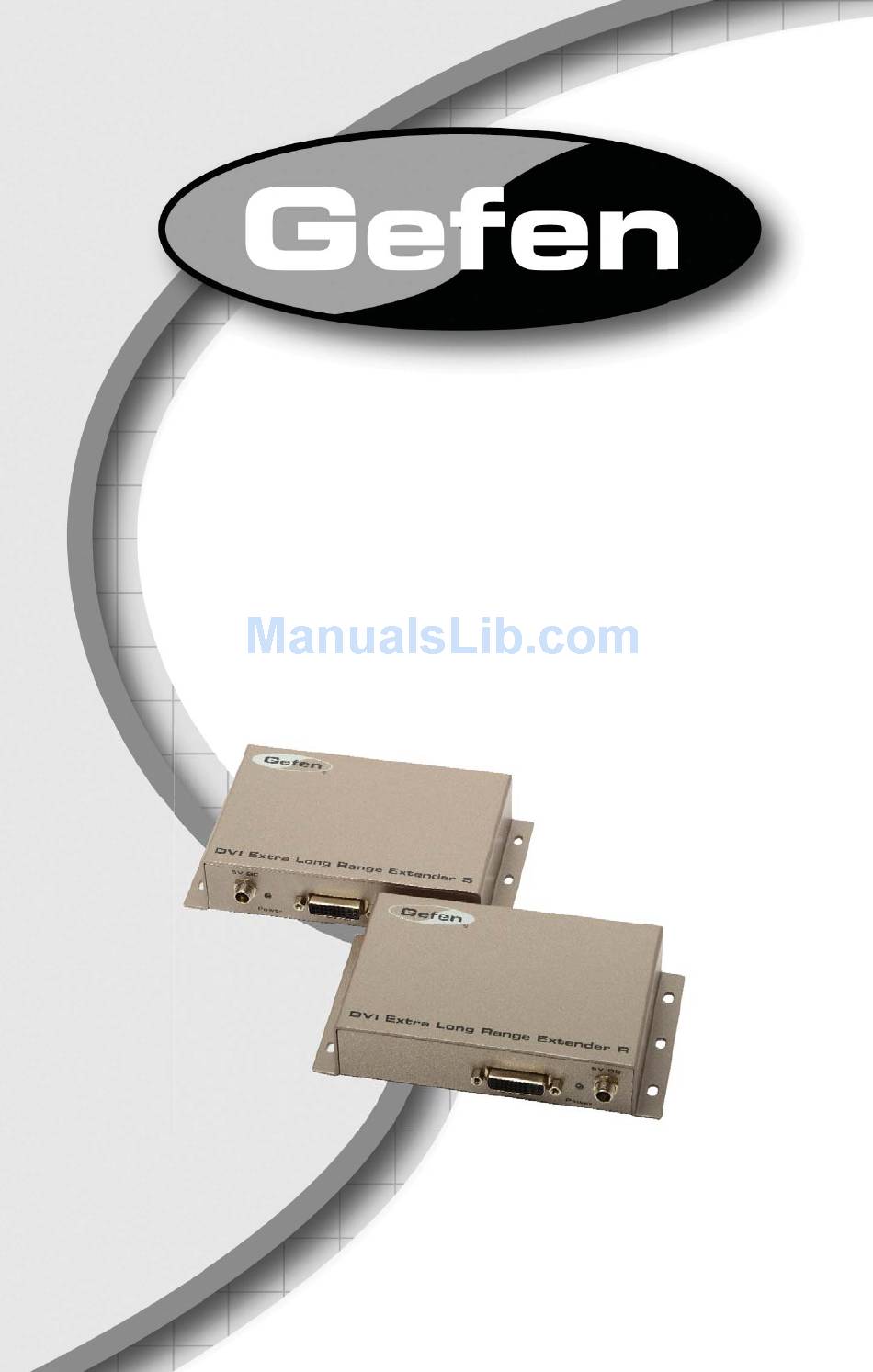

- Page 1 ® DVI Extra Long Range Extender EXT-DVI-ELR User Manual www.gefen.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. DVI Extra Long Range Extender is a trademark of Gefen, LLC © 2011 Gefen LLC, All Rights Reserved.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Sender Unit Layout Sender Unit Descriptions Receiver Unit Layout Receiver Unit Descriptions Connecting and Operating the DVI Extra Long Range Extender DIP Switch Confi guration 12 Network Cable Wiring Diagram 13 Specifi cations 14 Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Gefen DVI Extra Long Range Extender. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to install and simple to operate. -
Page 5: Operation Notes
NOTE: The shielded cable has an advantage by providing immunity to Electromagnetic Interference (EMI), cell phones and A/C motors. • The Gefen DVI Extra Long Range Extender features the ability to generate compatible EDID and Hot Plug signals when working with different brands of source devices and monitors. -
Page 6: Features
Locking Power Supplies for secure connections • Wall mountable Package Includes (1) Gefen DVI Extra Long Range Extender - Sender Unit (1) Gefen DVI Extra Long Range Extender - Receiver Unit (1) 6 ft. DVI Cable (M-M) (2) 5V DC Locking Power Supplies... -
Page 7: Sender Unit Layout
SENDER UNIT LAYOUT Front Back... -
Page 8: Sender Unit Descriptions
SENDER UNIT DESCRIPTIONS 5 V DC Locking Power Connector Connect the included 5 V DC locking power supply to this connector. Power Indicator This LED will turn bright blue once the included 5 V DC locking power supply has been properly connected to the unit and the locking power supply has been connected to an available electrical outlet. -
Page 9: Receiver Unit Layout
RECEIVER UNIT LAYOUT Front Back... -
Page 10: Receiver Unit Descriptions
RECEIVER UNIT DESCRIPTIONS DVI Out Connect a DVI display to this DVI-I connector. Power Indicator This LED will turn bright blue once the included 5 V DC locking power supply has been properly connected to the unit and the locking power supply has been connected to an available electrical outlet. -
Page 11: Connecting And Operating The Dvi Extra Long Range Extender
Unit. Do not overtighten the locking connectors. Plug the two (2) AC power cords from the power supplies to available electrical outlets. Wiring Diagram for the DVI Extra Long Range Extender CAT-5E CABLE (Up To 330 FT) DVI CABLE DVI Source Receiver Sender DVI Display EXT-DVI-ELR... -
Page 12: Dip Switch Confi Guration
DIP SWITCH CONFIGURATION Sender Unit There are two (2) DIP switches on the bottom of the Sender Unit. Each DIP switch performs a different function. DIP Switch 1 - Green Mode (Default = ON) • OFF - Enable Green Mode When DIP switch 1 is set to the OFF position, the Sender Unit is powered only when 5 V is present on the HDMI / DVI cable. - Page 13 DIP SWITCH CONFIGURATION Receiver Unit There are two (4) DIP switches on the bottom of the Receiver Unit. These DIP switches allow control over the EDID, HPD (Hot Plug Detect), DVI, and RS-232 modes. DIP Switch Function Default Position EDID Mode HPD Detect DVI Support DIP Switch 1 - EDID Mode (Default = OFF)
- Page 14 DIP SWITCH CONFIGURATION DIP Switch 3* - Supports DVI Connections (Default = ON) • ON - Disable HDCP If HDMI is connected, set DIP 3 in the ON position. • OFF - Enable HDCP If a DVI connection is used, set DIP 3 to the OFF position. DVI is supported by disabling HDCP pass-through.
-
Page 15: Network Cable Wiring Diagram
NETWORK CABLE WIRING DIAGRAM Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Color Orange / White Orange Green / White Blue Blue / White Green Brown / White... -
Page 16: Specifi Cations
SPECIFICATIONS Maximum Pixel Clock................165 MHz Input Video Signal................1.2 Volts p-p Input DDC Signal................5 Volts p-p (TTL) DVI Connector (Sender / Receiver).........DVI-I 29-pin, female Link Connector (Sender / Receiver)..........RJ-45 (1 per unit) Power Supply (Sender / Receiver)...............5 V DC Power Consumption..............10 W per unit (max.) Operating Temperature................0 - 40 °C Dimensions...............5.0”... -
Page 17: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 19 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
