Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-12N 1:12 + 3 UXGA / CAT5 Distributor... -
Page 2: Table Of Contents
Figure 3: Connecting the VP-12N 1:12 + 3 UXGA / CAT5 Distributor Figure 4: CAT5 PINOUT Tables Table 1: Front and Rear Panel Features of the VP-12N 1:12 + 3 UXGA/CAT5 Distributor Table 2: Underside Features of the VP-12N 1:12 + 3 UXGA / CAT5 Distributor Table 3: CAT5 PINOUT... - Page 3 ADDENDUM: Included with user manuals for machines with a CAT5 connector This addendum describes the Power Connect feature used with Kramer machines, and the choice between STP and UTP CAT5 cables. Power Connect Feature The Power Connect feature lets you power a transmitter / receiver system by connecting just one power adapter to either the transmitter or the receiver.
- Page 4 VP-12N (the HD version): Figure 2 on page 3 is replaced by Figure 1A Figure 1A: Underside of the VP-12N 1:12 + 3 UXGA / CAT5 Distributor (HD Version) Items 5 and 6 are added to Table 2 on page 4:...
-
Page 5: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 6: Your Vp-12N 1:12 + 3 Uxga / Cat5 Distributor

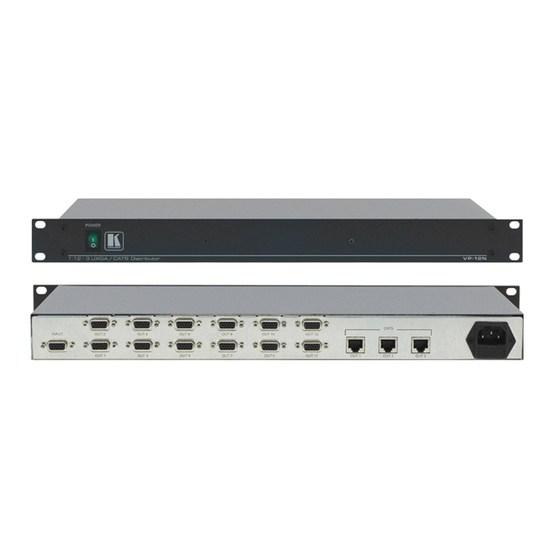

Your VP-12N 1:12 + 3 UXGA / CAT5 Distributor This section defines the VP-12N 1:12 + 3 UXGA / CAT5 Distributor: Front and rear panels (see Figure 1 and Table 1) Underside panel (see Figure 2 and Table 2) -
Page 8: Using Your Vp-12N 1:12 + 3 Uxga / Cat5 Distributor
2. Connect the OUTPUT HD15F connectors to up to 12 acceptors (for example, Local Display 1 to Local Display 12). 3. Ensure that the ID BIT switch on the underside of the VP-12N is set to ON (by sliding it to the left). This would enable a notebook or laptop (if connected instead of a computer) to output a VGA signal to an external VGA monitor. -
Page 9: Figure 3: Connecting The Vp-12N 1:12 + 3 Uxga / Cat5 Distributor
6. Adjust the blue, green and red signal levels, if required. Figure 3: Connecting the VP-12N 1:12 + 3 UXGA / CAT5 Distributor 1 Via UTP cabling, with a range of more than 300ft (>100m): see section 5.1 2 The TP-120 units may be powered via this connector (instead of via the 12VDC external supply) -
Page 10: 5.1 Wiring The Cat5 Line In / Line Out Rj-45 Connectors
Using Your VP-12N 1:12 + 3 UXGA / CAT5 Distributor 5.1 Wiring the CAT5 LINE IN / LINE OUT RJ-45 Connectors Table 3 and Figure 4 define the UTP CAT5 PINOUT, using a straight pin to pin cable with RJ-45 connectors:... -
Page 11: Technical Specifications
2 The CAT5 output is measured at the TP-120 output, at maximum TP-120 gain of the TP-12N and the TP-120 setup 3 At the TP-120 output on the TP-12N and the TP-120 setup Technical Specifications of the VP-12N 1:12 + 3 UXGA / CAT5 Distributor... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
