Summary of Contents for Kramer TP-202

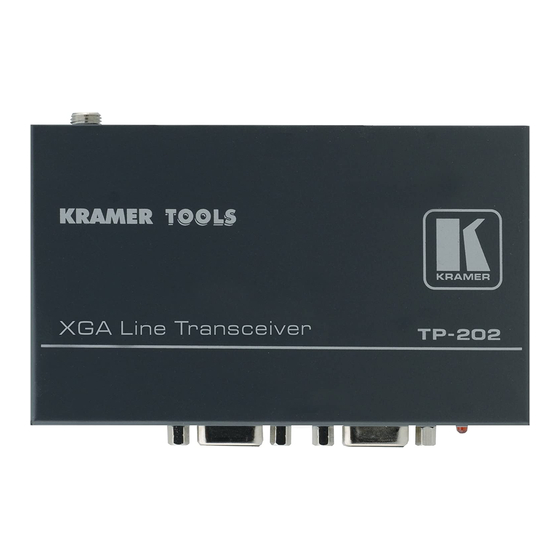

- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: TP-202 UXGA Line Transceiver/DA...
-
Page 2: Table Of Contents
Figure 3: Connecting the TP-202 Figure 4: CAT 5 PINOUT Tables Table 1: TP-202 UXGA Line Transceiver/DA Features Table 2: TP-202 (Underside Panel) Features Table 3: CAT 5 PINOUT Table 4: Technical Specifications of the TP-202... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Computer Graphics Source Step 2: Connect the power Step 3: On the TP-202, if required: Set the polarity using the underside switches Set the polarity using the underside switches Adjust the EQ. and LEVEL using the trimmers on the front panel Adjust the EQ. -
Page 5: Overview
Overview Overview The TP-202 is a twisted pair branching receiver for computer graphics video signals with resolutions from VGA up to UXGA and higher or HDTV signals. It takes a twisted pair signal and converts it into a computer graphics video signal or HDTV signal available on two 15-pin HD outputs, and simultaneously re-transmits the original twisted pair signal to another compatible receiver. -
Page 6: Shielded Twisted Pair (Stp)/Unshielded Twisted Pair (Utp)
We recommend that you use Shielded Twisted Pair (STP) cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. For cases where there is skewing, our UTP skew-free cable, Kramer BC-XTP, may be used. -
Page 7: Your Tp-202 Uxga Line Transceiver/Da
LINE IN RJ-45 Connector Connect to the LINE OUT RJ-45 connector on the transmitter LINE OUT RJ-45 Connector Connect to the LINE IN connector on an additional TP-202 EQ. Trimmer Adjust the cable compensation equalization level LEVEL Trimmer Adjust the output signal level... -
Page 8: Figure 2: Tp-202 (Underside Panel)
Your TP-202 UXGA Line Transceiver/DA Figure 2 Table 2 define the TP-202 underside panel: Figure 2: TP-202 (Underside Panel) Table 2: TP-202 (Underside Panel) Features Feature Function VS Switch Slide the switch to NORMAL to retain the polarity Slide the switch to INVERT to invert the VS polarity... -
Page 9: Connecting The Tp-202
When using the TP-202 as a standalone, we recommend using UTP cables. 1 By using two TP-202 units, you can transmit the signal to an additional TP-202 2 You can also connect an HD transmitter, such as the Kramer TP-219HD 3 Up to six units may be connected with minimal deterioration. -
Page 10: Figure 3: Connecting The Tp-202
Connecting the TP-202 Figure 3: Connecting the TP-202 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 11: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95"), W, D, H WEIGHT: 0.3kg (0.67lbs) approx. ACCESSORIES: Power supply 1 Specifications are subject to change without notice 2 Specifications are guaranteed for a system of two connected machines 3 When feeding TP-219HD (as the transmitter) and a looped TP-202... - Page 12 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 13 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
