Summary of Contents for Kramer TP-50

  • Page 1: User Manual

    Kramer Electronics, Ltd. Preliminary USER MANUAL Model: TP-50 XGA/Audio Line Receiver – DA...
  • Page 2: Table Of Contents

    Figure 4: CAT 5 PINOUT Tables   Table 1: TP-50 XGA/Audio Line Receiver – DA Features   Table 2: TP-50 XGA/Audio Line Receiver – DA Underside Features   Table 3: CAT 5 PINOUT   Table 4: Technical Specifications of the TP-50...
  • Page 3: Introduction

    GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com...
  • Page 4: Quick Start

    Step 1: Connect the input and the outputs - see section 5 Connect a transmitter via TP cable Connect a transmitter via TP cable Connect the outputs Connect the outputs Connect an additional TP-50 unit Connect an additional TP-50 unit Receiver 2 Receiver 1 To 1...
  • Page 5: Overview

    However, since the use of UTP cable might cause inconformity to 1 You can connect up to three additional TP-50 units, adding a total cable length of up to 300 meters. The video quality may be reduced if further units are connected. Adjust controls on the first unit, then on the second unit and then on the third TP-50...
  • Page 6: About The Power Connect Feature

    Overview electromagnetic standards, Kramer does not commit to meeting the standard with UTP cable. About the Power Connect Feature The Power Connect feature applies as long as the cable can carry power. This feature is available when using STP cable and the distance does not exceed 50m on standard CAT 5 cable.
  • Page 7: Your Tp-50 Xga/Audio Line Receiver - Da

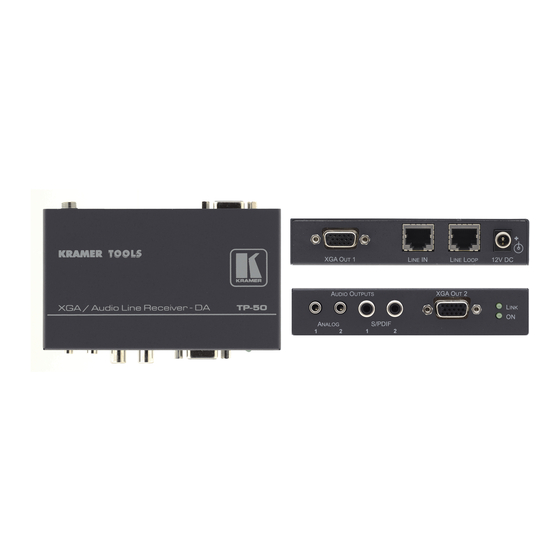

    Your TP-50 XGA/Audio Line Receiver – DA Figure 1 Table 1 define the TP-50: Figure 1: TP-50 XGA/Audio Line Receiver – DA Table 1: TP-50 XGA/Audio Line Receiver – DA Features Feature Function +12V DC connector for powering the unit 12V DC...
  • Page 8: Figure 2: Tp-50 Xga/Audio Line Receiver - Da Underside

    Your TP-50 XGA/Audio Line Receiver – DA Figure 2 Table 2 define the underside of the TP-50: Figure 2: TP-50 XGA/Audio Line Receiver – DA Underside Table 2: TP-50 XGA/Audio Line Receiver – DA Underside Features Feature Function LEVEL Trimmer Adjusts...
  • Page 9: Connecting The Tp-50 Xga/Audio Line Receiver - Da

    4 If the digital audio input is connected, press the button to select S/PDIF 5 Alternatively, you can connect a digital audio acceptor to the S/PDIF RCA connector, or you can connect both 6 You can connect the power to the TP-50 to power both the TP-45 and TP-50...
  • Page 10: Figure 3: Component/Xga - Audio Distribution System, Xga Mode

    Connecting the TP-50 XGA/Audio Line Receiver – DA 5. If required, connect the LINE LOOP RJ-45 connector on the TP-50 to an additional TP-50 unit 6. On the TP-50 underside: Adjust the video output signal level and/or cable compensation equalization level, if required...
  • Page 11: Wiring The Cat 5 Line In/Line Out Rj-45 Connectors

    Connecting the TP-50 XGA/Audio Line Receiver – DA Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors Table 3 Figure 4 define the UTP CAT 5 PINOUT, using a straight pin to pin cable with RJ-45 connectors: Figure 4: CAT 5 PINOUT...
  • Page 12: Technical Specifications

    Technical Specifications Technical Specifications Table 4 defines the technical specifications: Table 4: Technical Specifications of the TP-50 INPUTS: 1 twisted pair on an RJ-45 connector, for differential XGA and S/PDIF audio (line input) OUTPUTS: 2 XGA outputs on 15-pin HD connectors 1 LINE LOOP on an RJ-45 connector 2 stereo unbalanced audio outputs on 3.5mm phone jacks...
  • Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
  • Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
