User Manual

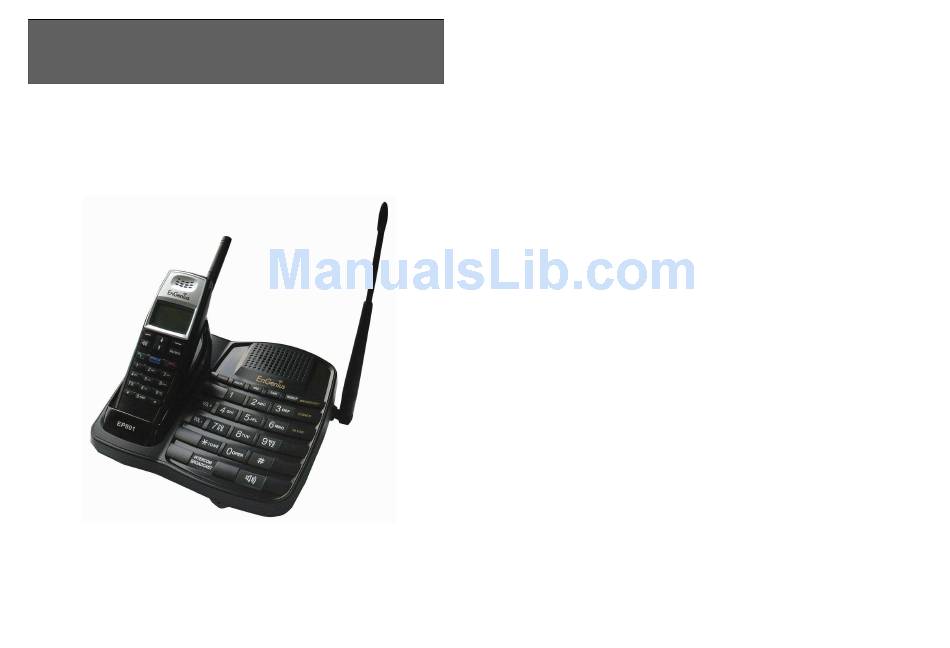

Digital Long Range Cordless Phone
EnGenius Customer Service
Singapore: 65-62271088

Table of Contents

Safety Instructions ...................................................................4
General Safety Instructions..................................................4
Product Safety Instructions ..................................................4
Battery Safety Instructions ...................................................6
Regulatory Information ............................................................7
Equipment Checklist ................................................................8
Handset Illustration ..................................................................9
Handset Features ..................................................................10
Basic Handset Features.....................................................10
Additional Handset Features ..............................................12
Base Illustration .....................................................................17
Base Features .......................................................................18
Basic Base Station Features ..............................................18
Charger Illustration ................................................................20
Charger Features...................................................................21
Getting Started ......................................................................22
Base Station Installation.....................................................22
Handset and Charger Installation.......................................23
Basic Operations ...................................................................24
Operation Modes................................................................24
A. Base Operation Modes ..............................................24
B. Handset Operation Modes .........................................24
Making a Telephone Call ...................................................26
Making an 2-Way/ Intercom Call ........................................27
A. Handset to Handset Calls...........................................27
Making a Broadcast ...........................................................28
A. Handset to Handset Calls...........................................28
B. Broadcasting from Base to Handset...........................29
C. Broadcasting from Handset to Base ..........................29
Redial .................................................................................30
Receiving a Telephone Call ...............................................30
Receiving an Intercom Call ................................................31
~2~

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP801 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnGenius EP801

Summary of Contents for EnGenius EP801

  • Page 1: Table Of Contents

    C. Intercom/2-Way from Handset to Base ......28 Making a Broadcast ............28 A. Handset to Handset Calls...........28 B. Broadcasting from Base to Handset......29 C. Broadcasting from Handset to Base ......29 EnGenius Customer Service Redial .................30 Singapore: 65-62271088 Receiving a Telephone Call ..........30 Receiving an Intercom Call ..........31...

  • Page 2: Safety Instructions

    Ending a Call..............32 Safety Instructions Adjusting Handset Receiver (Earpiece) Voice Volume ..32 Caution: Your wireless telephone gives you freedom and flexibility to stay Adjusting Handset Speakerphone Voice Volume....32 in touch while you move around. However, when using your phone Adjusting Base Speakerphone Voice Volume ....32 equipment, safety instructions should be followed to avoid the risks of fire, Placing a Call On Hold ............33 electric shock, injury to person, and damage to property.

  • Page 3: Battery Safety Instructions

    3. Changes or modifications to this product not expressively approved by 15. Do not place conductive objects over or near the antenna. the manufacturer will void the warranty and the CE authorization to 16. Do not use the product to report a gas leak while in the vicinity of the leak. operate the equipment.

  • Page 4: Ep801

    Regulatory Information Equipment Checklist In a Base + Handset package, please find the following components: EP801 Base Station x 1 Base Antenna x 1 This device complies with CE Rules. Operation is subject to the following Base AC/DC Adaptor x 1...

  • Page 5: Handset Illustration

    Handset Illustration Handset Features Basic Handset Features 1. 4-line LCD (Liquid Crystal Display) a. The LCD display has LED (Light Emitting Diode) for backlighting. b. The 1 line of LCD consists of icons. c. Icons explanation from left to right RSSI (Receive Signal Strength Indicator) During a call, the number of bars is proportional to the radio signal strength received.

  • Page 6: Additional Handset Features

    b. Distinctive alert sounds indicating various events: c. Press for 3 seconds to off the power Single beep: successful key entry. 10. CALLER ID Key ( Double beep: indicates power on/off. a. Review caller ID list. Triple beep: failed operation. b.
  • Page 7 UNMUTE (Left) soft key to release it. 21. Custom Name a. Allow changing the “EP801” screen to the desired wording or info, 14. Phonebook a. 50 entries, each stores a phone number or handset ID (up to 26 such as the user’s name.
  • Page 8 a. Allow changing the Base PIN which requires to enter in Base call when the far-end hangs up the call. Settings (MENU-6). When entering the base setting, PIN is required. Default is “0000”. Re: Default is “0000”. 30. Area Code 24.

  • Page 9: Base Illustration

    Base Illustration Base Features Basic Base Station Features 1. Antenna a. The antenna port has a normal thread connector; to remove antenna or cable, turn counterclockwise; to install, turn clockwise. Improper installation may damage the connector. b. When using an outdoor antenna, locate the antenna (not the base station itself) as high as possible for a clear transmission path.

  • Page 10: Charger Illustration

    speed dial memory during the talking. Charger Illustration HOLD ( ): press the key to put the call on hold. d. FLASH ( ): press the key to send a Flash signal to phone line to DC in retrieve a dial tone after the call ends, or to perform the call waiting feature provided by local phone companies during a call.

  • Page 11: Charger Features

    Charger Features Getting Started Base Station Installation 1. DC In Connects to Charger AC Adaptor. There are three possible base station setups: Base station alone 2. Handset Charging Slot Base station plus telephone answering device a. Charge handset battery when handset is placed in cradle. Base station plus standard telephone b.

  • Page 12: Handset And Charger Installation

    Basic Operations Handset and Charger Installation Operation Modes 1. Plug the transformer end of the Charger AC/DC adaptor into a standard AC electric power outlet, plug the other end into the “DC In” jack on the Both the base station and handset have levels of operation at which time back of the Charger.

  • Page 13: Making A Telephone Call

    3. Menu Tree Making a Telephone Call A. From Handset 1. Press , wait for dial tone, and then enter phone number. 2. Alternatively, you can enter phone number first then press key. When using this method, you can use the CLEAR (Left) and DELETE...

  • Page 14: Making An 2-Way/ Intercom Call

    Making an 2-Way/ Intercom Call 2. The base will ring, until press the key to connect The EP801 Cordless Phone System offers private, Intercom/ 2-way radio the intercom call with the handset. calls independence of base station. Intercom/ 2-way communication can be placed from or to base stations and handsets.

  • Page 15: Broadcasting From Base To Handset

    d. Press key to end the broadcasting. d. Press the key to end the broadcasting. B. Broadcasting from Base to Handset Redial 1. Broadcast to all handsets a. Press key on the base station to intercom all registered handsets. A. From Handset b.

  • Page 16: Receiving An Intercom Call

    Ending a Call If Caller ID service is available, the LCD will display the incoming call information. If the LCD shows “Private” or “Unknown”, the caller’s information may have been blocked by A. from Handset the caller or the originating phone company. To end a telephone or intercom call, press key, or place handset into charger cradle.

  • Page 17: Placing A Call On Hold

    will show “Ringer off”. Placing a Call On Hold 2. For temporary silencing the ringer when an incoming call arrives, press SILENT (Left) soft key. 1. When a call is in progress, it can be put on hold by pressing the key.

  • Page 18: Advanced Operations

    Advanced Operations register”. Handset Registration Notes: The base has a 30 second registration timeout starting from pressing the REG button. The handset has a 12 second 1. If your handset(s) is purchased as part of a system, it has been pre- registration timeout starting from the registration or de- registered with the base station at the factory.

  • Page 19: Call Transfer

    Direct transfer from base Consequently, it cannot de-subscribe a handset from a group. 1. Press base When an outside line or an intercom caller enters a group ID, all key to put the call on hold. handsets subscribed to this group will ring. The first handset to When call on hold, the base In Use &...
  • Page 20 Also use c. For example, you are looking for “EnGenius”, and then press the to move the cursor to insert (to the left of the cursor) or delete number “3” once.

  • Page 21: Call Barring

    Programmable Feature Call Call barring 1. If EP801 base unit is installed behind a PBX system, it is feasible to pre- program some feature call along with the PBX’s feature code into the 1. Block the users from dialing the long distance calls or international calls.

  • Page 22: Caller Id

    (Left) soft key to save the number. Notes: (3) After above process, the call log saved into This feature call would be useful if the EP801 base unit is adjunct to phonebook. a PBX system, b. Delete call log: if you have not pre-programmed any feature call into the system,...

  • Page 23: Base Speed Dial Setting

    Re: The memory location is “00” ~ “19”. Call a Caller ID 1. When display a caller ID, Press 4. When using the base speed dail, press to dial key followed by this number. key, then enter the 2-digit memory location (“00”~”19”). 2.

  • Page 24: Call Manager

    Re：The base ID for 1 base is “10”, for 2 base is For 2 option (BS Selection)： “20”, for 3 base is “30”, for 4 base is “40”. 1. Press MENU, followed by “4” to enter the Call Settings mode. Notes: Press “5”...
  • Page 25 Menu Operations 1. Press MENU (Right) soft key to enter menu mode while the phone is in standby mode. Re: You can either press , followed by SELECT (Left) soft key to confirm the selected menu. Or Press the digit directly to confirm the selected menu.
  • Page 26 b. Press “2” to Group Select: see Handset Group Subscription on page Caller ID service from local telephone company) 35 . Press “6” to set Language: Press “3” to set Call Barring: see Call Barring operation on Page 41. to scroll through option 1~3 (1.English 2.Spanish 3.French ).

  • Page 27: Index

    Default PIN is “0000”. 2-Way/Intercom, 11, 19, 27, 28 Re: When setting “on”, the EP801 will automatically hang up if the far end caller hung up already. However, this function depends on if there is “Line Reversal” signal sent out by PBX or PSTN, after the...
  • Page 28 Change PIN, 15, 52 Key Volume, 50 Charger Features, 21 Charger Illustration, 20 Line Jack, 18 Lithium-Ion (Li-Ion), 8 De-registration, 35, 36 Line Reversal, 53 DND, 12 Line Ring, 50 Do Not Disturb (Silent Ring), 12, 34 DTMF Tone, 15 DTMF Duration, 15, 52 Making a Broadcast, 28 Making a Telephone Call, 26...
  • Page 29 Reset Button, 18 Technical Specifications Ringer, 10, 11, 12, 19, 29, 30, 31, 32, 33, 34, 46, 50 Ringer Volume, 11, 12, 19, 46 Electrical Specifications Base Station Portable Handset RSSI, 10 Frequency 863-865 MHz 863-865 MHz Peak: 8 dBm Peak: 7 dBm RF Output Power Average: 5 dBm...
