Preparing The Power Supply For Use; Figure 1: Line Voltage Selectors, Power Input, And Fuse Locations - Tektronix CPS250 User Manual

Getting Started

Preparing the Power Supply for Use

Check the following items prior to operating the CPS250 Triple
Output Power Supply for the first time (see Figure 1 for locations of
items 1 through 3):

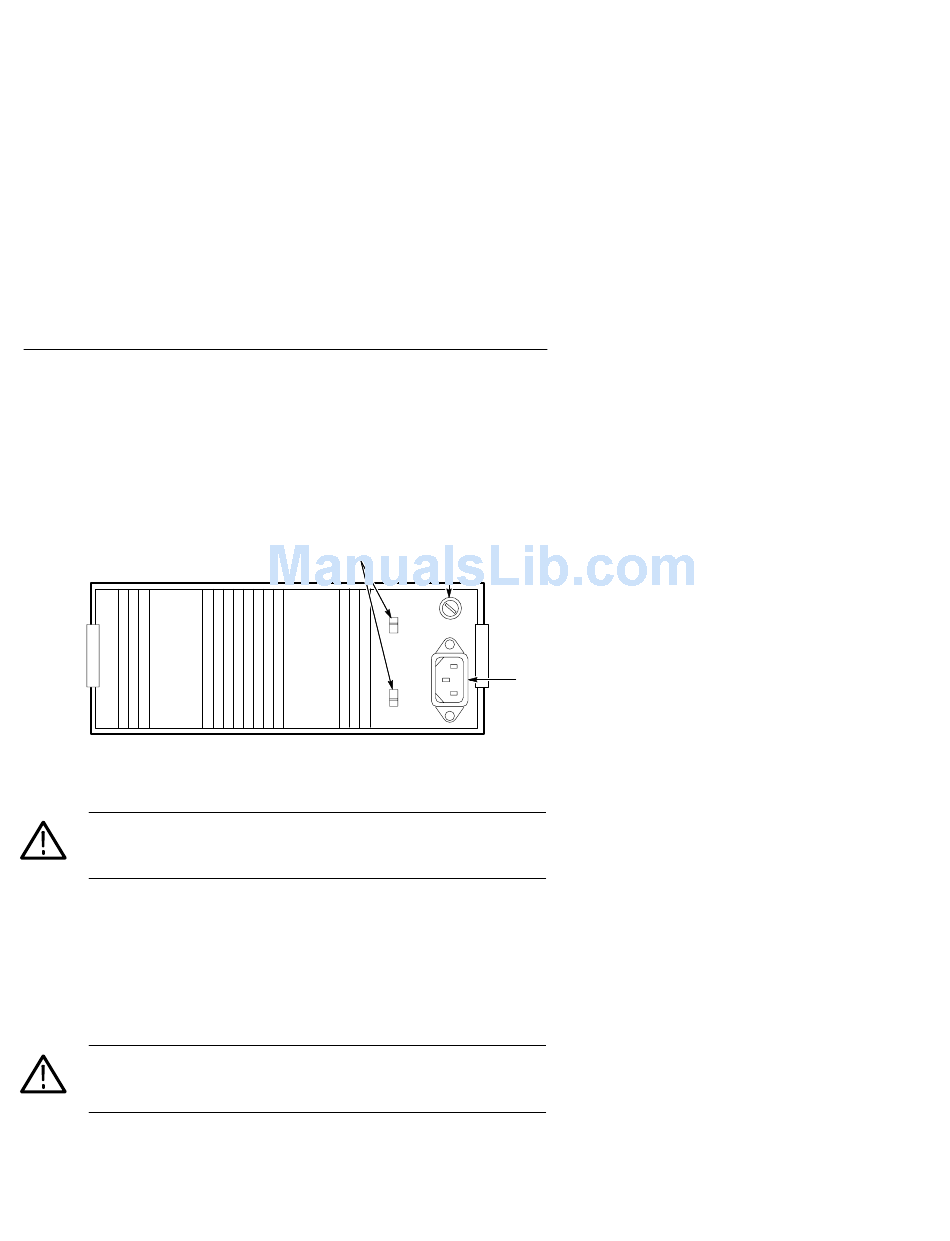

Figure 1: Line Voltage Selectors, Power Input, and Fuse Locations

CAUTION. To prevent damage to the instrument, set the line voltage
selectors to the proper voltage setting and install the correct line
voltage fuse before operating the equipment.
1. Set the line voltage selectors to the input line voltage. These
selectors connect internal wiring for various line voltages. This
product is intended to operate from a power source that does not
supply more than 250 V
between either supply conductor and ground. For line voltage
ranges, refer to Appendix A: Specifications on page 17.
WARNING. To prevent electrical shock, unplug the power cord and
disconnect the test leads from the circujit before checking or
replacing the fuse.
2
1 2
between the supply conductors or
RMS
CPS250 User Manual
3
