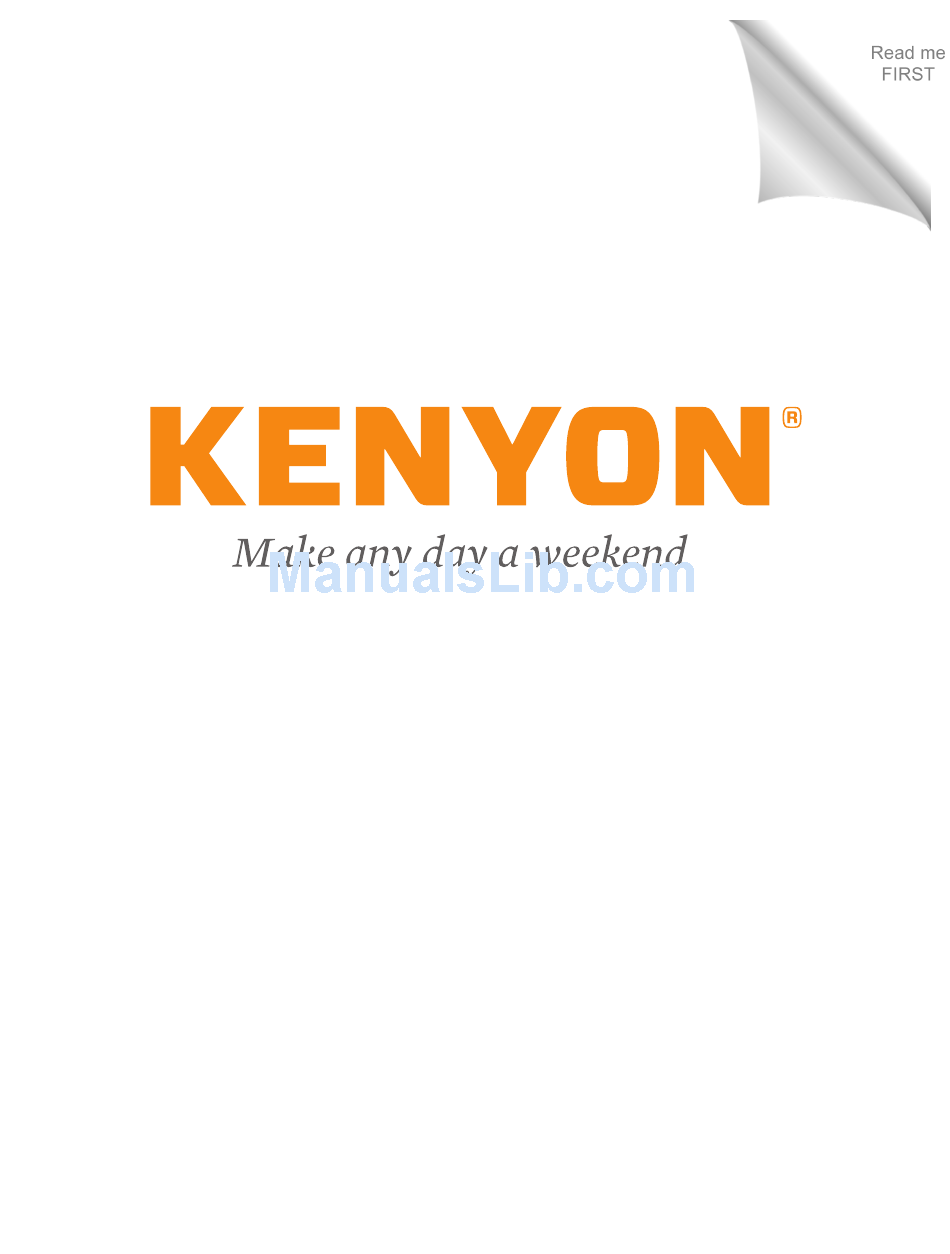

- Page 1 www.CookWithKenyon.com 1, 2, & 3 BURNER TOUCH CONTROL - NON UL O W N E R S M A N U A L Part # 145357 Revised: August 2, 2017...
-
Page 2: Table Of Contents
Product Specifications these instructions Three Burner Models Two Burner Large Models Two Burner Trimline Models Thank you for choosing Kenyon, One Burner Built-In Models the world’s leading manufacturer One Burner Portable Model of specialty cooking appliances. By following the instructions in this... -
Page 3: Important Safety Instructions
Do not repair or replace any part of the cord, the connection must be kept dry and off appliance. If service ever becomes necessary, the ground. this appliance should be serviced by AUTHORIZED PERSONNEL ONLY or call KENYON Customer Care at (860)664-4906. - Page 4 Other surfaces of the appliance may become hot enough to cause burns. DO NOT DISCARD THESE INSTRUCTIONS, KEEP THEM WITH THE KENYON COOKTOP FOR FUTURE REFERENCE.
-
Page 5: Product Specifications
Product Specifications Three Burner Models BURNER DATA - B40547 (240V) VOLTAGE DIAMETER OUTPUT IN WATTS - B40547PUPS (240V) 240V AC Two 6.5” (165mm) 1200 each One 8” (200mm) 1800 PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 30” 14 1/4” 4 1/8” 762mm 362mm 104.8mm... -
Page 6: Two Burner Trimline Models
Product Specifications Two Burner BURNER DATA Trimline Models VOLTAGE DIAMETER OUTPUT IN WATTS - B40575 (120V) 120V AC Two 6.5” (165mm) 1200 each - B40575L (120V) 240V AC Two 6.5” (165mm) 1200 each - B40575PUPS (120V) PRODUCT DIMENSIONS - B40575LPUPS (120V) - B40579PUPS (120V) WIDTH DEPTH... -
Page 7: One Burner Portable Model
Product Specifications One Burner BURNER DATA Portable Model VOLTAGE DIAMETER OUTPUT IN WATTS - B41570 (120V) 120V AC One 6.5” (165mm) 1200 PRODUCT DIMENSIONS WIDTH DEPTH HEIGHT 12 1/2” 12” 5 3/10” 317.5mm 304.8mm 134.6mm... - Page 8 3 BURNER PUPS COOKTOP INSTALLATION ONE PLACE DECIMAL ± 0.1" ENG APPR. TWO PLACE DECIMAL .01" MFG APPR. THREE PLACE DECIMAL .005" B40547PUPS, B40548PUPS, B40549PUPS Q.A. INTERPRET GEOMETRIC PROPRIETARY AND CONFIDENTIAL TOLERANCING PER: ANSI COMMENTS: THE INFORMATION CONTAINED IN THIS MATERIAL SIZE DWG.
-
Page 9: Cleaning And Care
(Cerama your cookware. Bryte Ceramic Cooktop Cleaner). A sample is included with your Kenyon cooktop. A cast iron pan, stainless steel pan, aluminum pan or combination steel/stainless steel pan Always remove food spills, grease spatters are recommended to prevent damage to and metal rub-off from cookware. -
Page 10: Operation
The power setting determines how hot the burner will get and is electronically regulated which will cause the burner to switch on and Kenyon PUPS™ (Pop Up Potholder System) off as needed to maintain the selected power keep pots safe and secure using a very level. -
Page 11: Turning On
Operation T HIS S ECT ION ON LY P ERTAINS TO COOKTOP S THAT HAVE A L O CK F U NCT ION. IF YOUR COOKTOP DOES NOT HAVE THIS F EAT U RE PL EASE SKIP AHEAD TO PAGE 13 AND 14. Key graphic Element indicator for lock function... -
Page 12: Lock Mode
Operation Lock Mode Automatic Shut-Off You can lock the entire cooktop at any time The cooktop is programmed to automatically shut-off if it is left unattended for an extended during use or when the unit is powered off. period of time. If left on high (8), it will switch off Locking the cooktop prevents unwanted after one hour if no control changes are made. -
Page 13: Touch Controls
Operation T HIS S ECTI ON ONLY PE RTAINS TO COOKTOPS THAT DO N OT HAV E A L OCK F UNCTION. IF YOUR COOKTOP HAS THIS F E AT U RE P LE ASE RE FERENCE PAGE S 11 AND 12. Touch Controls (+) POWER SENSOR... -
Page 14: Automatic Shut-Off
SETTING AUTO SHUT-OFF (min) POWER SENSOR Heat Settings Your KENYON cooktop has 8 different heat settings, from 1 through 8, selected using the (-) and (+) sensors. The heat setting is displayed as shown below. The heating element cycles at different time intervals to vary the heat level. -
Page 15: Installation
The following items should be included in the breaker and rated per the specifications for the carton. If any components are missing or various models as shown in the table on damaged, call KENYON immediately. page 16. PARTS INCLUDED Lite-Touch Q (1) Ceramic ®... - Page 16 B41570 1200 Watts 120V AC 10A 60Hz N/A unit equipped w/ GFCI cord B40547 3000 Watts 240V AC 17.5A 60Hz #10 AWG B40547PUPS 3000 Watts 240V AC 17.5A 60Hz #10 AWG B41541PUPS 3000 Watts 240V AC 12.5A 60Hz #12 AWG...
-
Page 17: Countertop Preparation
Installation WARNING! If the electrical supply does not meet the product specifications, consult with a licensed electrician before proceeding with installation! Countertop Preparation Please read this section prior to making cutout for cooktop. It is important to plan ahead for installation of the cooktop, keeping the following dimensions in mind. -
Page 18: Installing The Cooktop
Installation Countertop Preparation Continued... GLASS PANEL Before making the countertop cutout, check PUTTY for clearance. Check to see if the cooktop STRIP will clear the front and side walls of the base cabinet. It is also important to provide enough COUNTERTOP ventilation. -
Page 19: Electrical Connection
Installation Electrical Connection Final Preparations Prior to Use Before proceeding further, verify that the power supply is disconnected. Verify that Remove the plastic film from the cooktop. the appropriate electrical supply requirements Clean the cooktop before you use it for the have been met. -
Page 20: Warranty
Warranty Kenyon International, Inc (the “Company”) warrants its products in normal usage to be free of defects in materials and workmanship subject to the conditions and limitations below. Any part, which proves to be defective in normal usage during the warranty period will be repaired or replaced by the Company.
