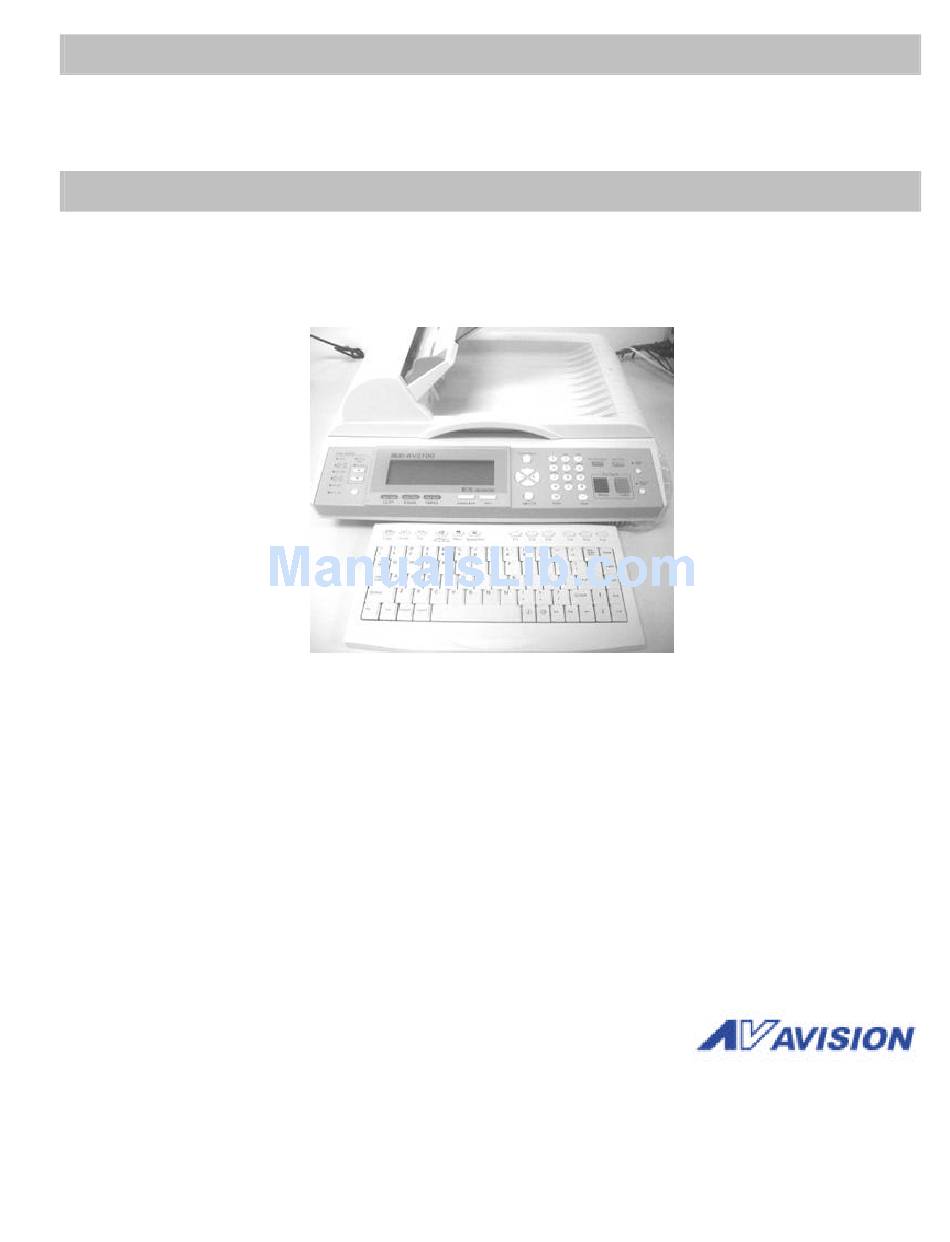

  • Page 1 NetDeliver @V2100 User's Manual (D/N: 250-0362-0 V1.0)
  • Page 2 Copyright @V2100 Avision Inc. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of the manufacturer.
  • Page 3 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Responsible Party: Avision Labs, Inc. Telephone No.: +1 (510) 739-2369 @V2100 User’s Manual...

  • Page 4: Ec Declaration Of Conformity

    Avision Inc. Manufacturer’s Name: No. 20, Creation Road I, Manufacturer’s Address: Science-based Industrial Park, Hsinchu Taiwan, ROC Declare that the product NetDeliver @V2100 Model Name: Conforms to the following Product Specification EN 50081-1 Emission: EN 55022 EN 61000-3-2 EN 61000-3-3...

  • Page 5: Table Of Contents

    Table of Contents GETTING STARTED ........................1-1 ............................1-1 RECAUTIONS ............................1-2 NTRODUCTION ..............................1-2 EATURES ............................1-4 XTERNAL The front view ............................. 1-4 The rear view ........................... 1-5 ............................1-6 ONTROL ANEL ......................1-10 NSTALLATION NFORMATION .....................1-12 NTERNET OMMUNICATION EATURES email forwarding ..........................1-12 Filing document to a server......................1-12 Filing document to a server......................1-13 SETTING UP YOUR MACHINE....................
  • Page 6 ADMINISTRATION ......................... 3-1 LCD- ............3-1 DMINISTER THE SETTING SCREEN VIA THE DISPLAY @V2100’ ..................3-2 DMINISTER THE ..................3-3 UMMARY OF DMINISTRATOR CTIVITIES MANAGING THE ADDRESS BOOK.................... 4-1 ..................4-1 ANAGING MAIL DDRESS adding an e-mail address........................4-1 Modifying e-mail addresses......................4-4 Deleting E-mail Addresses ....................... 4-5 ........................4-6 ANAGING ROUPS...
  • Page 7 Printer Compatibility list........................6-10 accessing Copy Features ......................6-11 ........................6-17 TART ILING OCUMENT TROUBLESHOOTING ........................7-1 ......................7-1 NFORMATION ODES ESSAGE Information Codes During Scanning and Copying..............7-1 Information Codes During Networking..................7-2 Information Codes During E-Mailing .................... 7-3 ..........................7-6 LEARING A APER ....................7-7 EMOVING THE ABNORMAL LINE IMAGE ADF ..........................7-8...

  • Page 9: Getting Started

    Getting Started Precautions Keep the machine out of direct sunlight. Direct exposure to the sun or excessive heat may cause damage to the unit. Do not install the machine near heating or air conditioning units. Do not install the machine in a humid or dusty place. Be sure to use the proper AC power source.

  • Page 10: Introduction

    Introduction Thank you for purchasing the Avision NetDeliver @V2100, an internet appliance. The NetDeliver @V2100 offers an unprecedented document delivery technology, transmitting paper documents electronically over the internet.and intranent. With @V2100, you have power to instantly send your business document to designated recipients at any place in the world.
  • Page 11 Digital Copying: Connected to a color or black and white laser printer, the @V2100 becomes a digital copier. With an intuitive control panel, making digital copy becomes fast and easy. Multiple Pages Sending: With the built-in Auto Document Feeder, the @V2100 allows a stack of 25 page document(s) to be continuously scanned at one time in reliable quality , so as to increase your efficiency.

  • Page 12: External View

    External View THE FRONT VIEW 1. ADF Front Cover 4. ADF Paper Support LCD-display 5. Document(s) Cover 3. ADF Paper Tray 6. Control Panel Getting Started...

  • Page 13: The Rear View

    THE REAR VIEW 1. Paper Feed Tray 6. Power Jack 2. ADF Cable 7. ADF Port * 3. Keyboard Port Printer Port RJ-45 Network Port 5. Power Switch Getting Started 1-5 @V2100 User’s Manual...

  • Page 14: Control Panel

    Control Panel Part A Part B Part C Part D Part A: Scaling Area: Used to reduce document(s) down to 25% or enlarge it up to 400%. (93%) (144%) (122%) (115%) (86%) (81%) Increase scaling in 1% increment Decrease scaling in 1% Decrement Select scaling from the preset percentage Getting Started...
  • Page 15 Part B: LCD-display & Function Keys: Used to display current operation and select key working mode. Function Keys and others: Press to use the Copy function. COPY Press to use the email function. E-MAIL Press to use the filing function. FILING Press to select an email address from an address book or Address...
  • Page 16 Part C: The Numeric/Character Keypad: Used to enter the network parameters or copy page number. Part D: Start & Other Keys: Used to select scanning resolution and start sending or copying document(s). (This function is temporarily reserved for the future usage.) Used to stop sending process or clear previous operation.
  • Page 17 Getting Started 1-9 @V2100 User’s Manual...

  • Page 18: Pre Installation Information

    Pre Installation Information The @V2100 has to be setup properly on your network to perform email and filing functions. The following network parameters have to be set. For required information and LAN connection, please contact your network administrator. Important ! Make a copy of the following table and ask your Network Administrator to complete the information.
  • Page 19 Note: *IP Address: An IP (Internet Protocol) address uniquely identifies a host connection to an IP network. System administrator or network designer assigns the IP address. The IP address consists of two parts, one identifying the network and the one identifying your node.

  • Page 20: Internet Communication Features

    Internet Communication Features EMAIL FORWARDING The @V2100 allows you to transmit document(s) over the Internet via email. The document is first scanned and converted into a jpeg-formatted or a pdf-formatted file, and then transmitted to a remote recipient as an attachment to an email. When you send an email to someone via the @V2100, the @V2100 uses Simple Mail Transfer Protocol (SMTP) to transfer your outgoing mail to your SMTP mail server, and then to send your mail to the Internet.

  • Page 21: Filing Document To A Server

    FILING DOCUMENT TO A SERVER Filing document over intranet: Through the intranet with FTP,HTTP,CIFS,or DIMS protocol, the @V2100 allows you to put document directly to a designated server or personal computer’s file folder in one of these compressed formats, pdf,tiff,and jpeg. CIFS is the sharing system of Microsoft Windows. DIMS is the special protocol,by which the @V2100 supports Post Processing, and is also applied to document management software like Formosoft’s Document Imaging Management System.

  • Page 22: Setting Up Your Machine

    2 Setting up Your Machine Minimum Configuration Requirements To make the best of the @V2100, the following configuration is required: To send emails from the @V2100: TCP/IP network A SMTP server To file document(s) via intranet FTP,HTTP,CIFS,or DIMS Protocol environment Windows 9x, Windows NT,Windows 2000,HTTP,or FTP server To make copies from the @V2100: A PCL-compliant laser printer...

  • Page 23: Checking Package Contents

    Checking Package Contents Unpack the box and check its components. If there is any item missing, contact your dealer immediately. Paper Feed Tray 8. Power Cord Paper Support 9. Paper Stopper User’s Manual, Quick Guide 10. Keyboard @V2100 Main Body 11.

  • Page 24: Unlocking The Scan Unit

    Unlocking the Scan Unit The scan unit is locked during transport to protect the scanning mechanism from being damaged. Be sure to unlock the scan unit before using the machine. 1). Locate the lock switch underneath 2). Move the lock switch to the the machine.

  • Page 25: Installing The Paper Feed Tray

    Installing the Paper Feed Tray Attach the Paper Support to the Paper Feed Tray. Paper Feed Tray Paper Support Then, attach the Paper Feed Tray to the machine. Setting up Your Machine...

  • Page 26: Connecting The Cables

    Connecting the Cables CONNECTING THE ETHERNET CABLE Connect one end of your Ethernet LAN cable to an available port of your Ethernet Hub Connect the other end to the network port at the back of your @V2100. CONNECTING THE KEYBOARD CABLE Connect the cable of the keyboard to the PS2 port at the back of the @V2100.

  • Page 27: Connecting The Printer Cable

    CONNECTING THE PRINTER CABLE Connect one end of the printer cable (not included) to your printer. Connect the other end to the printer port of your @V2100. CONNECTING THE ADF CABLE Connect the ADF (Auto Document Feeder) cable (attached to the document(s) cover) to the ADF port at the back of the @V2100.
  • Page 28 Connect the other end to an appropriate power outlet. Setting up Your Machine 2-7 @V2100 User’s Manual...
  • Page 29 Press the power switch to the "I" position to turn on your @V2100. After showing the warming up message, the LCD display prompts the Copy ready status (present) as shown below. Note: You can leave your @V2100 ON at all times since the @V2100 is designed with a power saving function.

  • Page 30: Setting Up Your Network Parameters

    Setting up Your Network Parameters Before using the @V2100, please setup the @V2100 properly on your network to perform email and filing functions. The following network parameters have to be set. For required information and LAN connection, please contact your network administrator. To set up the network parameters via the control panel, 1.
  • Page 31 Note: *NTP Server: Stands for Network Time Protocol. To set the correct clock on the @V2100, it is recommended to fill in the IP address of your NTP server. For your information, following IP addresses of the NTP servers can be accessed. Simply choose one of them and fill the IP address in the NTP server field on the Network screen.

  • Page 32: Administration

    Administration This chapter describes how to perform the administrator activities either on the control panel or on the @V2100 web page. The access to the administrator activities is blocked by the administrator password. It is recommended that an administrator create a password before performing these activities.

  • Page 33: To Administer The @V2100'S Web Page

    To Administer the @V2100’s Web Page 1. Start your browser, either Netscape 4.0 or the I.E. 4.0. 2. Type the IP address of your @V2100 in the URL field of your browser. The @V2100 web page appears. 3. Click on Administrator to prompt the Administrator Login dialog. 3.

  • Page 34: Summary Of Administrator Activities

    Summary of Administrator Activities Configuration Settings Description Setup Menu General Device Name Displays the model name. Date/Time Current date and time. Time Zone Based on Greenwich Mean Time(GMT). Network Configuration IP Address IP address of your @2000. Subnet Mask The IP address of your subnet mask. Gateway The IP address of your gateway.
  • Page 35 Activities Description Setup Menu E-Mail Document Type The contents for your document. Choice: Text and Photo Compression Rate The compression level for the documents you send from the @V2100. Choice: Low, Medium, and High Filing File Name Prefix The file name for filing a document without extension. Using #Y#H#M#D#h#m#s makes file name change as time goes.
  • Page 36 Choice: Copy, E-mail, Filing Address Book Menu The email address sets for the @V2100. Up to 2000 email Email addresses are available to be set. After an email is sent, an auto-saving function will show up a dialog screen to ask the user whether to keep the sent address on the @V2100.
  • Page 37 Enter New New password for the administrator if the administrator Password wishes to create a new one. Note: Up to 8 characters are allowed. Verification Confirmation of the new password. Scroll to Yes to prevent any non-registered users from Enable Security for sending emails on the @V2100.

  • Page 38: Managing The Address Book

    Managing the Address Book Avision Java-Manager is a convenient browser-based tool to manage the address book of the @V2100 remotely. Since only the administrator can manage the address book, it is highly recommended that the administrator read this chapter before using the @V2100.
  • Page 39 Press the Administrator button to prompt the Login dialog. Enter the name and password of the administrator and press the "Submit" button. The Administrator screen appears. Press "¢I ddress" to prompt the Address Book dialog. Press the E-mail icon and choose "Add" to prompt the Add A New E-mail Address dialog.
  • Page 40 Enter a local user's name ,password ,and email address ,and click "Continue" for the next input or "Finish" to temporarily save the latest data and return to the main screen. Click Save to permanently save all the latest data on the @V2100, Exit to leave without saving any latest data.

  • Page 41: Modifying E-Mail Addresses

    MODIFYING E-MAIL ADDRESSES To modify e-mail addresses, Repeat Step 1 to Step 5 from the previous section, Adding E-mail Addresses. The Address book dialog appears. Click the E-mail icon and choose the address you want to modify from the list. A Modify E-mail address dialog appears. Modify your address.

  • Page 42: Deleting E-Mail Addresses

    DELETING E-MAIL ADDRESSES To delete e-mail addresses, Repeat Step 1 to Step 5 from the previous section, Adding E-mail Addresses. The Address Book dialog appears. Click the E-mail icon on the top and choose the addresses you want to delete from the list. Click "Delete"...

  • Page 43: Managing Your Groups

    Managing Your Groups ADDING NEW GROUPS To add new groups, Repeat Step 1 to Step 5 from the previous section, Adding E-mail Addresses. The Address book dialog appears. Click the Group icon and choose "Add" to prompt the Add A New Group dialog.
  • Page 44 Click "Continue" for the next input or "Finish" to temporarily save the latest data and return to the main screen. Click Save to permanently save all the latest data on the @V2100, Exit to leave without saving any latest data. Managing the Address Book 4-7 @V2100 User’s Manual...

  • Page 45: Modifying Groups

    MODIFYING GROUPS To modify groups, Repeat Step 1 to Step 5 from the previous section, Adding E-mail Addresses. The Address book dialog appears. Click the Group icon on the top and choose "Modify" to display the Modify A Group Set dialog. Choose one member you want to delete from the group and click the Ú...

  • Page 46: Deleting Groups

    DELETING GROUPS To delete groups, Repeat Step 1 to Step 5 from the previous section, Adding E-mail Addresses. The Address Book dialog appears. Click the Group icon and choose the group name you want to delete from the list. Click Delete to erase the number. A warning message appears to confirm your deletion.

  • Page 48: Managing Filing Folders

    5 Managing Filing Folders ADDING NEW FOLDERS To add a new folder, Repeat Step 1 to 4 from the previous chapter ,and click Folder icon to show up Favorite Folder dialog as shown below: Click Add to prompt the Favorite Folder dialog. @V2100 User’s Manual Managing Filing Folders...
  • Page 49 Fill/choose your favorite items on the above dialog by referring to the following direction: F o l d e r N a m e : Name a folder to hold all set- up information. (Note: The folder names can not be repeated.) P r o t o c o l : includes FTP, HTTP, and CIFS.

  • Page 50: Modifying Folders

    MODIFYING FOLDERS To modify a folder, Repeat Step 1 in the previous section, the Favorite Folder’s main screen appears , as below: Click Modify to prompt Favorite Folder dialog screen as below: Now, refer to the previous section to modify your folder content. Click Update to temporarily save the latest data ,or Cancel to exit.

  • Page 51: Deleting Folders

    DELETING FOLDERS To delete a folder, Repeat Step 1 in the previous section, the Favorite Folder’s main screen appears , as below: Click the Delete icon and choose the folder name you want to delete from the list. Click Delete to erase the number. A warning message appears to confirm your deletion.

  • Page 52: Operation

    Operation With an intuitive control panel, the @2000 is designed to be easy-to-use. Basically, operating the @V2100 takes three simple steps: Load your paper either in the ADF or on the glass. Type or select your recipient's destination. Press the "Mono" button or the "Color" button to execute the command of filing , copying, and E-Mailing your documents The following sections describe in detail the prerequisites you should know and the advanced features on how to send your document(s) ,make copy,...

  • Page 53: Loading Paper

    Loading Paper The @2000 can scan and send document(s) either in the ADF (Automatic Document Feeder) or on the glass. If you need to send multiple pages, please load your papers in the ADF. The ADF can hold up to 30 pages at one time. If you need to send pages from books, newspaper clippings, or paper with wrinkles or curls, please place your paper on the glass.

  • Page 54: Placing Document(S) In The Adf

    PLACING DOCUMENT(S) IN THE ADF Make sure your document is free of staples, paper clips and is not tore out. If you have multiple pages, fan your document(s) to avoid occasional paper jam. The ADF holds up to 30 pages at one time.

  • Page 55: Placing Document(S) On The Glass

    PLACING DOCUMENT(S) ON THE GLASS Open the document(s) cover to reveal the glass. Place your document(s) with the text FACE DOWN on the glass and align the document(s) in the upper - right corner of the glass. Close the document cover. Operation...

  • Page 56: Sending Emails

    Sending Emails Place your document(s) face up in the ADF or face down on the glass. Press the key. The LCD displays the Email screen. From: Subj: BCC: Memo: You can temporarily select your scanning resolution between Fine (75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi) and Super Fine (100 dpi, 150 dpi, 200 dpi,300 dpi, 400 dpi, 600 dpi) by pressing the Menu button and selecting E-mail then Fine Resolution or S.
  • Page 57 Note: You can send your document to e-mail addresses simultaneously. If the "Enable Security for Email" box has been checked, you have to enter the password to access the e-mail forwarding function. Stop/Clear If you make a mistake during the process, press the key to cancel and return to the factory default settings.

  • Page 58: Making Copy

    Making Copy BEFORE MAKING COPY Before making copy through the control panel, please do the following: Make sure that your printer supports PCL or Postscript printer language. Check if your printer has been properly connected to the @V2100. Operation 6-7 @V2100 User’s Manual...

  • Page 59: Choosing Printer Model

    CHOOSING PRINTER MODEL Please note that your @V2100 can be connected with various brands of laser printers as long as they are PCL- or PostScript-compliant. To ensure that the printing function works properly, a printer profile for the designated printer has been included in the machine. However, if you replace your current printer with another one, you need to download the printer profile for the new printer.

  • Page 60: Basic Operating Steps

    BASIC OPERATING STEPS To make simple copy, Place your document(s) either in the ADF or on the glass. Press the key to send your document(s) in black and white. Or press the key to send your document(s) in color. The LCD displays the scanning progress of the printing of your document(s) from your printer.

  • Page 61: Printer Compatibility List

    Ci 1100 Mita 4500/5000L FS-3750/5900/FS-9000/FS-1800 Kyocera T614/C710/M412 Lexmark 8C/8C plus/7400/7200 QL-7000 Samsung 330/CX2/6100/magicolor 2200 8200C/3000C/C820 EPSON P8415 Casio LBP730 Canon More will be added… Note: For the most updated printer list, please visit the Avision’s web site at http://www.avision.com 6-10 Operation...

  • Page 62: Accessing Copy Features

    ACCESSING COPY FEATURES You can access a variety of copy features before pressing the "Mono" or "Color" buttons. These features include: Changing Scaling Adjusting Density Choosing Copy Quality Choosing Paper Size Increasing Copy Count Focusing on Photo/Text/Auto CHANGING SCALING To reduce or enlarge the original document, 1.
  • Page 63 ADJUSTING DENSITY The @V2100 is preset to the Normal level of density. If your original document comes with a lighter or darker contrast, you can improve the quality using the Adjusting Density feature. To change your density, 1. Press the Copy button on the panel to prompt the Copy screen. 2.
  • Page 64 CHOOSING COPY QUALITY The @V2100 is preset to Fine copy quality, the setting suitable for most business document(s). If necessary, this setting can be changed to Super Fine copy quality. To choose your copy quality, Press the key to enhance your copy quality. The Super Fine button appears with a lit LED.
  • Page 65 CHOOSING PAPER SIZE Your machine is preset to Letter size. If your output paper size is different from Letter, change your output size with the touch of the buttons. To change your output paper size, 1. Press the Menu button ( ) on the Control Panel.
  • Page 66 INCREASING COPY COUNT The @V2100 is preset to 1 copy count. If you wish to increase the number of copies, choose your desired copy count with the numeric keypad or keyboard. To increase your copy count, 1. Press the Copy button on the Control Panel to prompt the Copy screen.
  • Page 67 FOCUSING ON PHOTO OR TEXT The machine is preset to auto mode. If required, you can change to photo or text if you wish to focus your copy result on photo or on text. To change your focus on photo or text, 1.

  • Page 68: Start Filing Document

    Start Filing Document 1. Place your document(s) face up in the ADF or face down on the glass. 2. Press the key. The LCD displays the Filing screen. FILING File Prefix: Folder: Password: Post Proc.: None You can temporarily select your scanning resolution between Fine (75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi, 400 dpi) and Super Fine (100 dpi, 150 dpi, 200 dpi,300 dpi, 400 dpi, 600 dpi) by pressing the Menu button,and selecting E-mail and Fine Resolution or S.
  • Page 69 Name : Myfolder Protocol : CIFS Server IP: 10. 1. 20.134 Directory : \ \ Your Computer \ FILINGFOLDER Server UID : Password : ***** Regarding all items above, refer to Managing Filing Folder chapter. 4. Select O K and press to return to the folder main screen, as below: Select...
  • Page 70 Below is the Win98 CIFS server sharing set up screen for your reference. Click Sharing As Root directory on the server Select Full Enter your password 5. The history moment is coming. Press the key to file your document(s) in black and white,or the key in color.

  • Page 71: Troubleshooting

    Troubleshooting Information Codes/Message INFORMATION CODES DURING SCANNING AND COPYING Info Meaning Action Page code 10001 SRAM Restart your @V2100. (Turn off and on again.) error If the code still appears, contact your dealer. 10002 DRAM Restart your @V2100. error If the code still appears, contact your dealer. 10003, Lamp Restart your @V2100.

  • Page 72: Information Codes During Networking

    MESSAGE DURING SCANNING AND COPYING LCD Message Action Page Copy function Please download the printer profile. disables. Check printer Check if the printer cable has been correctly cable or status. connected. Check if the printer is turned on. Restart the @V2100 and your printer. If the message still appears, contact your dealer.

  • Page 73: Information Codes During E-Mailing

    INFORMATION CODES DURING E-MAILING Info Meaning Action Page Code 30421 Service not available, Contact the network administrator. 31421 closing transmission 32421 channel. The Server is going to shut down. 31450 Requested mail action Check the “To” address. not taken: mailbox unavailable 31451 Requested action...
  • Page 74 Info Meaning Action Page Code 31551 User not local: please try Check the “To” address. again. 31552 Requested mail action 1. Check the “From” address. aborted: exceeded 2. Check the “To” address. storage allocation 3. Contact the network administrator.. 31553 Requested action not Check the “To”...
  • Page 75 Info Code Action Page Meaning CIFS fail to Check that server supports 57600 connect CIFS(SMB) connection. CIFS Network share Check directory in folder and 57601 name incorrect. make sure it follows UNC, like \\Computer\Share\directory. CIFS Login Fail Check user name and password for 57610 this folder.

  • Page 76: Clearing A Paper Jam

    Clearing a Paper Jam In the event of a paper jam, follow the procedures below to remove the paper: 1. Gently open the ADF front cover to the left. 2. Carefully pull the paper out of the ADF unit. 3. Close the ADF front cover. Your ¢I V2000 is now ready to use. Troubleshooting...

  • Page 77: Removing The Abnormal Line Image

    Removing the abnormal line image When the scanned image is with abnormal lines on it, clean the strip of glass area as indicated below. Clean this area. @V2100 User’s Manual Troubleshooting 7-7...

  • Page 78: Cleaning The Adf

    Cleaning the ADF From time to time the pad assembly and feeding rollers may become contaminated with ink, toner particles or paper dust. In this case the @V2100 may not feed documents smoothly. If this occurs please follow the cleaning procedures to return your machine to its original state. Moisten a cotton swab with isopropyl alcohol (95%).

  • Page 79: Cleaning The Glass

    Cleaning the Glass The @V2100 is designed to be maintenance-free. However, it still needs to be cleaned occasionally to ensure optimum image quality and performance. To clean the glass, Open the document cover as shown below. Dip a soft clean cloth with isopropyl alcohol (95%). Gently wipe the document glass and the white sheet beneath the document cover to remove the dust or any toner particles.

  • Page 80: Replacing The Snap-In Pad Module

    Replacing the Snap-in Pad Module After scanning approximately 20,000 pages through the ADF, the pad may be worn out and you may experience problems with document feeding. In this case, it is highly recommended to replace the pad module with a new one.
  • Page 81 Assembling Procedure Take out the ADF pad module from the box. Press both arms of the ADF snap-in pad module inwardly with your two fingers Place it into the holes until it snaps into place. @V2100 User’s Manual Troubleshooting 7-11...

  • Page 82: Technical Support

    No. 20, Creation Road I, Science-Based Industrial Park, Hsinchu 300, Taiwan, ROC TEL: +886 (3) 578-2388 FAX: +886 (3) 577-7017 EMAIL: service@avision.com.tw Web Site: http://www.avision.com US and Canada Avision Labs., Inc. 6815 Mowry Ave., Newark CA 94560, USA TEL: +1 (510) 739-2369 FAX: +1 (510) 739-6060 EMAIL: support@avision-labs.com...

  • Page 83: Appendix

    Appendix Quick Guide Placing Your Documents For multi-page transmission Place your document FACE UP in the ADF. For single-page transmission Place your documents FACE DOWN on the glass.
  • Page 84 Enter your copy count via the numeric keypad Press the Mono button to make B&W copy. COPY Press the Copy button. Press the Color button to make color copy. Enter an email address with your keyboard. Press the Mono button to E-MAIL or press "Address Book/Folders"...

  • Page 85: Specifications

    Specifications Items Specifications System Overview System Description Stand-alone Internet Appliance Output Quality 600 dpi, 36 bit color External Connections RJ-45 (for Network connection) SPP (for Copy application) RJ-11 (option, for PSTN connection) PS2 (option, for External standard PS2 keyboard) Internet Transmission Speed 200 dpi: 8 PPM (ADF, Letter, B/W, Gray, Color)
  • Page 86 Copy Output Format Postscript, PCL Speed for Local Copy B/W: 9 PPM Color: 1.5 PPM Multiple Copies Up to 99 Copy Mode Standard, High Quality Enlarge / Reduce Whole Page (97%) 25%~400% in 1% increment/decrement Pre-set Scales Customized Network/Internet Applications Connectivity Ethernet 10BaseT/100BaseTX auto-negotiation with RJ-45 connector...

  • Page 87: Index

    Index LCD-display, 1-4, 6-6 @V2000 web page, 3-1, 3-2 Loading Your Paper Adding "To" Address adding email addresses, 4-1 Via the ADF, Via the Glass, 6-2 adding new groups, 4-6, 5-1 Making Copies, 6-7 Address Book, 4-1 Managing Your E-mail Address Book adf, 6-3 Adding Email Addresses, Modifying Adjusting Density, 6-12...
