CONVAID USER'S GUIDE

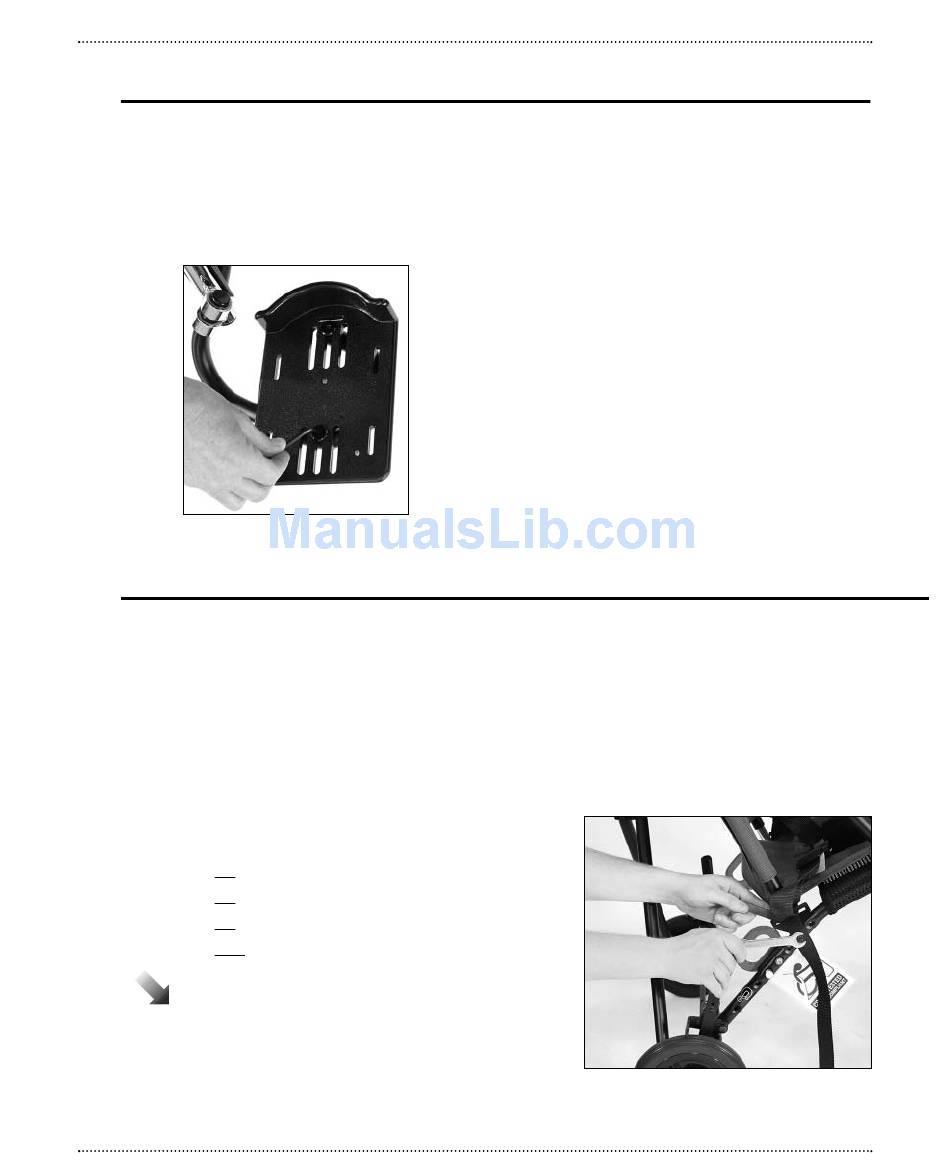

Footplate Depth Adjustment

All Cruiser, EZ Rider, Convertible, Scout, and Safari Tilt chairs offer
adjustable footplate depth.
Use the hex wrench to loosen the two bolts located on the top of the foot-
plate. Slide footplate forward or rearward to desired depth. Retighten
bolts. Fig. 36

Seat-to-Back Angle Adjustment

Depending on the user's degree of ability and prescription from your doctor
or physical therapist, you may want to adjust the back angle. Changing the
back angle can also be used to adjust the seat depth.
Partially fold chair to relieve fabric tension. Remove rubber ring from bottom
of fabric rod and slide upwards until it is clear of the bolt connecting the seat
tube to the back tube. Insert a screwdriver through the eyebolt to stop it
from turning, then use a wrench to remove the bolt. Relocate to desired posi-
tion. Repeat on other side. Fig. 37
Seat-to-back angle:
85° -
90° -
95° -
100° - fourth hole (for CA models only)
Note:
Back angle adjustment is available on
Safari Tilt and most Cruiser chairs.
For Safari Tilt instructions, see page 27.
11
Fig.36
lower hole
second hole
third hole
- Cruiser/CruisAire
Fig.37
