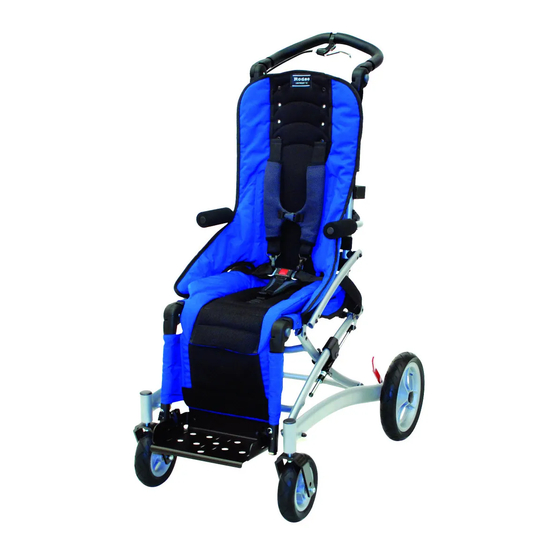

- Page 1 ENGLISH User and Service Manual Rodeo Lightweight Tilt-In-Space Wheelchair READ INSTRUCTIONS BEFORE USING SAVE THIS BOOK FOR FUTURE REFERENCE...
- Page 2 Convaid. Use only Convaid accessories and parts on Convaid products. Convaid parts are not interchangeable with other manufacturers’ products. Replace any worn parts immediately.
-
Page 3: Table Of Contents
Rodeo Without Seating Overview ........ - Page 4 CONVAID USER’S GUIDE Accessories Heavy Duty Under Storage Basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Full Torso Swing-Away Support Vest .
-
Page 5: Definition Of Symbols
If instructions are not clear and further explanation is necessary, please contact your Convaid provider. If you do not follow all instructions and warnings, serious injury or damage to the chair may occur. The latest version of all instructions and product safety notices are available on the Convaid website (www.etac.us.com) and... - Page 6 CONVAID USER’S GUIDE This symbol indicates a wheelchair This symbol indicates conformity which cannot be used in motor vehicle with RESNA WC-4 Section 19 as vehicle seat. This wheelchair does not requirements. comply with WC19 (RESNAWC-4:2012 for ISO7176-19:2008) and cannot be...
-
Page 7: General Cautions
The chairs are designed with smaller, rotating front casters for maneuverability with larger fixed wheels in the rear. The Rodeo chairs has options for positioning and support including but not limited to belts, harnesses, trays. - Page 8 • The chair is only intended to carry one user at a time. Do not carry more than one user at a time. • The weight capacity carried by the Rodeo chair must never exceed the total weight capacity of the chair (maximum occupant size plus any items carried).
- Page 9 CONVAID USER’S GUIDE • When going down a curb, approach the curb backwards. Lower the rear wheels down the curb and continue backwards, taking the weight off the front wheels so they can be gently lowered. • When transferring user to or from chair, apply foot wheel locks.
- Page 10 CONVAID USER’S GUIDE CAUTION: To prevent tipping: • The use of anti-tip tubes should be used if the user’s weight is less than 50lbs (22.7kg) • Do not hang items from the push handle to avoid tipping. • Be sure that the user does not lean out of the chair too far when reaching for objects in front, to the side, or behind the chair.
-
Page 11: Rodeo With Seating Overview
CONVAID USER’S GUIDE Rodeo with Seating Overview Chair Warning Label One Piece Height Adjustable Push Handle Never leave occupant unattended. Failure to read and follow user guide instructions Tilt Adjustment Lever could result in serious injury. To obtain a replacement user’s guide email sales.us@ convaid.com or call 844-876-6245. -
Page 12: Rodeo Without Seating Overview
CONVAID USER’S GUIDE Rodeo without Upholstery Seating Overview Chair Warning Label Never leave occupant unattended. Failure One Piece Height Adjustable Push Handle to read and follow user guide instructions could result in serious injury. To obtain a replacement user’s guide email sales.us@ Back Canes convaid.com or call 844-876-6245. -
Page 13: Specifications
CONVAID USER’S GUIDE Rodeo Specifications (Millimeters) Model Size RD 12 RD 14 RD 16 Seat Width Seat Depth 229 - 356 279 - 406 330 – 457 Seat Depth (without seating) 229 - 356 279 - 406 330 – 457... -
Page 14: Contents In The Box
Once you have all components as ordered, the directions for use in this User’s Guide will guide you through the process of preparing the chair for use. Convaid recommends the initial fitting, adjustments, and setup take place with the help of your Convaid Representative and/or Convaid Service Dealer. However, if the instructions contained in this user’s guide are followed carefully, a caregiver or attendant will be able to set up and assemble the... -
Page 15: Push Handle Adjustment
CONVAID USER’S GUIDE Setting Up Rodeo with Seating Overview 1. Press both gray buttons on the outside of the pivot joints of the push handle simultaneously. Fig. 3 2. While holding the buttons down, move the push handle up or down to the desired position. Fig. 4 3. -
Page 16: Unfolding The Chair
CONVAID USER’S GUIDE Unfolding the Chair 1. Lay chair down with seat facing upward. Fig. 7 2. Unbuckle closure strap. Fig. 8 3. Push in gray buttons on leg rest extensions and swing them out and upward until parallel with the ground. -
Page 17: Folding The Chair
CONVAID USER’S GUIDE 8. Adjust push handle and footplate into desired position. 9. If applicable, lower armrests, unfold lateral trunk supports and place seat cushion onto seat upholstery. Fig. 16, 17 & 18 Fig. 16 Fig. 17 Fig. 18 How to lift chair when unfolded: Fig. - Page 18 CONVAID USER’S GUIDE Fig. 25 Fig. 26 Fig. 27 4. Push in gray buttons on leg rest extensions, swing them upward until parallel with the ground. Fig. 28 Detach the calf panel and fold up footplate. Fig. 29 5. To disengage safety lock, grasp red levers and simultaneously squeeze them together with one hand.
-
Page 19: Fitting Guide
Improper seating can cause problems. Please consult a physical therapist or doctor for additional guidance. When properly fitted, Convaid chairs will provide years of comfortable use. As the user grows, refer back to this Fitting Guide to adjust the dimensions of the chair. -
Page 20: Seat Depth
CONVAID USER’S GUIDE Seat Depth Measure from the most posterior portion of the buttocks to the back of the knee. Subtract from that measurement 25 mm - 51 mm to allow adequate clearance between the seat and the back of the knee. Fig. 40 Fig. -
Page 21: Seat Depth Adjustment With Seating
CONVAID USER’S GUIDE Seat Depth Adjustment With Seating 1. Push the gray buttons on the leg rest extensions; swing them upward until parallel with the ground. Fig. 44 2. Peel off seat upholstery from the mesh seat support. Fig. 45 3. -
Page 22: Recline Function
CONVAID USER’S GUIDE Recline Function HELPFUL HINT: For ease of use, lift the push handle upwards during the entire recline process. Upright Position Step: 1 Rotate Push Handle upward: Push-in the Gray Push Buttons located on the side of the push Fig. -
Page 23: Fabric Removal
Fig. 57 Fig. 58 Fig. 59 To adjust upholstery for individual footplates: 1. Lay Rodeo on its side for easy access to area beneath seat 2. Undo all three Velcro straps beneath seat. ® 3. With upholstery extended, wrap upholstery underneath seat and refasten Velcro straps. -
Page 24: Seat Upholstery Attachment
CONVAID USER’S GUIDE Seat Upholstery Attachment The seat upholstery is attached to the mesh seat support with Velcro . The ® mesh support is attached to the seat frame with Velcro and Velcro straps. ® ® The mesh can be tightened or loosened from the side or rear to give the seat a supportive contour. -
Page 25: Three-Point Positioning Belt
CONVAID USER’S GUIDE Three-Point Positioning Belt To Buckle: Slip the metal clasp on the belt strap into the crotch strap buckle. Fig. 69 To Release: Press the gray button on the buckle and pull out the clasp. Fig. 69 Depth Adjustable Strap: The depth adjustable strap prevents the user from sliding out of the chair. -
Page 26: Footplate Adjustment
CONVAID USER’S GUIDE Footplate Adjustment All Convaid footplates are height adjustable. To determine the correct seat-to-footplate height, measure from the back of the knee to the bottom of the heel. Fig. 74 NOTE: By flipping the footplate upside-down, it allows you to accommodate shorter leg drops than the chair is otherwise able to do in standard configuration. -
Page 27: Individual Footplates
CONVAID USER’S GUIDE Individual Footplates To adjust minimum seat to footplate height: 1. Flip and swap the individual footplate assemblies. Fig. 79 & 80 2. Use a 5/32” Allen wrench to loosen the nuts and bolts from each footplate. 3. Slide the footplate out and adjust the lock pin to the upper locking position. -
Page 28: Footbox Cover
CONVAID USER’S GUIDE Footbox Cover To install footbox cover to one-piece footplate: 1. Attach the footbox cushion to the footbox base using the Velcro . Fig. 81 ® NOTE: Make sure the front flap of the box cushion is facing forward when attaching the cushion. -
Page 29: Wheels
CONVAID USER’S GUIDE Wheels Specifications The Rodeo comes standard with 190 mm x 51 mm front and 290 mm x 60 mm rear solid tires. When ordering replacements or pneumatic wheels, please have the following information available: • Chair model and size •... -
Page 30: Rear Tire Installation
CONVAID USER’S GUIDE Rear Tire Installation Fig. 87 Fig. 88 To install, slide wheel onto rear axle and push with ball of hand until it clicks into place. CAUTION: Always make sure the wheels are installed properly. You will hear a “click”... -
Page 31: Heavy Duty Under Storage Basket
Accessories Convaid offers a wide variety of supports to help properly position the user. NOTE: Convaid’s chairs provide a semi-contour fit around the body. The user must be fitted correctly into the chair to achieve optimal posture and comfort. Heavy Duty Under Storage Basket The Heavy Duty Under Storage Basket is designed for large or heavy support equipment, such as a ventilator. -
Page 32: Adjustable Firm Trunk Support
CONVAID USER’S GUIDE Adjustable Firm Trunk Supports The lateral thoracic supports help maintain midline positioning of the trunk. To adjust the lateral thoracic supports Fig. 93: 1. Release the double-sided Velcro support straps on the back of the chair to allow for vertical ®... -
Page 33: Headrest Extension
CONVAID USER’S GUIDE Headrest Extension Extends back height to provide head support for taller individuals. The headrest extension fits easily into sockets of the back frame. To adjust height, move rubber grommets on the mounting posts to desired position. Fig. 98 & 99 Fig. -
Page 34: Occi Headwing
CONVAID USER’S GUIDE Occi Headwing The Occi Headwing comfortably positions the head in alignment. To attach, thread the straps through the slits in the back upholstery and attach at the back of the chair. For added securement, thread laces through the grommet holes in the upholstery, and tie. Fig. 102–107. If the Occi Headwing is mounted to the headrest extension, wrap the straps around the headrest extension and secure by lacing the threads through the grommet holes. -
Page 35: Adjustable Canopy
CONVAID USER’S GUIDE Adjustable Canopy Installation: Align plastic canopy retaining clips with frame of the chair. Push on clips with the ball of your hand until they snap into place. Fig. 108 & 109 To open, grasp top of canopy and push forward and rotate downward. -
Page 36: Elevating Leg Rest
CONVAID USER’S GUIDE Elevating Leg Rest To Adjust Height: 1. Place your hand on the grey button located at the knee joint. Fig. 113 2. Press the grey button to adjust lower extremity to design angle and release button. Fig. 114 Fig. -
Page 37: Lateral Thigh Support (Adductor)
CONVAID USER’S GUIDE Lateral Thigh Support (Adductor) Pulls thighs together to improve hip alignment and stabilize sitting posture. Degree of adduction can be varied. 1. Cross the adductor flaps over the user’s thighs. 2. Wrap straps under and around the seat tube and attach with the buckle under seat. -
Page 38: Curb Tipper
CONVAID USER’S GUIDE Rodeo Curb Tipper 1. To install the curb tipper tube, align the tube angled upwards with the end of the round mobility base tubing located next to the rear wheel. Fig. 124 2. Push the spring button while positioning the curb tipper tube into the round mobility base tubing, and then push until the “release button”... -
Page 39: Caster Locks
CONVAID USER’S GUIDE Caster Locks 1. Engage caster lock by pushing the caster lock down. Push down Fig. 126 to engage Caster Lock 2. To disengage the caster lock, push the bottom portion of caster lock. Fig. 126 Push here to... -
Page 40: Optional Attendant Hand Brake
CONVAID USER’S GUIDE Optional Attendant Hand Brake Hand brakes help to maintain control of the chair when going down an incline. A moderate squeeze to the lever will slow the chair; a firm squeeze will stop the chair. Fig. 131... -
Page 41: Upper Extremity Support Surface (Tray)
CONVAID USER’S GUIDE Upper Extremity Support Surface (Tray) Trays assist in trunk stabilization and provide a solid surface for items. They feature a safety lip and are easy to clean. 1. Depress spring button on underside of armrest until tray mount tube pops out. -
Page 42: Height Adjustable Flip-Up Armrests
CONVAID USER’S GUIDE Height Adjustable Flip-Up Armrests The height adjustable flip-up armrests provide added support and positioning. Armrests “flip-up” out of the way for easy access into the chair, and adjust in height for added comfort. To attach or adjust the height of the armrests, remove the two screws from each bracket, adjust bracket to the desired height, and reinsert the screws. -
Page 43: Seat Cushions
CONVAID USER’S GUIDE Seat Cushions Support: General Use Cushion Flat foam with wooden insert Fig. 148 • Promotes stability and posture control and provides comfort for the user. • Waterfall front eliminates pressure points at the back of the knees. -
Page 44: Fitting
CONVAID USER’S GUIDE Fitting The fitting of the cushion should be done by a clinician. When fitted correctly, the cushion will help provide stable support and promote good posture. Consult your clinician for questions regarding individual needs. Select the cushion size to match the seat width and depth of the chair. Measure the distance between the back of the buttocks and the back of the knees. -
Page 45: Transit Models
NOTE: Tray, storage basket, canopy and oxygen tank bag must be removed during transport in bus or van, except when medically necessary. NOTE: Convaid recommends the use of all Transit Required Accessories during transportation in a motor vehicle; which include the H-harness with 3-point pelvic belt (used for positioning) and Headrest... -
Page 46: Transit Mode Instructions
Using the Rodeo Chair for Transportation in Motor Vehicles: The Transit Model Rodeo is for transporting users in motor vehicles when it is equipped with the OPTIONAL Transit feature and used in accordance with these instructions. The chair must be secured in a forward-facing position with Wheelchair Tiedown and Occupant Restraint Systems (WTORS), which meets the requirements of WC-4: section 18 or ISO 10542-2 Recommended Practice—Wheelchair... - Page 47 CAUTION: Do not use the chair if it has been involved in a crash. In the event that your Rodeo is involved in a crash, please contact the Convaid Service Dealer or Convaid Customer Service Representative in order to arrange an evaluation of your...
-
Page 48: Recommended Clear Zones In Vehicle
CONVAID USER’S GUIDE RECOMMENDED CLEAR ZONES IN VEHICLE Fig. 151 Fig. 152 The rear clear zone is measured from the rearmost point on an occupant’s head. The front clear zone is measured from the frontmost point on an occupant’s head. -
Page 49: Proper Use Of Equipment
Fig. 155. Your Convaid transit wheelchair can be easily secured by four-point strap-type tiedowns by attaching the hook end fittings of the tiedown straps to the four black securement-point brackets located on the four tubular legs of the wheelchair or by threading tiedown straps through the openings in the securement points. - Page 50 CONVAID USER’S GUIDE PREFERRED ANGLES OF FRONT AND REAR TIEDOWN N STRAPS Fig. 157 AND PREFERRED LOCATIONS OF FLOOR ANCHOR POINTS Fig. 156. Fig. 156 Fig. 157 Fig. 158 Fig. 159 FIG. 158: FRONT TIEDOWN STRAPS ANGLED AWAY FROM SIDES OF WHEELCHAIR.
- Page 51 CONVAID USER’S GUIDE STANDARD METAL CLIP FIG. 160 AT LOWER END OF SHOULDER BELT AND AT END OF OPTIONAL WHEELCHAIR-ANCHORED LAP BELT USED TO CONNECT TO PIN/BUSHING FIG. 161 ON LAP BELT OR ON WHEELCHAIR SECUREMENT POINT BRACKETS. Fig. 160...
-
Page 52: Restraining The Wheelchair Occupant
Annex A of WC19, may be ordered from Convaid at a nominal additional cost. To attach the lap belt to the wheelchair, secure the metal clips at the ends of the lap belt Fig. 160 to the pin/bushing connectors located on the wheelchair’s rear securement-point brackets. -
Page 53: Using Postural Belts & Supports
Ensure that belt webbing is not twisted as this may compromise safety. It is best for Rodeo to be transported with the seat in a relatively upright orientation. However, if the seat must remain in a tilted position for medical reasons, the seat back should not be reclined more than 30 º... -
Page 54: Trays & Other Wheelchair Components
WTORS Manufacturers Convaid is a wheelchair manufacturer and does not offer wheelchair tiedown and occupant restraint systems (WTORS). However, products that comply with current WTORS standards can be obtained from the following companies that specialize in crash-tested WTORS: Q’Straint, Sure-Lok, Unwin and Ortho Safe specialize in crash-tested tie-down systems and are in no... -
Page 55: Important Information
Chair Maintenance The following maintenance procedures should be conducted on a regular basis: Examine your Convaid product visually from time to time for possible wear and tear. Lubricant should be applied to frame and moving parts to maintain easy folding and adjustment. - Page 56 • Armrests & foam (cushioned parts) • Frame • Contacting a Convaid Dealer for service or • repair*** Use a non-toxic, hypoallergenic dry lubricant for all moving parts of the frame. ** Follow cleaning instructions for appropriate user hygiene. *** Repair or replacement of non-removable, worn or broken parts must be performed by a qualified service facility.
- Page 57 Reuse Your Convaid chair should undergo wipe-down disinfection before reuse. Please use a non-toxic, biodegradable disinfectant solution suitable for surface disinfection. Please check the following components for intactness before operation. (see MAINTENANCE CHART) Repair or replace if necessary: •...
- Page 58 Spare Parts If you need any spare parts for your chair, please visit or call the Convaid service dealer you purchased this chair from. If the part is not under warranty, you will receive an estimate of the cost and, if necessary, shipping instructions for the return of the chair for repairs.
-
Page 60: Warranty
Warranty Convaid warrants to the original retail purchaser of the Convaid product, that if any part thereof proves functionally defective in material or workmanship within the specified warranty period, such defective part will be repaired or replaced (at Convaid’s discretion) free of charge. Warranty service may be performed by Convaid service center or (at Convaid’s discretion) the factory.
