2.1 Power Connection

This product is powered through an on board DC jack which is anode inside and cathode
outside. If you prefer to power the board with terminal block, please visit our website for
the accessories package and install them manually.

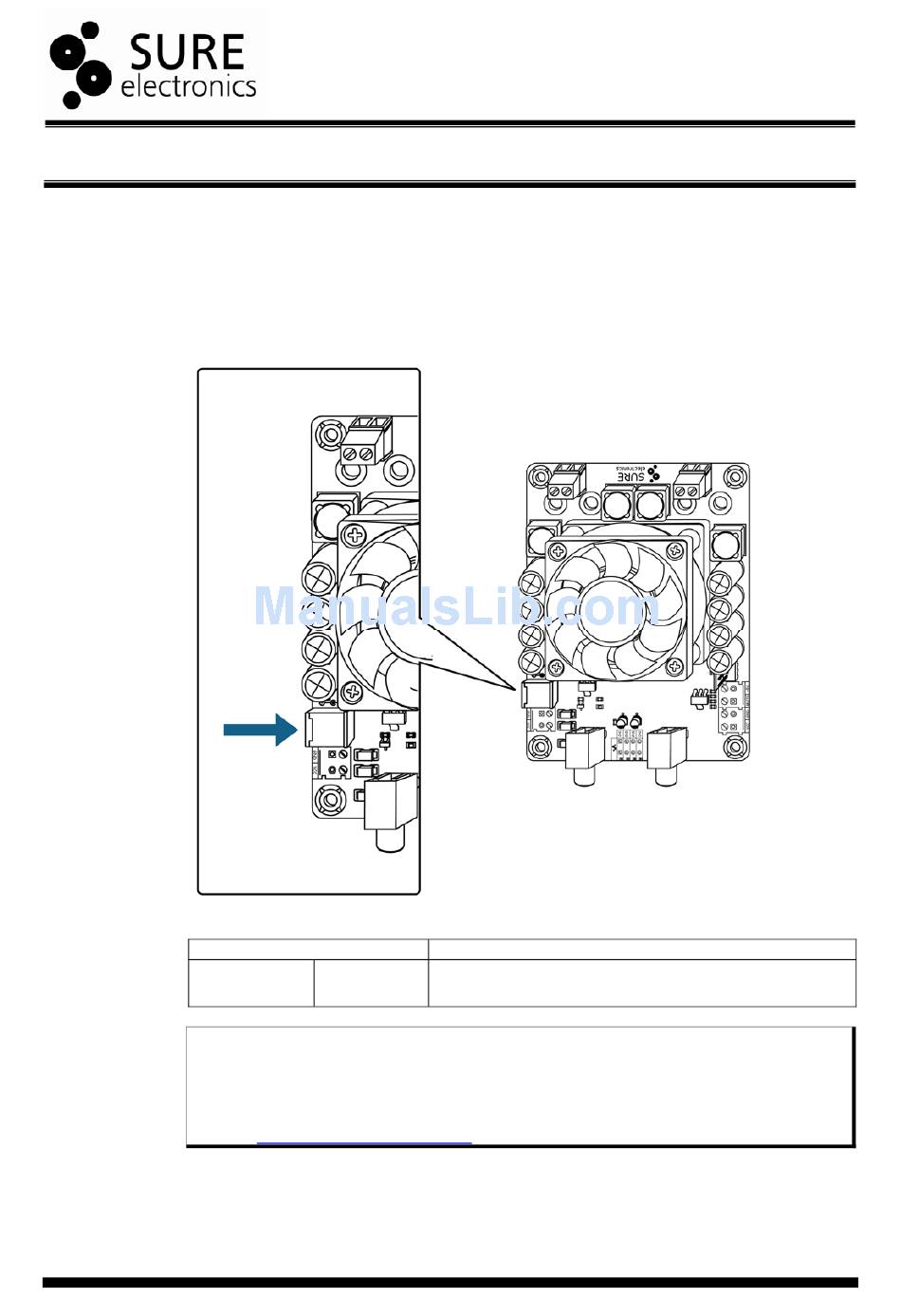

FIGURE 2-1 POWER CONNECTION
TABLE 2-1 POWER CONNECTION
Connector Mark
Jack
Note:
AA-AB32186_Ver1.0_Page 5
2 X 100WATT CLASS D AUDIO

Chapter 2. Hardware Detail

J6
1. You are allowed to use only one way to power the amplifier board at a time.
2. Never connect the power plug with wrong polarity; it will damage the amplifier
board permanently.
3. The maximum supply voltage shall be referred to Chapter 3.
4.
27V Switching Power Supply
AMPLIFIER BOARD - TK2050
Description
DC 10-30V power supply socket
is recommended.
