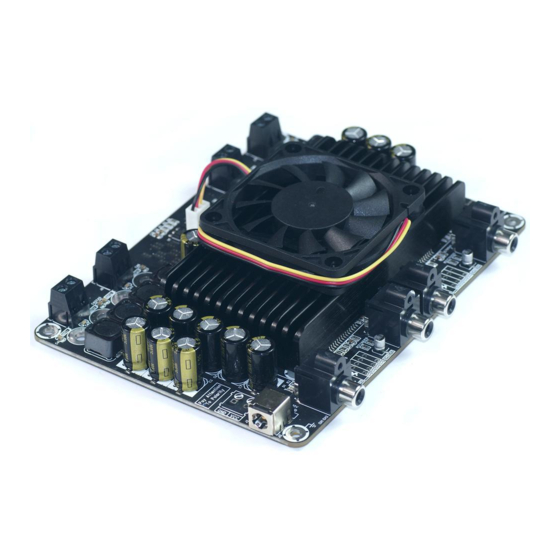

4x100 watt class d audio amplifier board

Advertisement

Quick Links

4 X 100Watt Class D Audio
Amplifier Board – T-AMP
User's Guide
© 2004-2012 Sure Electronics Inc.
AA-AB33182_Ver1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-AMP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sure Electronics T-AMP

  • Page 1 4 X 100Watt Class D Audio Amplifier Board – T-AMP User’s Guide © 2004-2012 Sure Electronics Inc. AA-AB33182_Ver1.0...
  • Page 2 4 X 100Watt Class D Audio Amplifier Board – T-AMP Note: Please read this manual carefully before you use the product. To keep the product in a best working condition and having a long service time, please operate it according to the relevant steps. The warranty lapses if the product is damaged because of incorrect use and your negligence.
  • Page 3: Table Of Contents

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Table of Contents Chapter 1. Overview ......................1 1.1 Overview ......................1 1.2 Accessories ......................1 1.3 Features ....................... 2 1.4 Applications......................2 1.5 Benefits ........................ 2 1.6 Quick Start ......................2 Chapter 2.
  • Page 4 4 X 100Watt Class D Audio Amplifier Board - T-AMP NOTES: : Product Version Ver 2.2 : Document Version Ver 1.0 © 2004-2012 Sure Electronics Inc. AA-AB33182_Ver1.0_Page ii...
  • Page 5: Chapter 1. Overview

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Chapter 1. Overview Overview Welcome to use this self-made 4*100W audio amplifier board which is a perfect class-D architecture integrated with Tripath’s high performance TC2000 and TP2050 chips supporting dual channel audio amplification.
  • Page 6: Features

    4 X 100Watt Class D Audio Amplifier Board - T-AMP 1.3 Features A perfect "Class D" architecture Frequency response: 20Hz to 20KHz(±3dB) Single end audio signal input Over/under voltage protection Over current protection Over temperature protection 1.4 Applications It is the ideal solution for any sound reinforcement installation or application needing an affordable compact PA system.
  • Page 7 Use a nearby sound source, such as MP3 or CD player to have a trial. This amplifier board can be deemed as qualified if you can hear the sound corresponding to that sound source © 2004-2012 Sure Electronics Inc. AA-AB33182_Ver1.0_Page 3...
  • Page 8: Chapter 2. Hardware Detail

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Chapter 2. Hardware Detail 2.1 Power Connection To power the amplifier board, use either jack J3 (inner +, outer -) or terminal blocks J2 (optional). Pay attention to the polarity when connecting power supply.
  • Page 9: Input Connections

    4 X 100Watt Class D Audio Amplifier Board - T-AMP 2.2 Input Connections You may use RCA connectors to input audio signal. FIGURE 2-2 INPUT CONNECTION TABLE 2-2 INPUT CONNECTION Connector Mark Channel Description Channel 1 Input Channel 2 Input...
  • Page 10: Dc Offset

    Note: Never adjust these potentiometers unless necessary, improper adjustment may damage your speakers. 2.5 LED Indicators This amplifier has 1 power LED indicator which is marked as “Power Indicator (D1)”. “Power Indicator (D1)” will be illuminated in green when power-up. © 2004-2012 Sure Electronics Inc. AA-AB33182_Ver1.0_Page 6...
  • Page 11: Volume Control

    4 X 100Watt Class D Audio Amplifier Board - T-AMP FIGURE 2-4 LED INDICATOR 2.6 Volume Control No potentiometer is provided for manually adjusting the volume. The volume control of sound source like MP3 or PC can be used to adjust the volume of the audio output or a 50KΩ...
  • Page 12: Chapter 3. Electrical Characteristics

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Chapter 3. Electrical Characteristics Following table lists all typical data of the Amp board.Stresses beyond the power supply range maximum ratings may cause permant damage. TABLE 3-1 ELECTRICAL CHARACTERISTICS...
  • Page 13: Chapter 4. Mechanical Drawing

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Chapter 4. Mechanical Drawing FIGURE 4-1 MECHANICAL DRAWING © 2004-2012 Sure Electronics Inc. AA-AB33182_Ver1.0_Page 9...
  • Page 14: Chapter 5. Contact Us

    4 X 100WATT CLASS D AUDIO AMPLIFIER BOARD - T-AMP USER’S GUIDE Chapter 5. Contact Us Sure Electronics Co., Ltd. East zone, 3F, Building 6 Jingang Technology Innovation Center No.108 Ganjiabian Rd (ZIP: 210000) Qixia District Nanjing P.R.China Tel: +86-25-68154800-860...
