Sure Electronics TDA2030 User Manual

Contact Us
Sure Electronics Co., Ltd.
East zone, 3F, Building 6
Jingang Technology Innovation Center
No.108 Ganjiabian Rd (ZIP: 210000)
Qixia District
Nanjing
P.R.China
Tel: +86-25-68154800-860
Fax: +86-25-68154891-832
Website: www.sure-electronics.com
Email: customerservice@sure-electronics.com
4
10Watt Class-AB Mono Power Amplifier Kit - TDA2030 User's Guide
Overview

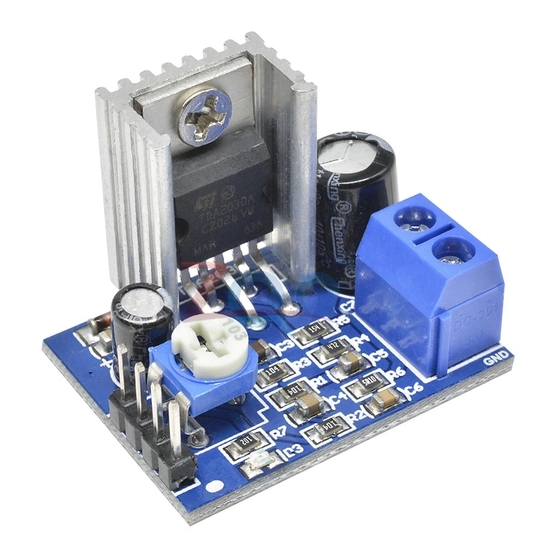

This kit is a low frequency Class-AB audio power amplifier kit using a TDA2030 power
amplifier IC. Comes with this kit is a monophonic audio amplifier, Printed Circuit Board,
capacitors and resistors.
This kit is capable of delivering 10W power and features high output current, low distortion,
short circuit protection and thermal shutdown. This kit can be powered by a wide range of
4.5V to 25V. Moreover, all components are through-hole and can be easily to be soldered to
the PCB. This kit includes:
Item
R4
R7
Resistors
R8
R1,R3,R5,R6
C1,C5,C6
Capacitors C2,C4,C7,C8
C3,C9,C10
Amplifier Chip U1
LED D1
Printed Circuit Board
Heat Sink -
Screws -
Nuts -
Note: As to audio signal input and output, we don't provide components which should be
prepared by users themselves.
Description Quantity
680ohm 1/4W 1
4.7ohm 1/4W 1
4.7Kohm 1/4W 1
22Kohm 1/4W 4
470uF(684K) electrolytic 3
1uF(105) monolithic 4
22uF 35V electrolytic 3
TDA2030 TO-220 1
3mm Green 1
61.00(L) × 45.70(W) × 1.60(H)
1
±0.20mm
- 1
For fixing heat sink and the chip 3
For fixing the chip 1
1
