Summary of Contents for SVAT GX301

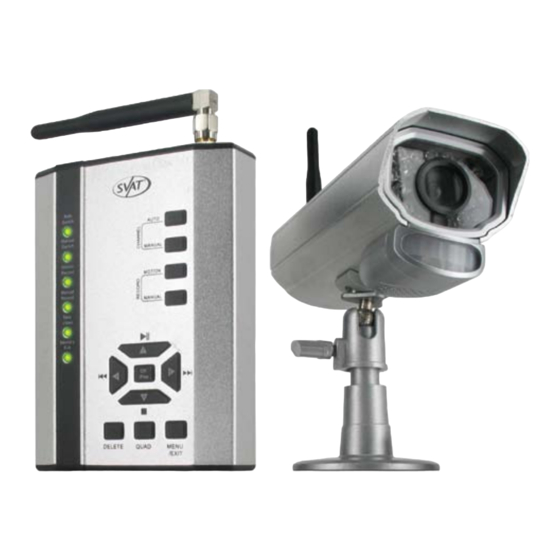

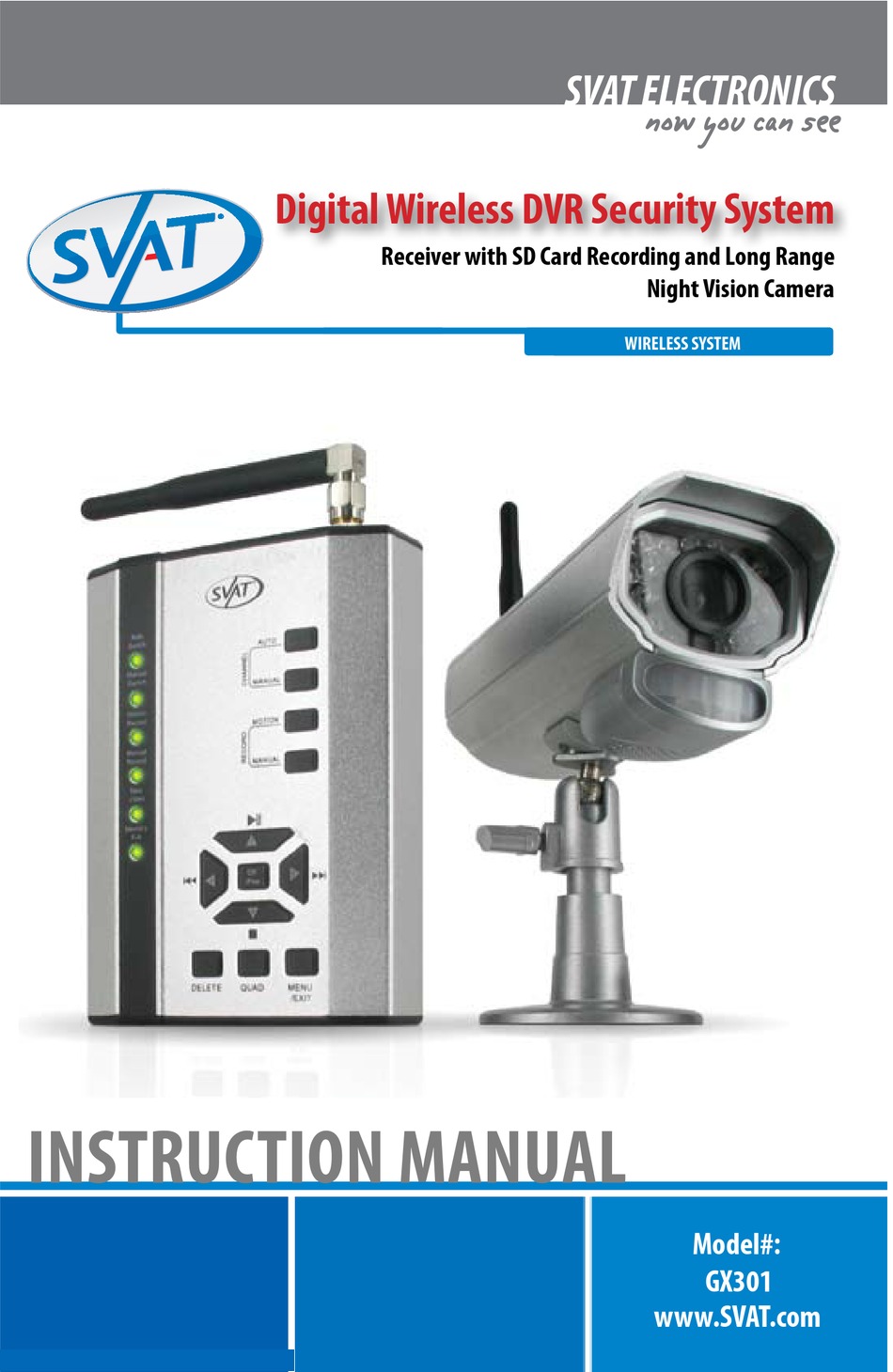

- Page 1 SVAT ELECTRONICS now you can see Digital Wireless DVR Security System Receiver with SD Card Recording and Long Range Night Vision Camera WIRELESS SYSTEM INSTRUCTION MANUAL INSTRUCTION MANUAL Model#: V1.1 Model #: GX301 GX301 V. 1.0 www.SVAT.com...
-
Page 3: Product Warranty Information
Warranty Terms SVAT products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials. This warranty is limited to the repair, replacement or refund of the purchase price at SVAT’s option. -
Page 4: Table Of Contents
Feel secure in knowing that you will never miss a thing with your GX301 allowing you to see, hear and record events which are happening at all times. -
Page 5: Features
TABLE OF CONTENTS SVAT ELECTRONICS now you can see Settings...........................20 Date and Time ............................21 Brightness ............................21 AV Out ..............................22 Format the SD Card ..........................22 Digital Zoom ............................23 Default ...............................23 PLAYBACK ..........................24 Watching Recorded Footage Through receiver ....................24 Playback Buttons ............................25 Delete .................................25... - Page 6 1. IR illumination range up to 40ft under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application. 2. Not for use in direct exposure to water, rain or snow. Although the cameras are water resistant they are not waterproof. 3. Recording in quad screen mode not supported. Single channel recording only For more information: Please visit www.SVAT.com GX301...
-
Page 7: What's Included
Power Adapter for Receiver • IR extension cord • Manual • RCA to RCA (male) cable ALTERNATE KITS GX301 - 013 The following kits have the following items included (as well as what is Additional Camera mentioned above): ADDITIONAL ACCESSORIES PX 301-C Additional... -
Page 8: Buttons And Connections
BUTTONS AND CONNECTIONS SVAT ELECTRONICS now you can see RECEIVER 1 2 3 4 19 20 21 14 15 16 GX301... - Page 9 BUTTONS AND CONNECTIONS SVAT ELECTRONICS now you can see Receiver 1. Auto Channel: Turns auto channel on and off. When this function is on, the camera channels will sequence through automatically 2. Manual Channel: Manually changes which camera is viewed on screen 3.
-
Page 10: Remote
BUTTONS AND CONNECTIONS SVAT ELECTRONICS now you can see REMOTE The buttons on the remote hold the same functions as the buttons on the receiver, with three exceptions: 1. Scan/Delete: Pressing this button will delete footage. The scan function is not compatible with this particular system. -
Page 11: Installation
• Decide whether the camera will be wall-mounted, or mounted on a desk/table top. We recommend that the mount is secured using the included screws and hardware for all installations AVOIDING INTERFERENCE The GX301 utilizes clear signal technology, meaning that it is designed to avoid the frequencies of common wireless devices. -
Page 12: Mounting The Camera
INSTALLATION SVAT ELECTRONICS now you can see MOUNTING THE CAMERA Adjust camera to desired viewing angle 1. Decide if the camera will be wall-mounted or sitting on a desk/tabletop. The camera can be adjusted for many mounting scenarios by rotating it to the required position. -
Page 13: Plugging In Receiver
PLUGGING RECEIVER INTO A MONITOR The GX301 comes equipped with an audio/video cable that can be plugged into any monitor with an audio/video input. Once plugged in, you will be able to watch and hear live video, access and view the menu as well as watch playback footage from your SD card. -
Page 14: Ir Extension
SVAT ELECTRONICS now you can see IR EXTENSION The GX301 comes equipped with an IR extension. This IR extension is for the remote control, it allows for a better signal between the remote and receiver. To connect IR extension: Plug IR extension in 1. -
Page 15: Getting Started
INSERTING SD CARD INTO RECEIVER The GX301 comes equipped with a 2GB SD card. The SD card will be what the recorded footage is saved to. You are able to watch the recorded footage from the SD card through the receiver or through your computer using an SD card reader. -
Page 16: Camera Viewing
CAMERA VIEWING SVAT ELECTRONICS now you can see To manually switch through cameras: • Press the “manual” channel button To have the cameras sequence through automatically: • Press the “auto” channel button To view all paired cameras at once: • Press the quad button. When the quad button is pressed scheduled recording will not take place; however, motion record will. -
Page 17: Main Menu
MAIN MENU SVAT ELECTRONICS now you can see The main menu has the following options: • Camera On/Off menu • Record menu Main Menu • Pairing menu • Setting menu Menu Basics • To access the main menu, press the menu button •... -
Page 18: Record Menu
MAIN MENU SVAT ELECTRONICS now you can see RECORD MENU The record menu allows you to adjust the quality of your recorded footage, adjust the recording time when motion is detected, set and adjust a daily schedule, and turn on/off the overwrite functions. -
Page 19: Trigger Record
MAIN MENU SVAT ELECTRONICS now you can see TRIGGER RECORD Trigger record allows you to adjust how long your camera records after motion is detected. You have the option of 5 seconds, 15 seconds and 30 seconds. To adjust trigger record: Trigger Record 1. -
Page 20: Overwrite
MAIN MENU SVAT ELECTRONICS now you can see OVERWRITE You have the option to record over old footage once your SD card is full; this is so your device will always record when prompted. The device will record new footage over the oldest footage. If you choose not to have your device overwrite saved footage, the device will stop recording once the SD card is full. -
Page 21: Date And Time
MAIN MENU SVAT ELECTRONICS now you can see DATE AND TIME You are able to adjust the date and time on your receiver. The years range from 2000-2099 and the clock is based on a 24hr clock. To adjust the date and time: Set Date and Time 1. -
Page 22: Av Out
MAIN MENU SVAT ELECTRONICS now you can see AV OUT The AV out menu represents the video standard NTSC and PAL are the two most common types of video standards in the world, adjusting this will effect video output. North America uses the NTSC video standard. Therefore, if you are living in North America, leave this setting set to NTSC. -
Page 23: Digital Zoom
MAIN MENU SVAT ELECTRONICS now you can see DIGITAL ZOOM You have the option to zoom the picture in x2. This is good if you are trying to monitor something that is situated far away or if you would like to get a better look at something you are monitoring. -
Page 24: Playback
PLAYBACK SVAT ELECTRONICS now you can see You can playback recorded footage that is saved on your SD card through the receiver as well as backup and play recorded footage through a computer equipped with a SD card reader. WATCHING RECORDED FOOTAGE ON RECEIVER 1. -
Page 25: Playback Buttons
PLAYBACK SVAT ELECTRONICS now you can see PLAYBACK BUTTONS Δ Up Arrow/Pause/Play: Pressing this button will pause the footage and pressing it while the footage is paused, rewinding, fast forwarding or stopped will play the recorded footage again Left Arrow/Rewind: Pressing this button will rewind the recorded footage. -
Page 26: Computer Playback
COMPUTER PLAYBACK The removable SD card allows you to open, save and play recorded files from your GX301 on your computer. All you need is a SD compatible card reader and a media player that supports .avi files. -
Page 27: Backing Footage Up On A Computer
PLAYBACK SVAT ELECTRONICS now you can see BACKING FOOTAGE UP ON A COMPUTER Open folder to view files Open video folder Videos organized by date Footage organized by time To save recorded footage on your computer: 1. Lightly push the SD card on the front of the receiver to unlock it from its position and then remove it from the SD slot. -
Page 28: Troubleshooting
TROUBLESHOOTING SVAT ELECTRONICS now you can see No Picture/Signal • Make sure all the connections are secure and properly connected • Make sure your receiver is plugged into a power source from the 9VDC input on the back • Make sure there is nothing obstructing the view of the camera •... -
Page 29: Specifications
TROUBLESHOOTING SVAT ELECTRONICS now you can see My Unit has Scrolling • Ensure that the device is set to NTSC. For more information please horizontal lines see “AV OUT” on Pg. 22 Schedule record is not working • Ensure that both manual and motion record modes are turned OFF... -
Page 30: Receiver
SPECIFICATIONS SVAT ELECTRONICS now you can see RECEIVER Wireless Frequency ....................2400~2483.5Mhz Channel Frequencies ....................Hopping Frequency Number of Cameras Supported .................4 Output Terminal ......................1/8th inch to RCA A/V output Resolution .........................640x480 or 320x240 Speaker ........................Internal Buzzer Maximum SD Card Size ....................32 GB Compression ......................MPEG-4... -
Page 31: Replacement Parts/Additional Accessories
REPLACEMENT PARTS SVAT ELECTRONICS now you can see If you accidentally damage or lose any parts they can be replaced with ease. The following are parts that came with your system and their reference model numbers so you can continue to effectively monitor your premises. -
Page 32: Drilling Template
DRILLING TEMPLATE SVAT ELECTRONICS now you can see Cut along the dotted line for a drilling template. DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS AREAS DRILL HOLES IN DRILL HOLES IN THE MARKED THE MARKED AREAS... - Page 34 Disclaimer SVAT does not endorse the use of any SVAT products for illegal activities. SVAT is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a SVAT product is in use by the consumer.
