SVAT Do-It-Yourself Compact DVR Security System CLEARVU2 Instruction Manual

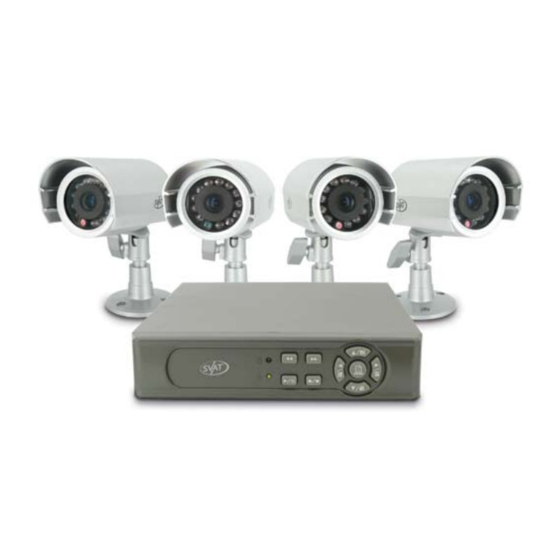

Do-it-yourself compact dvr security system w/ 4 hi-res indoor/outdoor night vision ccd surveillance camera
Hide thumbs
Also See for Do-It-Yourself Compact DVR Security System CLEARVU2:
- Specifications (2 pages)
Related Manuals for SVAT Do-It-Yourself Compact DVR Security System CLEARVU2
Summary of Contents for SVAT Do-It-Yourself Compact DVR Security System CLEARVU2

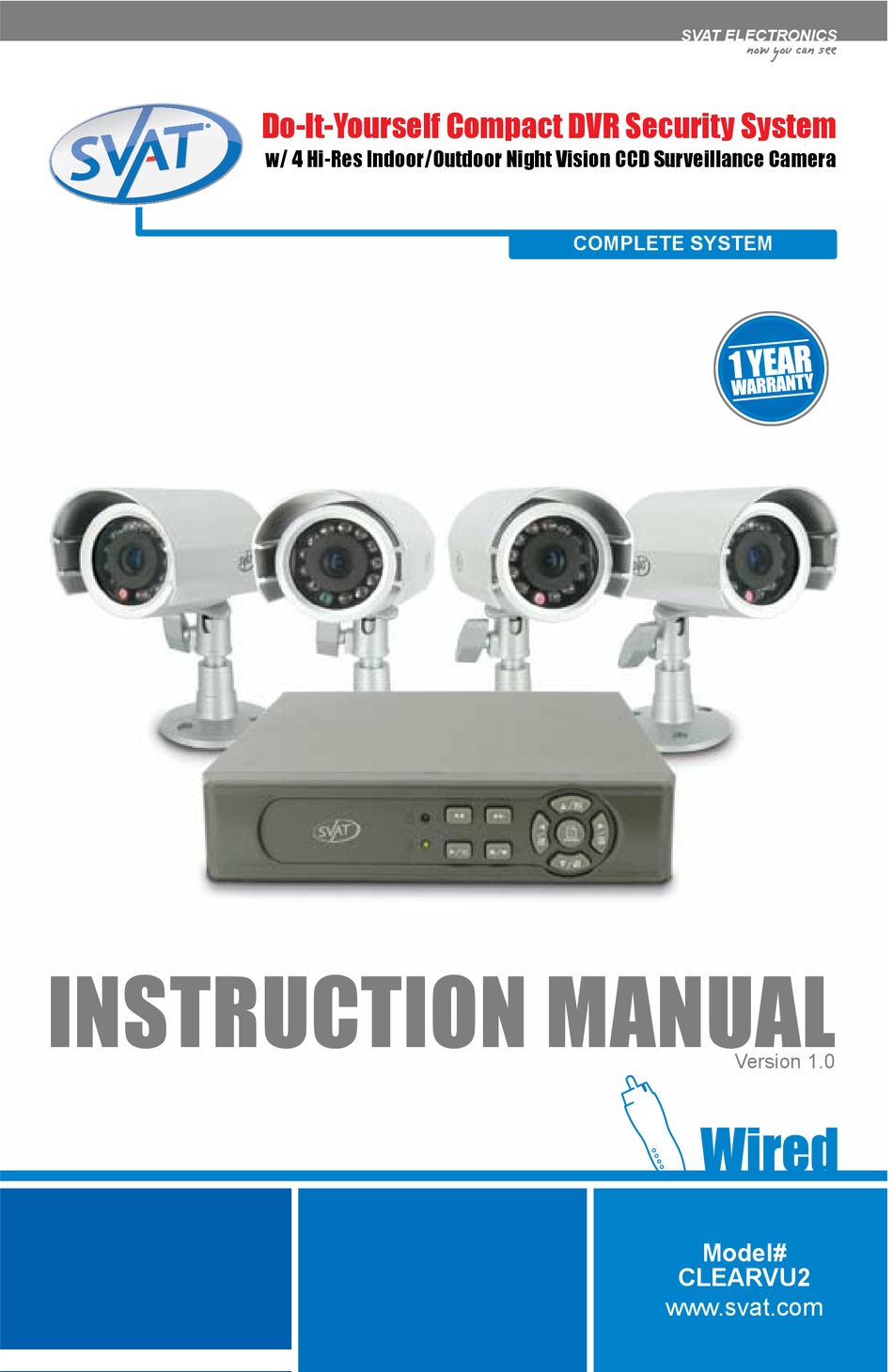

- Page 1 SVAT ELECTRONICS now you can see Do-It-Yourself Compact DVR Security System w/ 4 Hi-Res Indoor/Outdoor Night Vision CCD Surveillance Camera COMPLETE SYSTEM INSTRUCTION MANUAL Version 1.0 Model# CLEARVU2 www.svat.com...
-
Page 2: Need Help
If you have forgotten your DVR password, please email customer support at: support@svat.com. For more product information visit www.svat.com NEED HELP? Online live web chat: www.svat.com/support Toll free fax: 1.888.771.1701 . If the DVR password is enabled, enter SVAT ELECTRONICS now you can see... -
Page 3: Product Warranty & Registration
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating maintenance (servicing) instructions in the literature accompanying the appliance. CLEARVU2 SVAT Electronics Canada 4080 Montrose Road Niagara Falls, ON Canada L2H 1J9... -
Page 4: Table Of Contents
Timer Rec Frame Rate ...15 Motion Rec Frame Rate ...15 Motion Rec Time ...15 Record Mode ...15 Time Recording [T] ...16 Motion Recording [A] ...16 Time Motion (Mixed) [M] ...16 Disable Recording [–] ...16 CLEARVU2 TABLE OF CONTENTS SVAT ELECTRONICS now you can see... -
Page 5: Introduction
Thank-you for purchasing the CLEARVU2 DVR system. Correct installation and use of this system will greatly increase the security in your home or business. Please read through this manual and carefully follow the instructions to get the most out of your CLEARVU2 DVR system. CLEARVU2 SVAT ELECTRONICS now you can see... -
Page 6: Product Features
SVAT ELECTRONICS now you can see PRODUCT FEATURES CLEARVU2... -
Page 7: What's Included
SVAT ELECTRONICS now you can see WHAT’S INCLUDED BUTTONS & CONNECTIONS CLEARVU2... -
Page 8: Installations
You may wall mount or desk mount these cameras. Wall Mounted Adjust cameras to the desired viewing angles. Please refer to the CV67 manual for a drilling template for your camera CLEARVU2 SVAT ELECTRONICS Desk Mounted now you can see... -
Page 9: Wiring The Cameras
60 ft video/power wire. 5. Connect the 60ft video/power wire’s male RCA plug to the VIDEO IN port for channels 1~4. SVAT ELECTRONICS now you can see 3. Plug the camera’s power adapter into an AC outlet. -
Page 10: Connection Diagram
Attach the other end of the RCA (male) wire to the VIDEO IN port on your TV/monitor. Ensure that your TV/monitor is set to the proper VIDEO INPUT channel. Note: Refer to the TVs remote control user manual if you cannot change the input CLEARVU2 SVAT ELECTRONICS now you can see... -
Page 11: Powering On
Use the channel buttons (1-4) to enter the password. The default password is (111111). CLEARVU2 button. button first before playing back footage or entering the button to enter playback mode. button to enter the setup menu. If the DVR password is SVAT ELECTRONICS now you can see... -
Page 12: Record Mode
2. A screen will appear that displays a list of all your recorded footage, organized by date and time. Scroll to the desired date and time using the ▲/1▼/3 buttons. Press the CLEARVU2 SVAT ELECTRONICS now you can see button to start playback. -
Page 13: Main Menu
Live Mode. Note: A maximum of 63 events can be recorded MAIN MENU System Setup CLEARVU2 SVAT ELECTRONICS now you can see • Press to enter system setup. Use the channel buttons (1-4) to enter a password. -
Page 14: Time Setup
2. To change the password, select “PASSWORD CHANGE.” On the next screen, use the 1-4 channel buttons to enter the current password. Then enter a new password, and enter it again to confirm. CLEARVU2 SVAT ELECTRONICS now you can see Ensure that your system time is accurate so that your recorded footage will be labeled with the correct event time. -
Page 15: Load Default
Load Default Language Setup Version CLEARVU2 SVAT ELECTRONICS now you can see Use this option to reset the DVR to factory defaults. Please note that this will erase all your custom settings, but your recorded footage will be preserved. To reset your DVR to factory defaults and erase your custom settings: Select “LOAD DEFAULT”... -
Page 16: Camera Setup
Use the ▲/1 &▼/3 buttons to select the camera title you want to enable/ disable. Then press the ►/4 button to enable or disable that camera title. Camera Setting CLEARVU2 SVAT ELECTRONICS now you can see This submenu allows you to adjust options for each camera: 1. -
Page 17: Ch1-Ch4 Title
EACH mode will record all four cameras and allow you to view each camera individually during playback. It is recommend that you use EACH mode. CLEARVU2 SVAT ELECTRONICS now you can see To rename the camera titles, select the letter you want to change using the ▲/1▼/3 buttons... -
Page 18: Video Quality
Use the ▲/1▼/3 buttons to select the hour of the day, and press ►/4 to change the type of recording for the specified hour of the day. CLEARVU2 SVAT ELECTRONICS now you can see This menu allows you to set up the preferred type... -
Page 19: Time Recording [T]
Press ►/4 to turn HDD full alert ON/OFF. The HDD full alert will sound when the hard drive is full and you do not have it set to overwrite. CLEARVU2 SVAT ELECTRONICS now you can see to confirm your recording schedule. -
Page 20: Buzzer Time
SVAT ELECTRONICS now you can see Buzzer Time Press ►/4 to adjust the amount of time in seconds (0-30 sec) that alerts will sound. You can also set the alert to continuous or off. Event List Time Search Use this option to search the DVR for a specific recorded event by time. -
Page 21: Format
2. Enter your password (if enabled) to confirm (Default 111111). Copy CLEARVU2 SVAT ELECTRONICS now you can see Use this option to back up your recorded footage onto a USB flash drive for viewing on your PC. -
Page 22: Erase Video Data
1. Press ►/4 to toggle between the two modes. Note: If the DVR is on Overwrite, the hard drive will be cleared once it has reached maximum capacity. This will allow for continuous uninterrupted recording. CLEARVU2 SVAT ELECTRONICS now you can see... -
Page 23: Hdd Size
SVAT ELECTRONICS now you can see HDD Size This number indicates the size of the hard drive (in megabytes). HDD Used This number indicates how full the hard drive is (in megabytes). HDD Format To erase the hard drive, select this option and press ►/4. Enter your password to confirm. Warning: This will erase all your recorded footage. -
Page 24: Software Installation
Click this button to play back recorded materials (stored on PC). You must have captured footage using CLEARVU2 Review Play Quad split screen display CH2 Full Screen Display CH4 Full Screen Display in order to use this function. SVAT ELECTRONICS now you can see... -
Page 25: Capturing Images/Video To Your Computer
3. To view your captured video, press playback mode. 4. A dialog box will open, allowing you to select the file to play back. After you select the file, click Open to begin playback. SVAT ELECTRONICS now you can see to switch to capture... -
Page 26: Dvr Player Troubleshooting
To switch between cameras during playback, you must have recorded in EACH mode. Change this setting using Type. SVAT ELECTRONICS now you can see >Record Setup>Record Mode. If a line >Record Setup>Record... -
Page 27: Specifications
Single/Quad English/Chinese Menu, Stop Recording Color, Brightness, Contrast Proprietary Proprietary Review, Play, Fast Forward, Pause, Stop Aluminum Black DC12V/2A AC 100~240V 50/60 Hz (adapter) 41°F ~ 104°F <80% 9.375” x 7.75” x 1.75” 3.15lbs SVAT ELECTRONICS now you can see... -
Page 28: Ccd Color Camera
0 lux 850nm NTSC 60 Degrees 1/60 ~ 1/100000 sec Automatic Automatic Automatic Anodized Aluminum Black >48dB -14°F ~ 122°F DC 12V 300mA 120V 60Hz 5.5” x 5” x 2.44” (with stand) 0.85lbs (with stand) SVAT ELECTRONICS now you can see... - Page 29 SVAT ELECTRONICS now you can see SVAT SUPPORTS CRIME STOPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 30 SVAT ELECTRONICS now you can see SVAT SUPPORTS CRIME STOPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line an mail in. CLEARVU2 www.svat.com...
-
Page 31: Customer Information Card
Serial Number of Product: Purchase Date: Place of Purchase: NOTE: We recommend that you keep a record of your purchase receipt with your manual for any future returns or support issues. CLEARVU2 NOTES Customer Information Card SVAT ELECTRONICS now you can see www.svat.com... -
Page 32: Visit Us On The Web
SVAT is not responsible or liable in any way shape or form for any damage, vandalism, theft or any other action that may occur while a SVAT product is in use by the purchaser. SVAT ELECTRONICS ► Specification Sheets ► Software Updates ►...
