Summary of Contents for SVAT GX5201
-

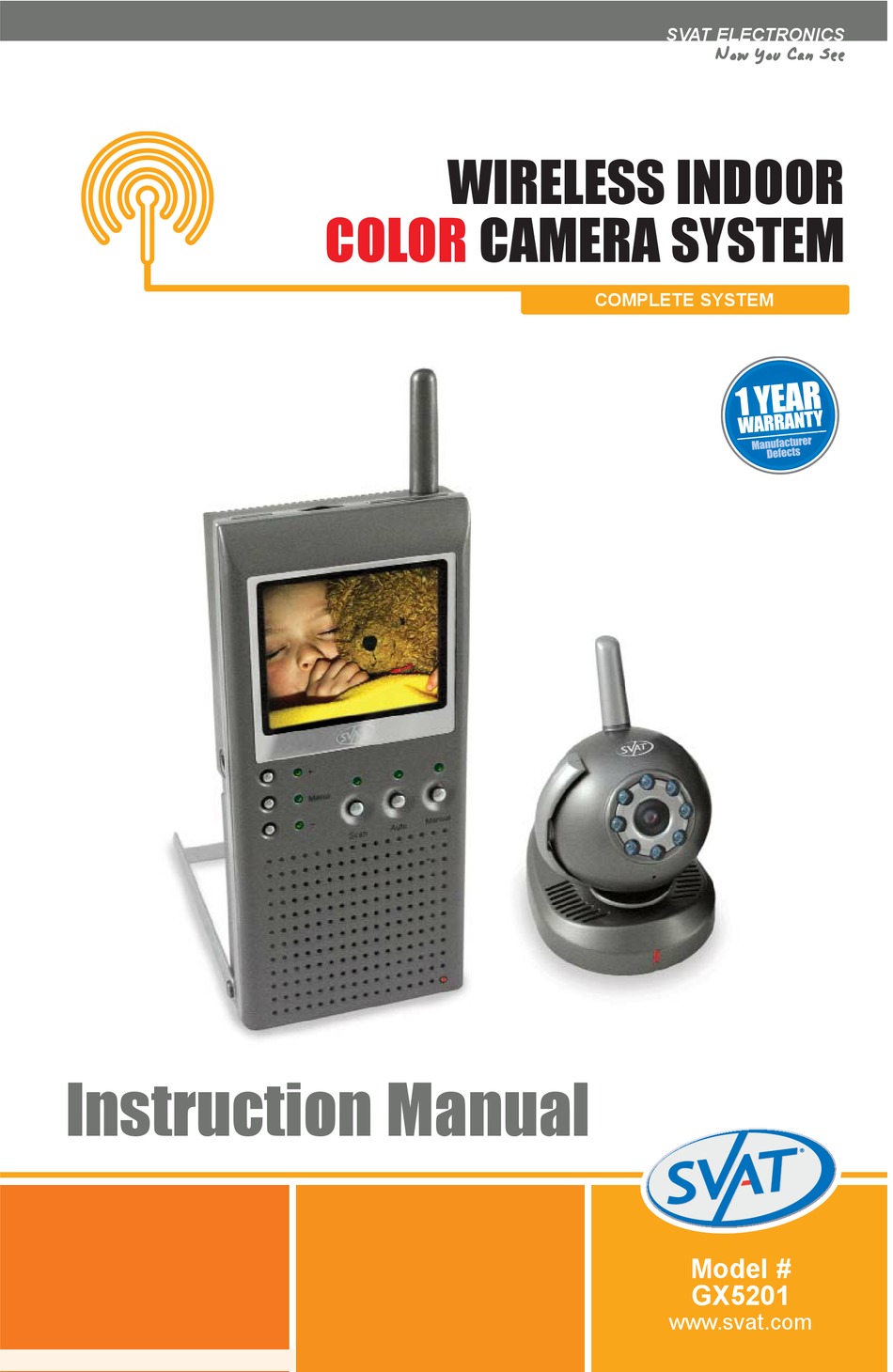

Page 1: Instruction Manual
SVAT ELECTRONICS Now You Can See WIRELESS INDOOR COLOR CAMERA SYSTEM COMPLETE SYSTEM Instruction Manual Model # GX5201 www.svat.com... -
Page 2: Product Warranty & Registration
We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... -
Page 3: Table Of Contents
WHAT IS INCLUDED 1 Monitor 1 Camera 1 RCA Wire 2 Power Adapters WHAT IS COMPATIBLE The GX5201 is compatible with TVs, VCRs, DVRs, computers and other SVAT systems including: WSE103 WSE201 GX5201 - 2 Window Warning Stickers - Mounting Hardware... -
Page 4: Features
4. You can adjust the sensitivity for the sound alert feature by adjusting the sound trigger dial found beside the camera's antenna (explained further in Advanced Features) 5. The camera installation is now complete. GX5201 SVAT ELECTRONICS Now You Can See... -
Page 5: Installing The Monitor
RF interference. ADVANCED FEATURES Multi-Camera Operation The GX5201 is designed to work with up to 3 cameras. Additional cameras are sold separately (indoor - GX515 / outdoor - GX522). IMPORTANT: When using more than one camera, make sure each camera is assigned to a specific channel by assigning them different channels (1-3). -
Page 6: Operating Modes
SVAT ELECTRONICS Now You Can See Accordingly the DIP switch located on the back of the monitor should be adjusted to reflect the channel in use. Night Vision The camera includes 8 built-in IR LEDs, which allow viewing of up to 5 feet in the dark. -
Page 7: Monitor Functions
- Press the Menu button to get the following options: - LED on, adjust brightness using + or - - LED flashing, adjust color using + or - - LED off, adjust contrast using + or - GX5201 SVAT ELECTRONICS Now You Can See... -
Page 8: Troubleshooting
Symptom No camera Picture Blank Monitor Interference on Camera Picture Audio problems GX5201 Remedies 1. Check all connections and AC adapters. Make sure camera(s) and monitor are switched ON. 2. Ensure camera(s) and monitor are set to correct channels. 3. Make sure camera is within range of the monitor. -
Page 9: Specifications
* This device must accept any interference received, including interference that may cause undesired operation. CE directive 95/5/EEC, EMC directive 89/336/EEC, LV directive 73/23/EEC. This class B digital apparatus complies with Canadian ICES-003. GX5201 SVAT ELECTRONICS NTSC or PAL standard 5.6 mm, fixed focus... -
Page 10: Drilling Template
SVAT ELECTRONICS Now You Can See DRILLING TEMPLATE To wall mount the camera, drill two holes using a 1/4" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. GX5201... -
Page 11: Gx515B Accessory
4 hours of continuous use. The GX515B easily attaches to the bottom of the GX515 camera for a completely wireless surveillance system. (Not included with the GX5201) Visit www.svat.com for more information on the GX515B Battery Pack... - Page 12 SVAT ELECTRONICS Now You Can See w w w. s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c ts f o r a n y i l l e g a l a c t i v i t i e s .
