- Page 1 SVAT ELECTRONICS now you can see Wireless Handheld Outdoor Color Security System COMPLETE SYSTEM Instruction Manual Model # GX5203 www.svat.com...
- Page 2 SVAT ELECTRONICS now you can see www.svat.com GX5203...
-
Page 3: Product Warranty & Registra Tion
We take quality very seriously. This is why all of our products come with a one year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods: SVAT Electronics USA 2315 Whirlpool St., Unit 333 NIagara Falls, New York... -
Page 4: Table Of Contents
1 Color Camera Portable Battery Clip 3.5mm to RCA (male) Wire T IS COMP T IS COMP The GX5203 is compatible with TVs, VCRs, DVRs, computers and other SVAT systems including: WSE201C WSE103C GX5203 Mounting Bracket 2 Power Adapters TIBLE... -
Page 5: Features

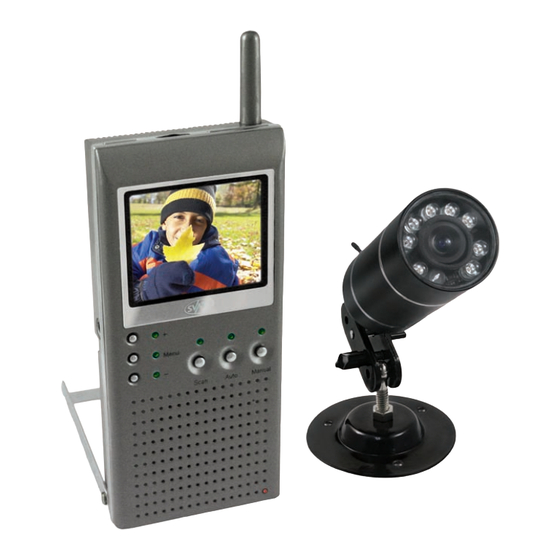

Congratulations on your purchase of the GX5203. The GX5203 consists of a wireless LCD monitor/receiver and a wireless bullet-hole camera, and is an ideal product for covert monitoring in your home or business. TURES TURES • 2.4GHz wireless technology •... -
Page 6: Installing The Camera
3. To connect the monitor to a VCR or DVR for recording purposes, use the 3.5mm to RCA wire and connect the appropriate end to the A/V output port on the monitor, and the other corresponding ends to the audio and video inputs of the VCR/DVR. GX5203 SVAT ELECTRONICS (TRANSMITTER) -
Page 7: Avoiding Interference
ANCED FEA TURES Multi-Camera Operation The GX5203 is designed to work with up to 3 cameras. Additional cameras are sold separately (indoor - WSE103C / outdoor - WSE201C). *IMPORTANT When using more than one camera, make sure you assign each camera a specific channel (1-3). -
Page 8: Operating Modes
SVAT ELECTRONICS now you can see OPERA TING MODES OPERA TING MODES The system can be set to operate in one of 3 modes: SCAN, AUTO or MANUAL. The desired operating mode can be selected using the buttons on the front panel of the monitor. -
Page 9: Monitor Functions
• Press the Menu button to get the following options: • LED on, adjust brightness using + or - • LED flashing, adjust color using + or - • LED off, adjust contrast using + or - GX5203 SVAT ELECTRONICS now you can see... -
Page 10: Troubleshooting
Symptom No camera Picture Blank Monitor Interference on Camera Picture Audio problems GX5203 Remedies 1. Check all connections and AC adapters. Make sure camera(s) and monitor are switched ON. 2. Ensure camera(s) and monitor are set to correct channels. 3. Make sure camera is within range of the monitor. -
Page 11: Specifications
SVAT ELECTRONICS now you can see SPECIFICA TIONS SPECIFICA TIONS INDOOR MONITOR Number of Cameras Supported ...3 Monitor Type ...Color TFT-LCD Screen Size ...2.5" Wireless Frequency...2.4GHz Channel Frequencies ...2.414, 2.432, 2.468 Number of Cameras Supported ...3 Output Terminal ...1CH RCA Out Resolution ...480 x 284 Pixels... - Page 12 SVAT ELECTRONICS now you can see OUTDOOR CAMERA Image Sensor ...1/4" CMOS Color Outdoor Use ...Yes IP Rating ...IP54 Maximum Wireless Range ...300ft (Line of Sight) Optimum Wireless Range ...100ft (Line of Sight) Wireless Frequency...2.4GHz Wireless Channel Frequencies ...2.414, 2.432, 2.468 Resolution ...360 Horizontal TV Lines...
- Page 13 SVAT ELECTRONICS now you can see T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS Crime Stoppers programs are operated as non-profit charities and are managed by a volunteer board of directors who raise funds and pay rewards to individuals who anonymously call with information that helps solve crime.
- Page 14 SVAT ELECTRONICS now you can see T SUPPORTS CRIME ST OPPERS T SUPPORTS CRIME ST OPPERS To receive more information about Crime Stoppers or to make a charitable donation please fill in the fields below, cut on the dotted line and mail in.
- Page 15 SVAT ELECTRONICS now you can see www.svat.com GX5203...
- Page 16 SVAT ELECTRONICS now you can see w w w . s v a t . c o m w w w . s v a t . c o m D i s c l a i m e r S VAT d o e s n o t e n d o r s e a n y o f S VAT p r o d u c t s f o r a n y i l l e g a l a c t i v i t i e s .
