SCS1600/3200 User Guide
2: Connections and Physical Requirements

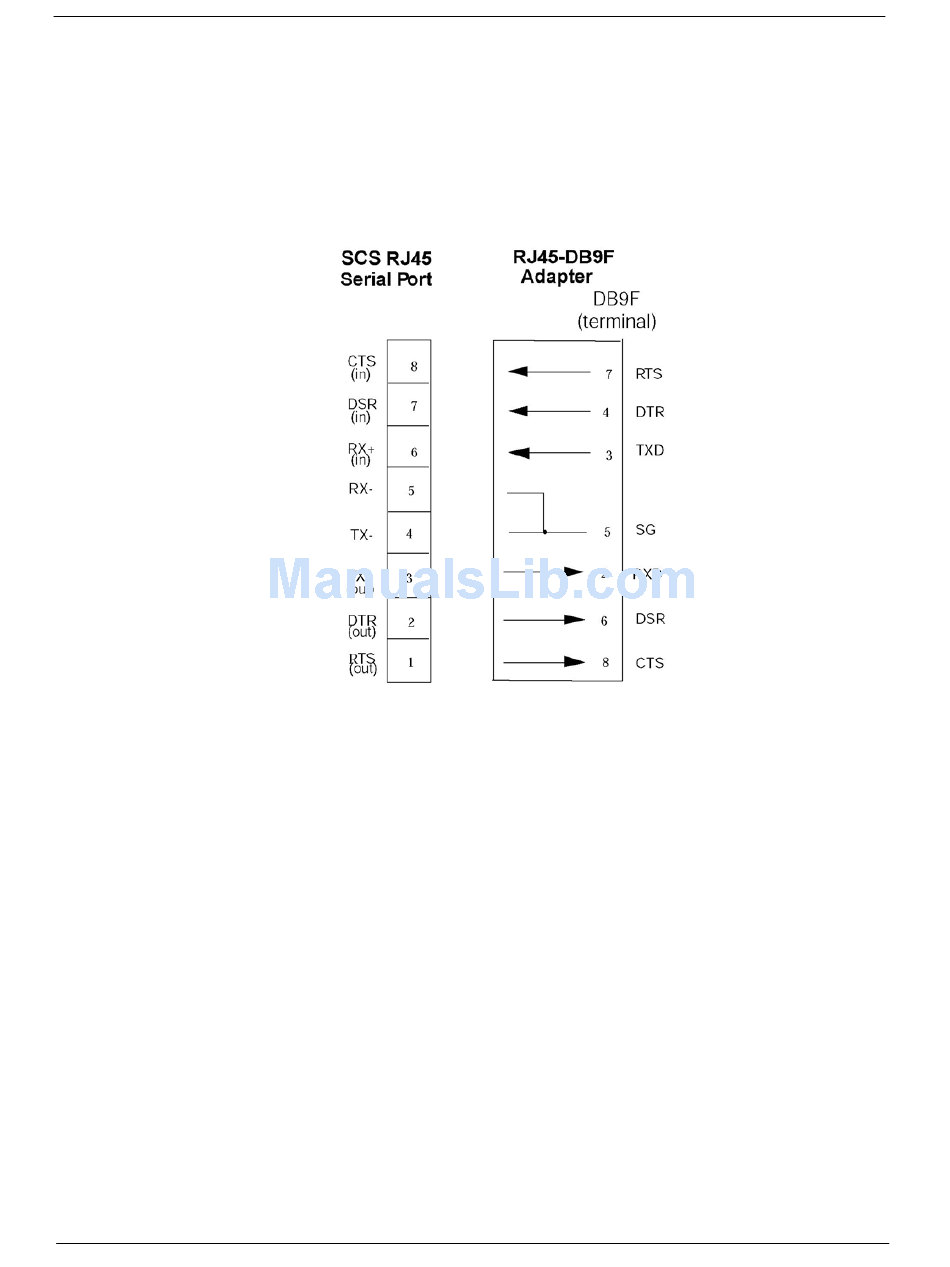

RJ45 to DB9

The arrows in the figure below represent the direction of the signal. Both the transmit and
receive ground signals on the SCS connector are wired to the signal ground on a DB9
adapter.
RJ45-DTE DB9 Adapter
2-4
