SCS1600/3200 User Guide
2: Connections and Physical Requirements

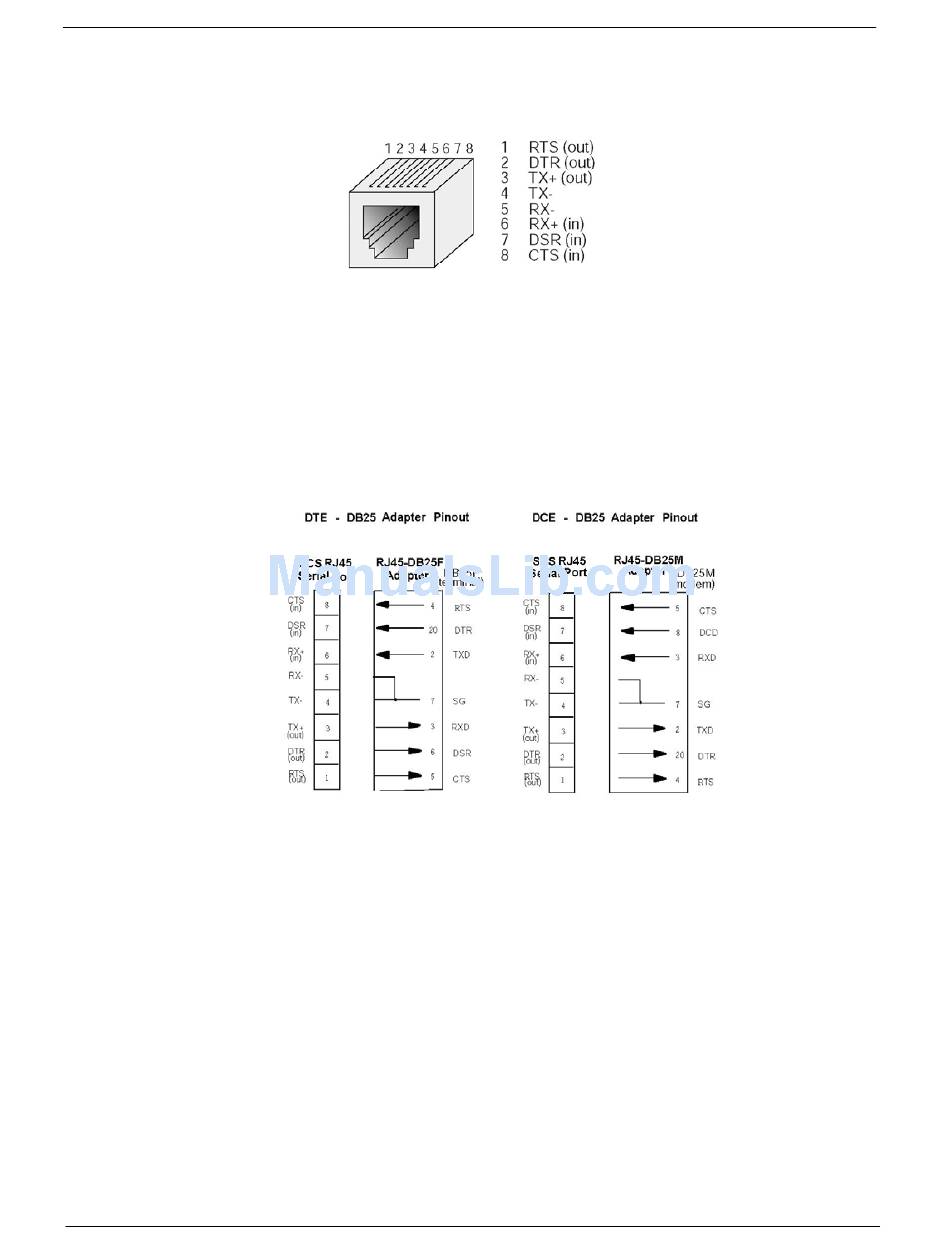

RJ45 Serial Connector
RJ45 to DB25
If you are connecting an RJ45 port to a DTE device (such as a terminal) that has a DB25
connector, you will need to use an RJ45-DTE DB25 adapter. To connect an RJ45 port to
a DB25 connector on a DCE device, you will need an RJ45-DCE DB25 adapter. The
pinout information for both connections is shown below.
Pinouts of RJ45-DB25 Connections
2-3
