Connecting To The Device Port - Lantronix Console Server 800 User Manual

Installation:
Materials:
ConsoleServer 800 terminal port
terminal or computer with RS-232 serial port
RJ45-terminated Cat 5 cable (standard LAN cable)
Lightwave adapter for terminal serial port
1. Attach the Lightwave adapter to the terminal or computer serial port.
2. Connect the Cat 5 cable to the adapter. Connect the other end to the
ConsoleServer 800 terminal port.
3. Turn on the terminal or start the computer's communication program.
Make sure that the communication parameters of the terminal or computer
match those of the terminal port (see above).
3.5

Connecting to the Device Port

Any device that has a serial console port (such as a server or a switch) may be
connected to the ConsoleServer for consolidated remote administration. The
console port must support the RS-232-C serial protocol. Additionally, many
servers must either have the serial port enabled as a console, or must have the
keyboard and mouse detached. Consult the server hardware and/or software
documentation for more information.

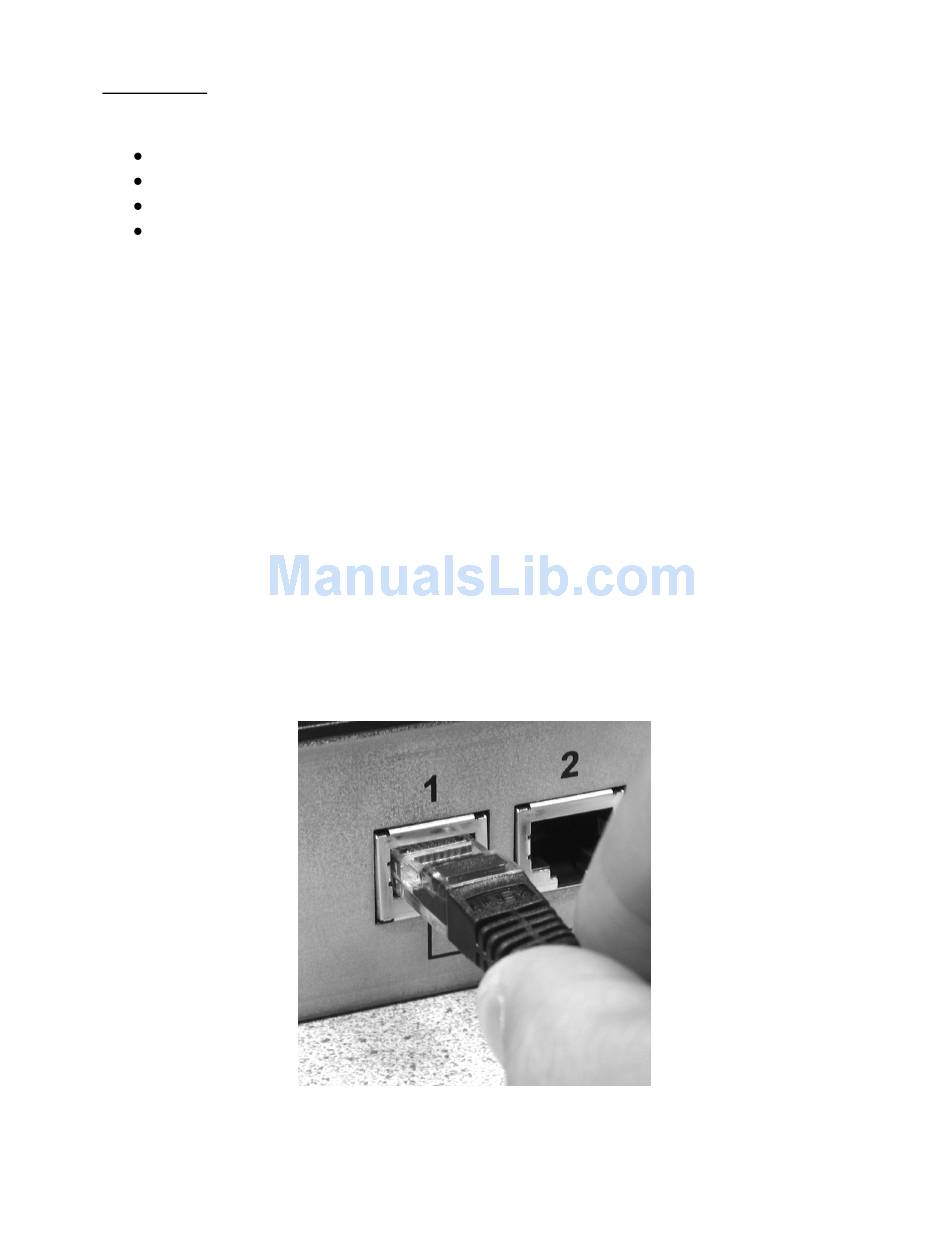

Inserting a cable in the device port
8
