3.3.2 DC
The DC version of the ConsoleServer 800 accepts standard –48 VDC telco
power. The ConsoleServer accepts two DC power inputs for supply redundancy.
See Appendix D for specifications regarding the DC power source.
Installation:
Materials:
small flat-blade screwdriver
wire stripper
ConsoleServer 800 DC power connector kit
wires to 48 VDC power (see Appendix D for specifications)
1. Turn off the circuit breaker to the DC power supply.
2. Select a three-wire set (-48V, –48 Return, and Power Supply Ground)
from the power supply.
3. Strip 0.35 inches (89 mm) of insulation from each wire.
4. Insert a small flat-blade screwdriver in the provided connector.
5. Insert the appropriate wire into the connector. Remove the screwdriver.
6. Attach the provided strain relief to the connector. Be sure to use a tie-
wrap to firmly attach the strain relief to the cable.

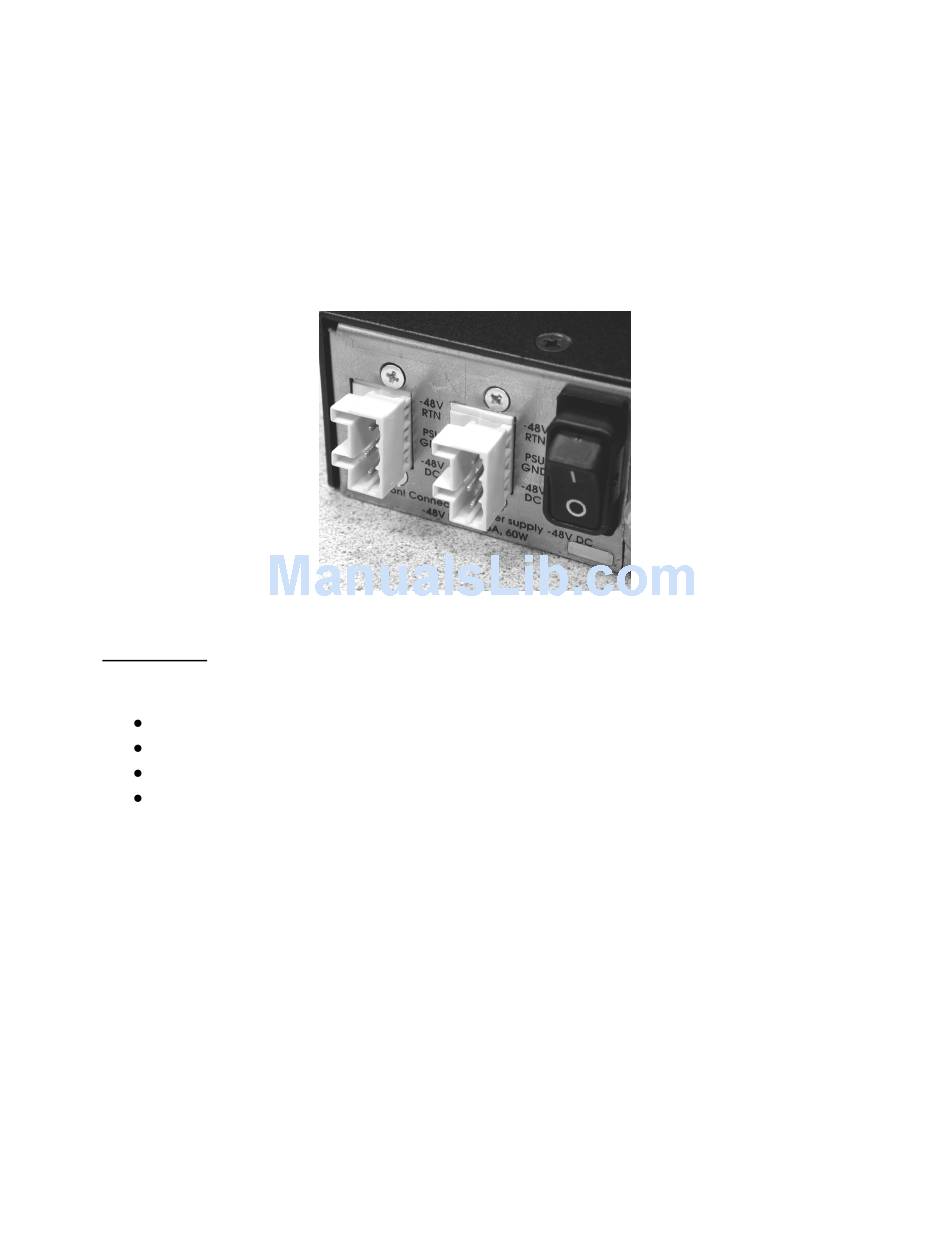

DC power inputs
