Modem Control Asserted
A connection is attempted when the modem control pin is asserted in the serial line.
Modem Emulation
A connection is attempted by an ATD command.
To configure Tunnel 1 Connect Mode:
1. Select Tunnel > Connect Mode at the top of the page. The Tunnel 1 Connect Mode page
appears.
Note:
The CP Output option displayed in the screenshot is only supported in XPort Pro
and XPort AR.
XPort AR User Guide

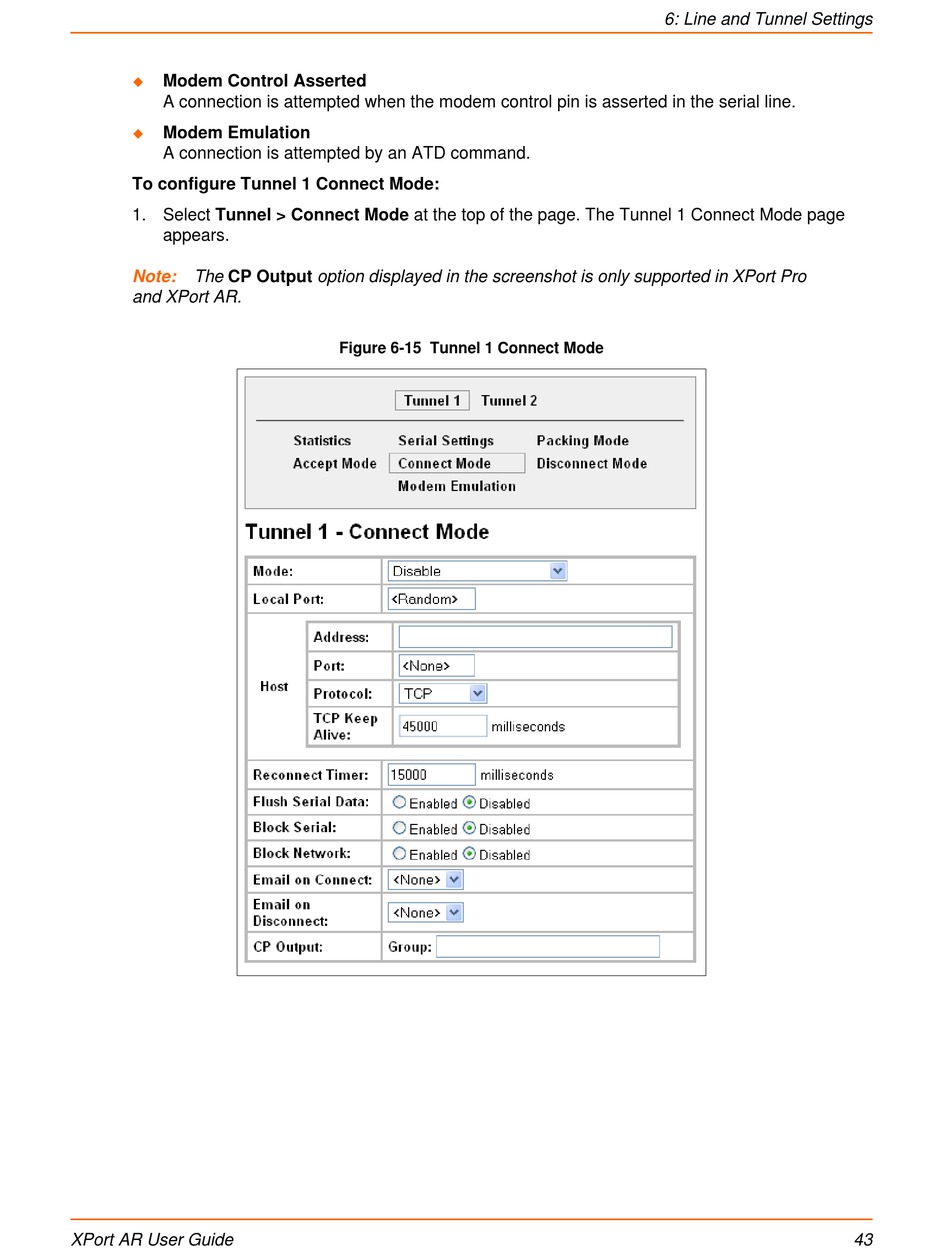

Figure 6-15 Tunnel 1 Connect Mode
6: Line and Tunnel Settings
43
