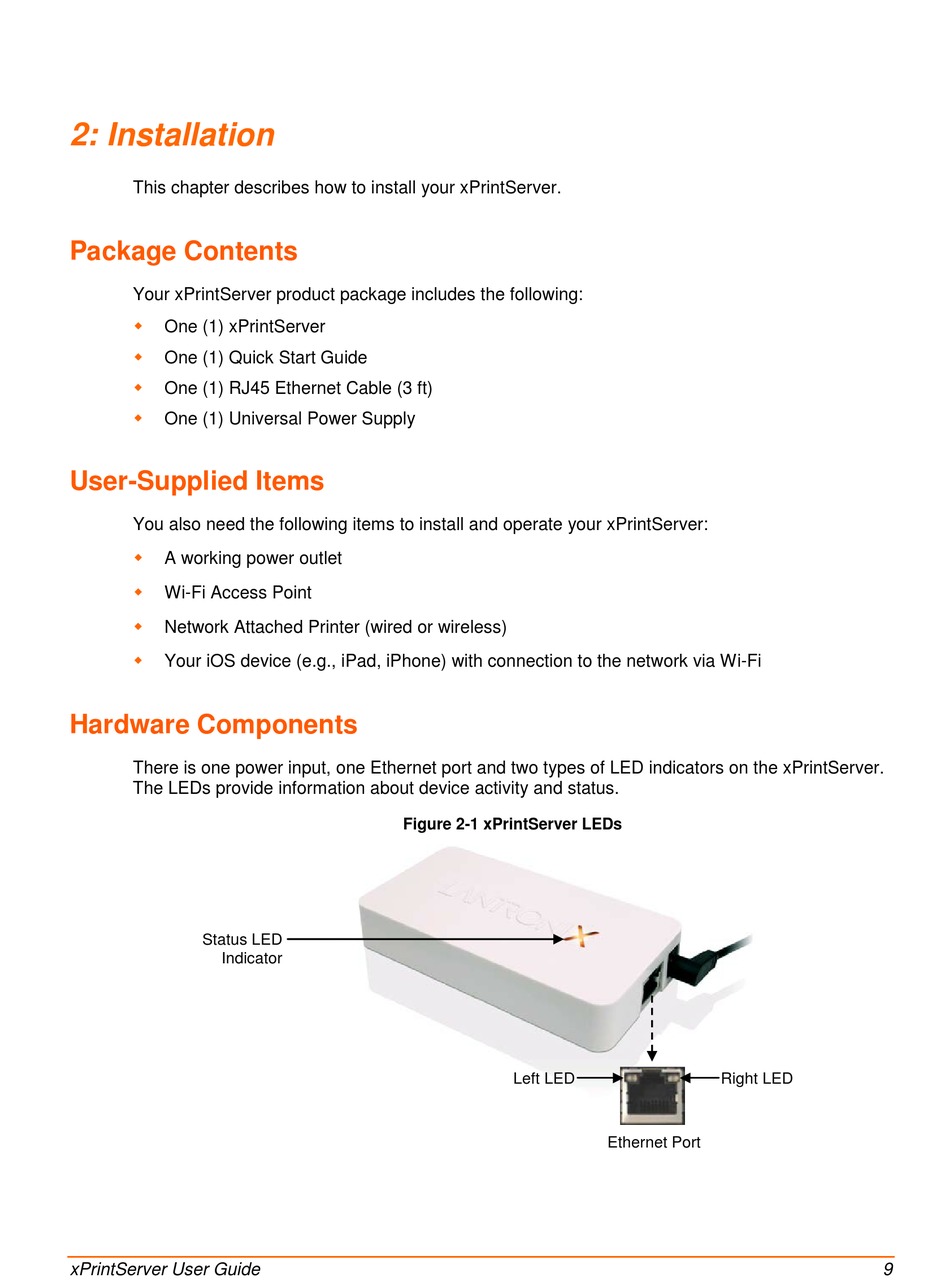

2: Installation

This chapter describes how to install your xPrintServer.

Package Contents

Your xPrintServer product package includes the following:

One (1) xPrintServer

One (1) Quick Start Guide

One (1) RJ45 Ethernet Cable (3 ft)

One (1) Universal Power Supply

User-Supplied Items

You also need the following items to install and operate your xPrintServer:

A working power outlet

Wi-Fi Access Point

Network Attached Printer (wired or wireless)

Your iOS device (e.g., iPad, iPhone) with connection to the network via Wi-Fi

Hardware Components

There is one power input, one Ethernet port and two types of LED indicators on the xPrintServer.
The LEDs provide information about device activity and status.
Status LED
Indicator
xPrintServer User Guide

Figure 2-1 xPrintServer LEDs

Left LED Right LED
Ethernet Port
9
