Chapter 2 – Activation and Installation
Optional Mounting

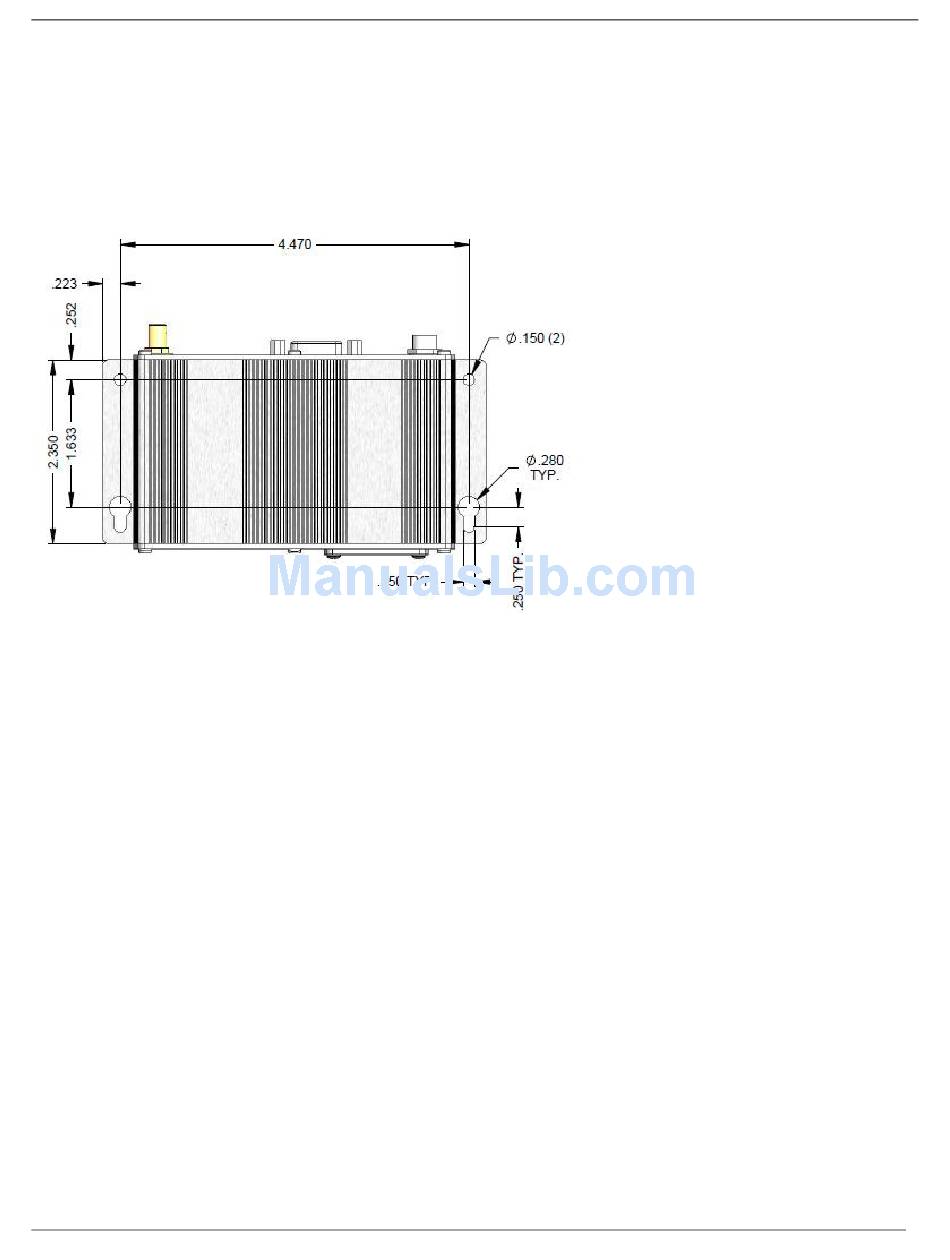

The Cell can be panel mounted with screws spaced according to the measurement shown.
Flat Surface Mounting
The Cell can be panel mounted with screws spaced according to the measurements showing.
Note:
Use either #4 or #6 pan head screws for all four mount locations.
16
Multi-Tech Systems, Inc. MultiModem Cell User Guide
