Options - Icom iF5061D Instruction Manual

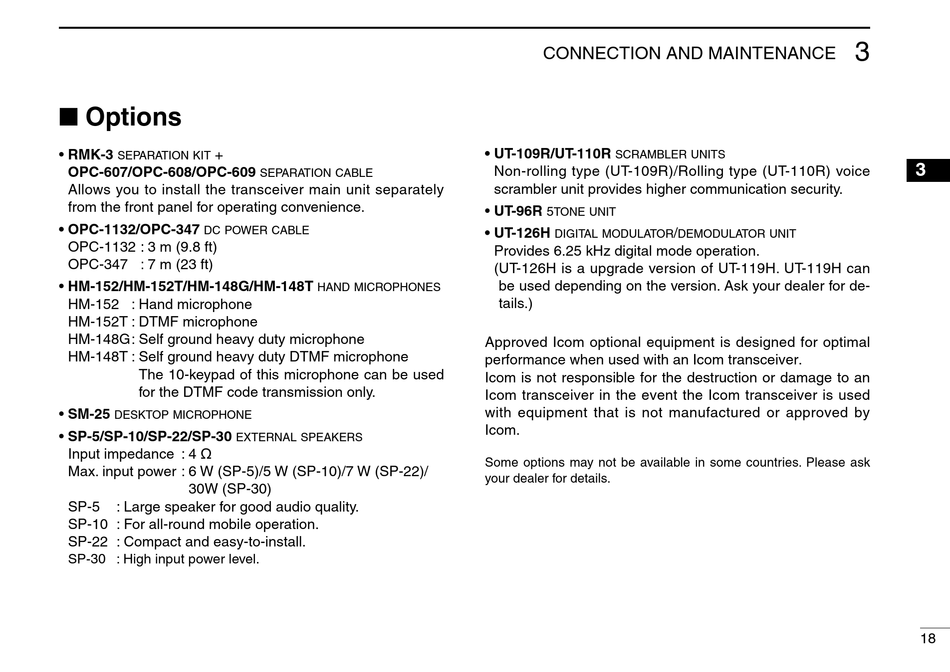

■ Options

• RMK-3
+
separation kit
OPC-607/OPC-608/OPC-609
Allows you to install the transceiver main unit separately
from the front panel for operating convenience.
• OPC-1132/OPC-347
dc power cable
OPC-1132 : 3 m (9.8 ft)
OPC-347 : 7 m (23 ft)
• HM-152/HM-152T/HM-148G/HM-148T
HM-152 : Hand microphone
HM-152T : DTMF microphone
HM-148G : Self ground heavy duty microphone
HM-148T : Self ground heavy duty DTMF microphone
The 10-keypad of this microphone can be used
for the DTMF code transmission only.
• SM-25
desktop microphone
• SP-5/SP-10/SP-22/SP-30
external speakers
Input impedance : 4 ø
Max. input power : 6 W (SP-5)/5 W (SP-10)/7 W (SP-22)/
30W (SP-30)
SP-5 : Large speaker for good audio quality.
SP-10 : For all-round mobile operation.
SP-22 : Compact and easy-to-install.
SP-30 : High input power level.
separation cable
hand microphones
CONNECTION AND MAINTENANCE
• UT-109R/UT-110R
scrambler units
Non-rolling type (UT-109R)/Rolling type (UT-110R) voice
scrambler unit provides higher communication security.
• UT-96R
5
tone unit
• UT-126H
digital modulator
Provides 6.25 kHz digital mode operation.
( UT-126H is a upgrade version of UT-119H. UT-119H can
be used depending on the version. Ask your dealer for de-
tails.)
Approved Icom optional equipment is designed for optimal
performance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an
Icom transceiver in the event the Icom transceiver is used
with equipment that is not manufactured or approved by
Icom.
Some options may not be available in some countries. Please ask
your dealer for details.
/
demodulator unit
