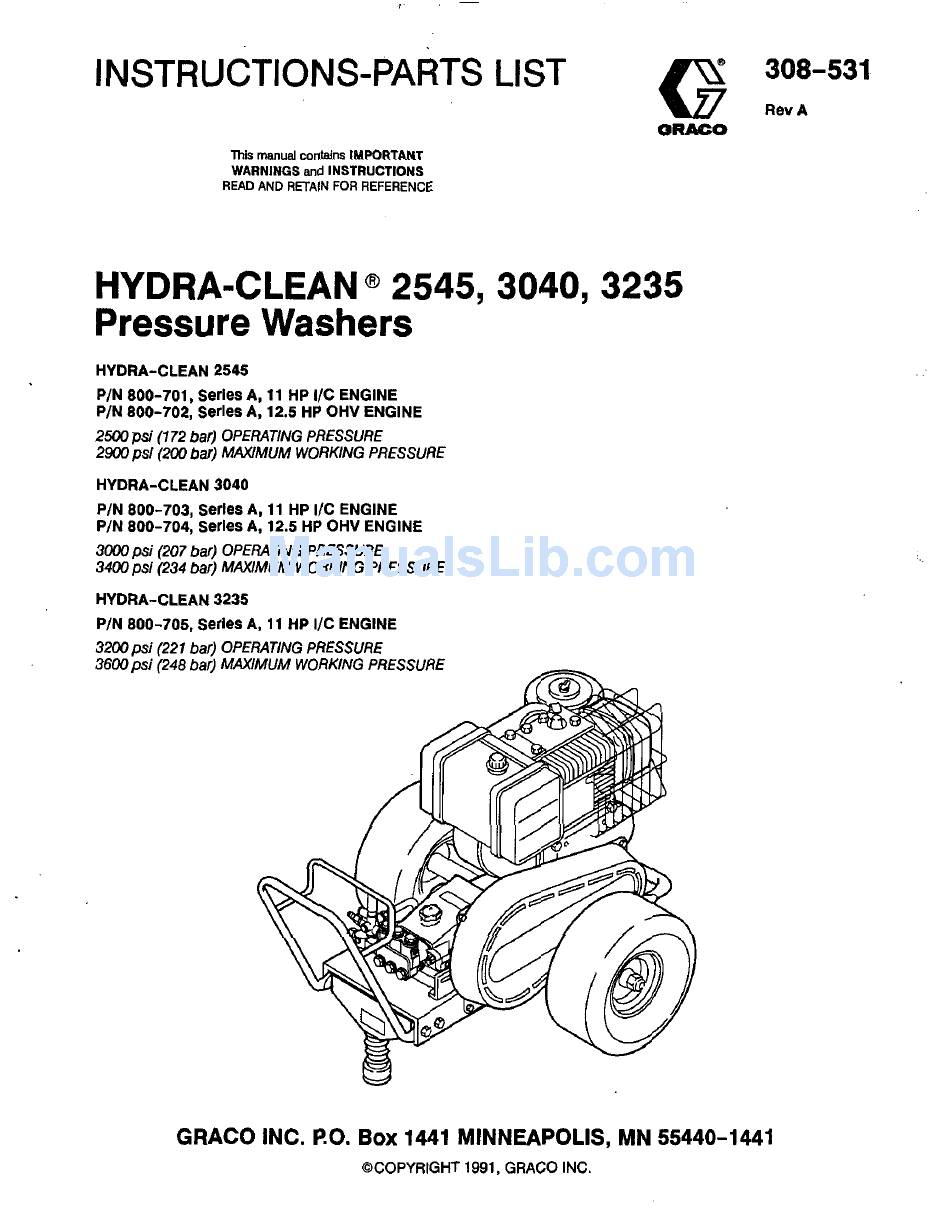

INSTRUCTIONS-PARTS LIST
This
m U a l
WARNINGS and INSTRUCTIONS
READ AND RETAIN FOR REFERENCE
HYDRA-CLEAN
Pressure Washers
HYDRA-CLEAN 2545
PIN 800-701, Series A, 11 HP IIC ENGINE
PIN 800-702, Series A, 12.5 HP OHV ENGINE
psi
2500
(1 72 bar) OPERATING PRESSURE
2900psl(200 bar) MAXIMUM WORKING PRESSURE
HYDRA-CLEAN 3040
PIN 800-703, Series A, 11 HP IIC ENGINE
PIN 800-704, Serles A, 12.5 HP OHV ENGINE
3000 psi (207 bar) OPERATING PRESSURE
3400psi (234 bar) MAXIMUM WORKING PRESSURE
HYDRA-CLEAN 3235
PIN 800-705, Series A, 11 HP IIC ENGINE
3200 psi (221 bar) OPERATING PRESSURE
3600psi (248 bar) MAXIMUM WORKING PRESSURE
GRACO INC. PO. BOX 1441 MINNEAPOLIS, MN 55440-1441
contains IMPORTANT
2545,3040,3235
@
@COPYRIGHT 1991, GRACO INC.
0-0
