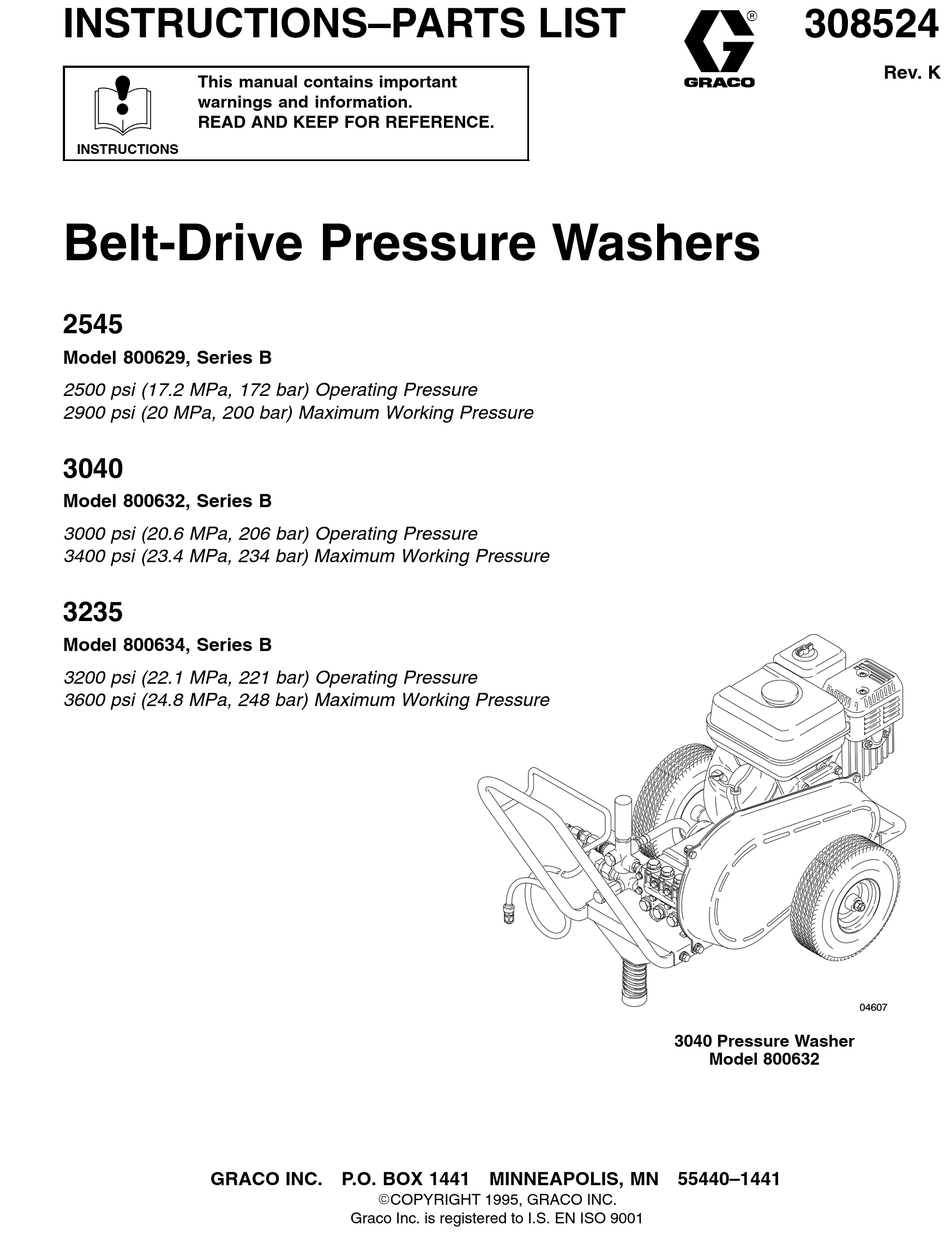

INSTRUCTIONS–PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
Parts
Belt-Drive Pressure Washers
2545
Model 800629, Series B
2500 psi (17.2 MPa, 172 bar) Operating Pressure
2900 psi (20 MPa, 200 bar) Maximum Working Pressure
3040
Model 800632, Series B
3000 psi (20.6 MPa, 206 bar) Operating Pressure
3400 psi (23.4 MPa, 234 bar) Maximum Working Pressure
3235
Model 800634, Series B
3200 psi (22.1 MPa, 221 bar) Operating Pressure
3600 psi (24.8 MPa, 248 bar) Maximum Working Pressure
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
ECOPYRIGHT 1995, GRACO INC.
Graco Inc. is registered to I.S. EN ISO 9001
308524
3040 Pressure Washer
Model 800632
Rev. K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 2500 psi
Summary of Contents for Graco 2500 psi
- Page 1 INSTRUCTIONS Parts Belt-Drive Pressure Washers 2545 Model 800629, Series B 2500 psi (17.2 MPa, 172 bar) Operating Pressure 2900 psi (20 MPa, 200 bar) Maximum Working Pressure 3040 Model 800632, Series B 3000 psi (20.6 MPa, 206 bar) Operating Pressure 3400 psi (23.4 MPa, 234 bar) Maximum Working Pressure...
-
Page 2: Table Of Contents
Table of Contents Pressure Washer Parts Drawing and List Pump Parts Drawing and List Troubleshooting Technical Data Graco Standard Warranty Graco Phone Number Symbols Caution Symbol This symbol alerts you to the possibility of damage to or destruction of equipment if you do not follow the instructions. - Page 3 D Wear protective eye wear, gloves, clothing, and respirator as recommended by the fluid and solvent manufacturer. FUEL HAZARD The fuel used in this pressure washer is combustible. When spilled on a hot surface, it can ignite and cause a fire. Do not fill the fuel tank while the engine is running or hot.
-
Page 4: Check For Shipping Damage
3/4-in. garden hose inlet. The supply hose should not be more than 50 ft (15 m) long NOTE: The water source must have a minimum flow rate equal to that of the pressure washer. See Technical Data on page 15. TI1262A... -
Page 5: Operation
Put the engine switch in the ON position, and put the throttle in the RUN position. Do not allow the pressure washer to idle for more than 10 minutes. Doing so may cause the recirculating water to overheat and seriously damage the pump. -
Page 6: Trigger Safety Latch
6. Pull the starter rope to start the engine. Brace one foot on the pressure washer cart, and pull the starter rope out quickly. CAUTION Do not allow the starter rope to snap back against the engine. Let the rope recoil gently to prevent damage to the recoil mechanism. - Page 7 805313. Shutdown, Flushing, and Storage CAUTION If water freezes in the pressure washer, thaw it in a warm room before you try to start it. Do not pour hot water on or into the pump; it may crack the...
-
Page 8: Pump Service
Repair kits are available. See Pump Repair Kits on page 13. For the best results, use all parts in the kits. Relieve the pressure (see page 5) before you proceed with service. NOTES: D The following metric wrenches are needed: 10 mm, 13 mm, and 30 mm. - Page 9 6. Lightly grease the retaining screw and the outer end of the plunger. Place the washer, o-ring, and backup ring around the screw, and install the screw through the plunger. Torque to 14.4 ft-lb (19.5 NSm). NOTE: If you plan to replace the packings, See Servicing the V-Packings at right.
-
Page 10: Pressure Washer Parts Drawing And List
Pressure Washer Parts Model 800629, Series B: 2545 Pressure Washer Model 800632, Series B: 3040 Pressure Washer Model 800634, Series B: 3235 Pressure Washer 22 9 308524 67 43 04604B... - Page 11 NUT, lock; 5/16–18 110963 SCREW, flange, hex hd; 5/16–18 x 3/4 801526 BRACKET, pump 156849 NIPPLE UNLOADER ASSEMBLIES 800323 Model 800629 (2500 psi) 800324 Model 800632 (3000 psi) 800325 Model 800634 (3200 psi) 803142 NIPPLE 803141 BYPASS HOSE 801111 NUT, garden hose...
-
Page 12: Pump Parts Drawing And List
Pump Model 803297 used on 2545 Pressure Washer Pump Model 803737 used on 3040 and 3235 Pressure Washers Kit 28 308524 Pump Parts... - Page 13 Ref. No. Part No. Description 801467 MANIFOLD 801468 SCREW, cap, hex hd 801469 WASHER, lock KIT 1 O-RING KIT 1 SEAT, valve KIT 1 PLATE, valve KIT 1 SPRING KIT 1 GUIDE, valve KIT 4 O-RING 10 KIT 4 KIT 1 VALVE ASSEMBLY (includes 4 to 8) 12 803283 SCREW, cap, socket hd...
-
Page 14: Troubleshooting
Relieve the pressure (see page 5) before you proceed with troubleshooting. PROBLEM CAUSE Engine not starting or No gasoline in fuel tank or carburetor hard to start Low oil Start/Stop switch in STOP position Water in fuel, or old fuel Engine flooded or improperly choked Dirty air cleaner filter Spark plug dirty, wrong gap, or wrong type... -
Page 15: Technical Data
Pressure washer (including fittings) Technical Data 2545 Model 800629 11 HP Honda OHV 6.9 quarts (6.5 liters) 6.9 quarts (6.5 liters) 2500 psi (17.2 MPa, 172 bar) 4.5 gpm (17 lpm) 3/4” garden hose (f) 219 lb (100 kg) 46” (1168mm) 30” (762mm) 26”... -
Page 16: Graco Standard Warranty
With the exception of any special extended or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
