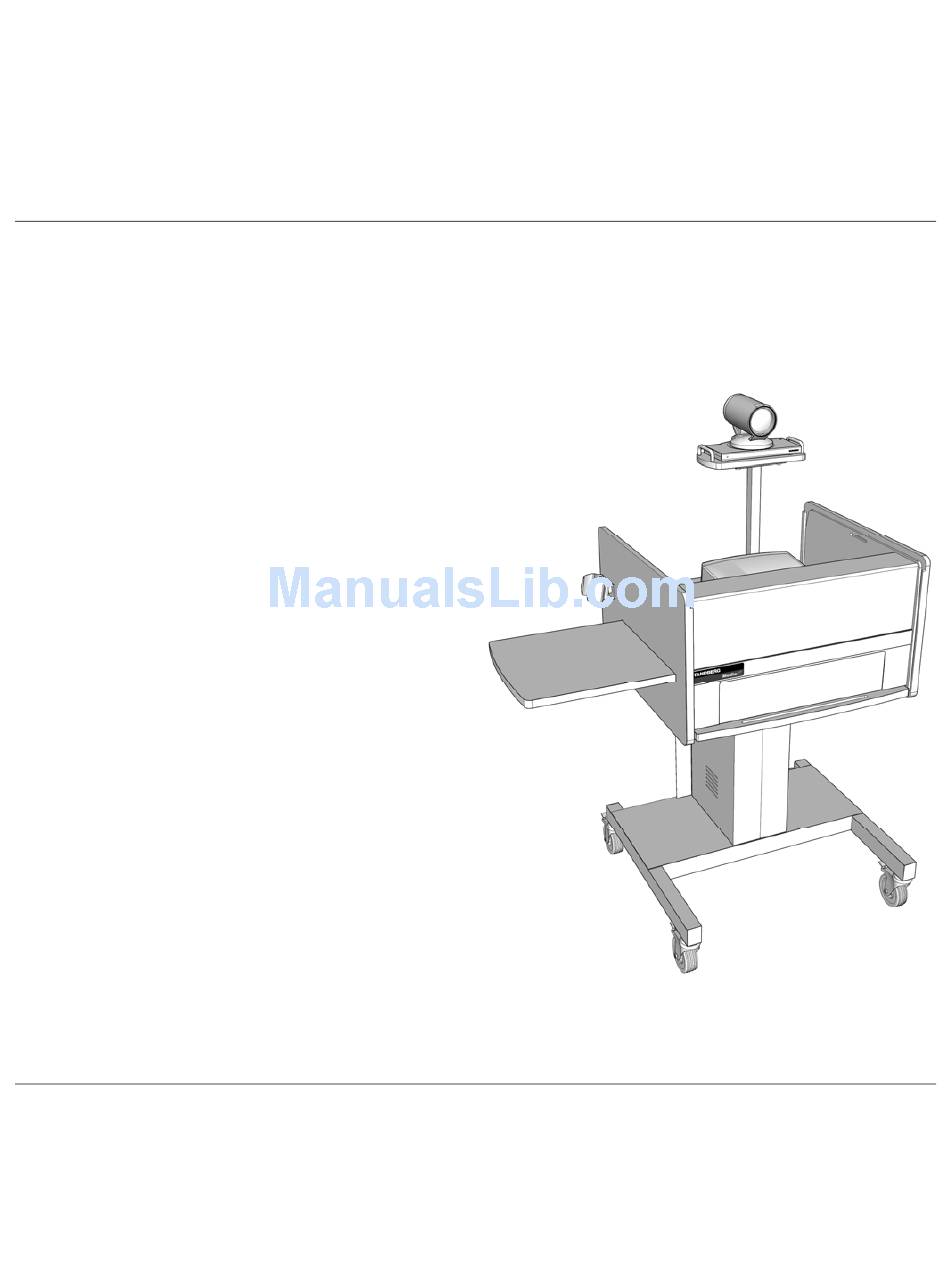

Page 1: User Guide
TANDBERG MEDIAP USER GUIDE D505068.02 This document is not to be reproduced in whole or in part without the permission in writing from TANDBERG 10.2009... -
Page 2: Table Of Contents
INTRODUCTION ............................3 DESIGN FEATURES ..........................3 APPLICATION FEATURES .......................... 3 PERFORMANCE FEATURES ........................4 AT A GLANCE: TANDBERG MEDIAP2 ........................5 TANDBERG MEDIAP2 OVERVIEW ......................5 UNPACKING THE TANDBERG MEDIAP ........................5 TANDBERG EDGE MXP CODEC ..........................5 PRECISION HD CAMERA ............................ -
Page 3: Introduction
This complete, integrated, mobile video solution is great for classroom applications or any meeting room. This USER GUIDE is provided to help you make the best use of your TANDBERG videoconferencing system by addressing the components of the TANDBERG MediaP Design Features •... -
Page 4: At A Glance: Tandberg Mediap2
TANDBERG MediaP Videoconferencing System At a Glance: TANDBERG MediaP2 SECURITY KEY LOCKS (2X) LEXAN COVER WITH LIFT HANDLES PROJECTOR ON TILT ADJUSTABLE SYSTEM SPEAKERS ROCKER PORTABLE MEDIA DEVICE HOLDER (USER SUPPLIED IPOD, ZUNE, ETC.) TANDBERG PRECISION HD CAMERA PULL-OUT ON SWIVEL AND HEIGHT-ADJUSTABLE... -
Page 5: Tandberg Mediap2 Overview
The codec is housed in the vertical column of the cart’s base. Please refer to the TANDBERG EDGE MXP CODEC USER GUIDE for how to navigate and operate the codec. Precision HD Camera The TANDBERG Edge MXP codec is optimized with the addition of a remote controllable Precision HD camera. It allows users to fully maximize the High Definition experience and provides superior video quality at any bandwidth to provide crystal-clear, true-to-life quality for rich interaction and collaboration. -
Page 6: Mobile Cart
• locking LEXAN cover • secure ancillary storage area simplicity • integrated cables for easy system connections • TANDBERG advanced remote control mobility • locking castor wheels • small footprint In addition, small, practical features have been implemented to enhance user experience: slide-out shelf height-adjustable camera shelf that also pivots 45°... -
Page 7: Microphone
Your actual projector may appear different than the drawings in this manual. Remote Control The TANDBERG remote control is used to control all codec functions of the MediaP system. When in range, picking-up or moving the remote control will automatically wake up the system in the event the screen saver or sleep mode is activated. -
Page 8: Installation
TANDBERG MediaP Videoconferencing System INSTALLATION The TANDBERG MediaP components are: TANDBERG Edge MXP Codec, Precision HD Camera, lockable mobile cart, high resolution projector, and audio system with speaker and microphone. Refer the following pages for system setup and installation. USB-A... -
Page 9: Installing The Precision Hd Camera
TANDBERG MediaP Videoconferencing System Installing the Precision HD Camera The TANDBERG Precision HD Camera must be mounted to the height-adjustable shelf of the mobile cart. Refer to the following illustration for mounting the camera. 1. Raise the camera shelf. 2. Connect the camera control cable to the HD Camera as shown. -
Page 10: Installing Projector
TANDBERG MediaP Videoconferencing System Installing Projector The projector must be mounted to the adjustable projector shelf on the mobile cart. Refer the following illustration as an example* for mounting the projector. * NOTE: Your projector and mounting holes may appear differently from the example shown below. -
Page 11: Cable Connections
Videoconferencing System Cable Connections The TANDBERG MediaP provides integrated system cables. The bulk of the cables are found from the vertical trunk of the mobile cart, and RCA connections for any peripheral device are found just inside the storage compartment. -
Page 12: Audio Connections
TANDBERG MediaP Videoconferencing System Audio Connections Video Connections D505068.02... -
Page 13: Power And Control Connections
TANDBERG MediaP Videoconferencing System Power and Control Connections D505068.02... -
Page 14: Configuration
The codec, projector, and electronic whiteboard must be calibrated in Currently supported electronic whiteboards: order to properly utilize the MediaP . The integrated TANDBERG Synch SOFTWARE v3.0 module enables an electronic interactive whiteboard to become an integral part of the video presentation enabling greater learner •... -
Page 15: Power Up
Synch device is essential to the proper 1. Appropriately align the projector image to fill the whiteboard area. screen orientation and operation with your TANDBERG system. 2. Set the codec image layout to FULL SCREEN and select PC SOURCE using the TANDBERG Remote. -
Page 16: Direct Mode Calibration
To switch from SMART MODE to DIRECT MODE use the TANDBERG Remote Control to press “#*#*#” (pound-star-pound-star-pound) to initiate DIRECT MODE. Another option to put Synch in to DIRECT... -
Page 17: Operation
TANDBERG Media Plus Videoconferencing System OPERATION Once Synch has been properly calibrated, the TANDBERG MediaP2 system is ready to use. When the local computer (PC Source) is shown in the large windows of any layout you will be able to control the computer desktop from the interactive whiteboard. -
Page 18: Servicing
If the apparatus has been subject to excessive shock by being dropped. If the apparatus does not operate normally when following the operating instructions. NOTE: TANDBERG will provide on request circuit diagrams and component parts list of the system. For servicing, please call one of the following service centers: Canada TANDBERG Inc.
