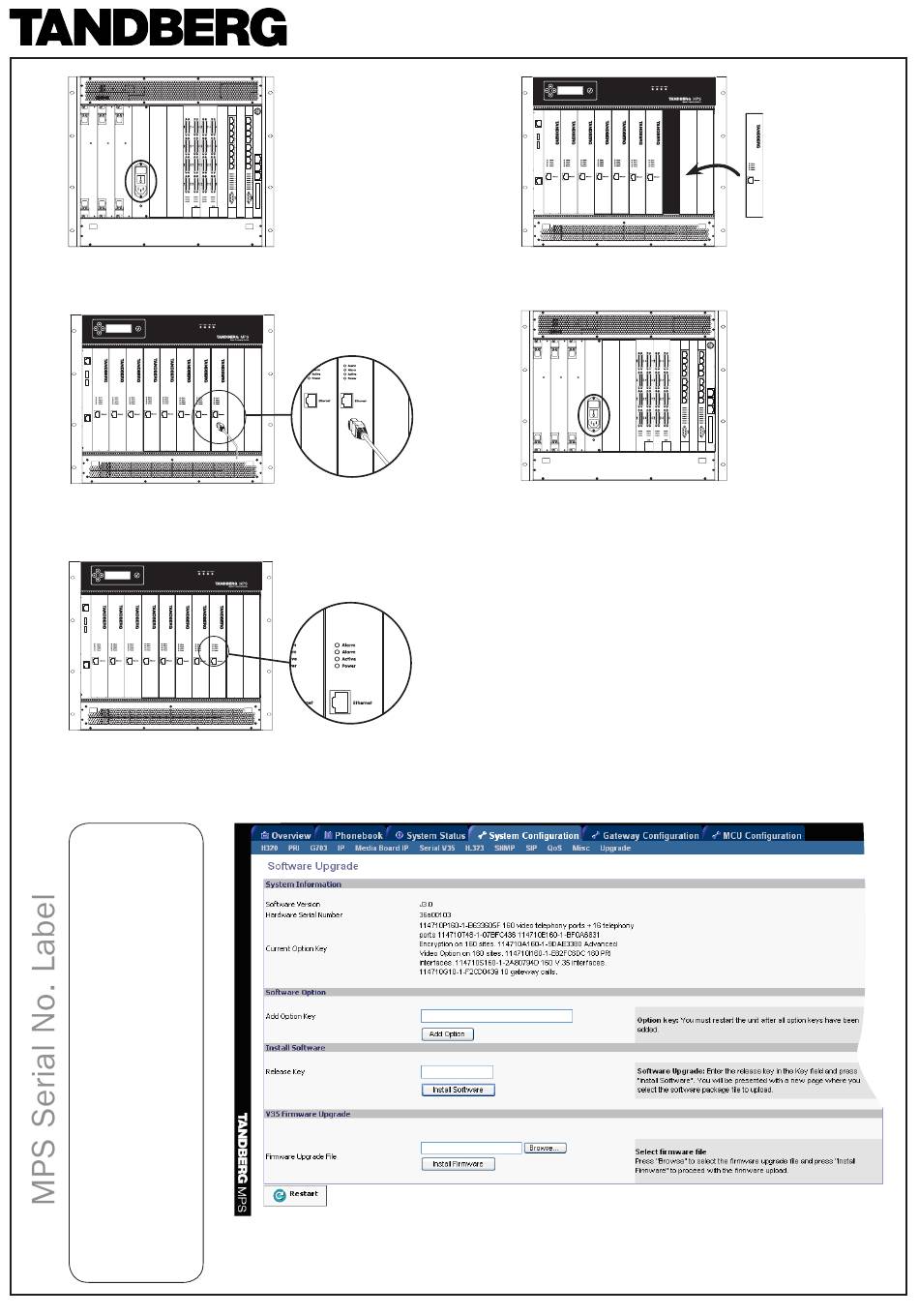

TANDBERG MPS 800 Installation

1
Use the rear panel power switch to
switch off the MPS power.
3
Connect a LAN cable from the Ethernet socket
of the board just installed and to your network.
5
The system is ready for configuration once the
Power and the Active LED are green and the initial
configuration menu appears on the LCD.
D13687.03
MPS 800 Media Port Kit Installation
2
Insert the new media processing board
into the first available slot in the front panel.
4
Turn the MPS power back on.
6
Send the MPS serial No. to your TANDBERG
Representative. You will then receive the option key
needed to activate the new boards.
Access the TANDBERG MPS by entering the IP-
address of the System Controller Board in a
standard web browser to complete the configuration
of the new Media Processing Board and upload
the new option keys, additional Media Ports and
additional Advanced Video Option Ports (optional).
See the below Fig. and the MPS User Manual for
more information.
7
Click the Restart button.
