Internet Security Router User's Manual

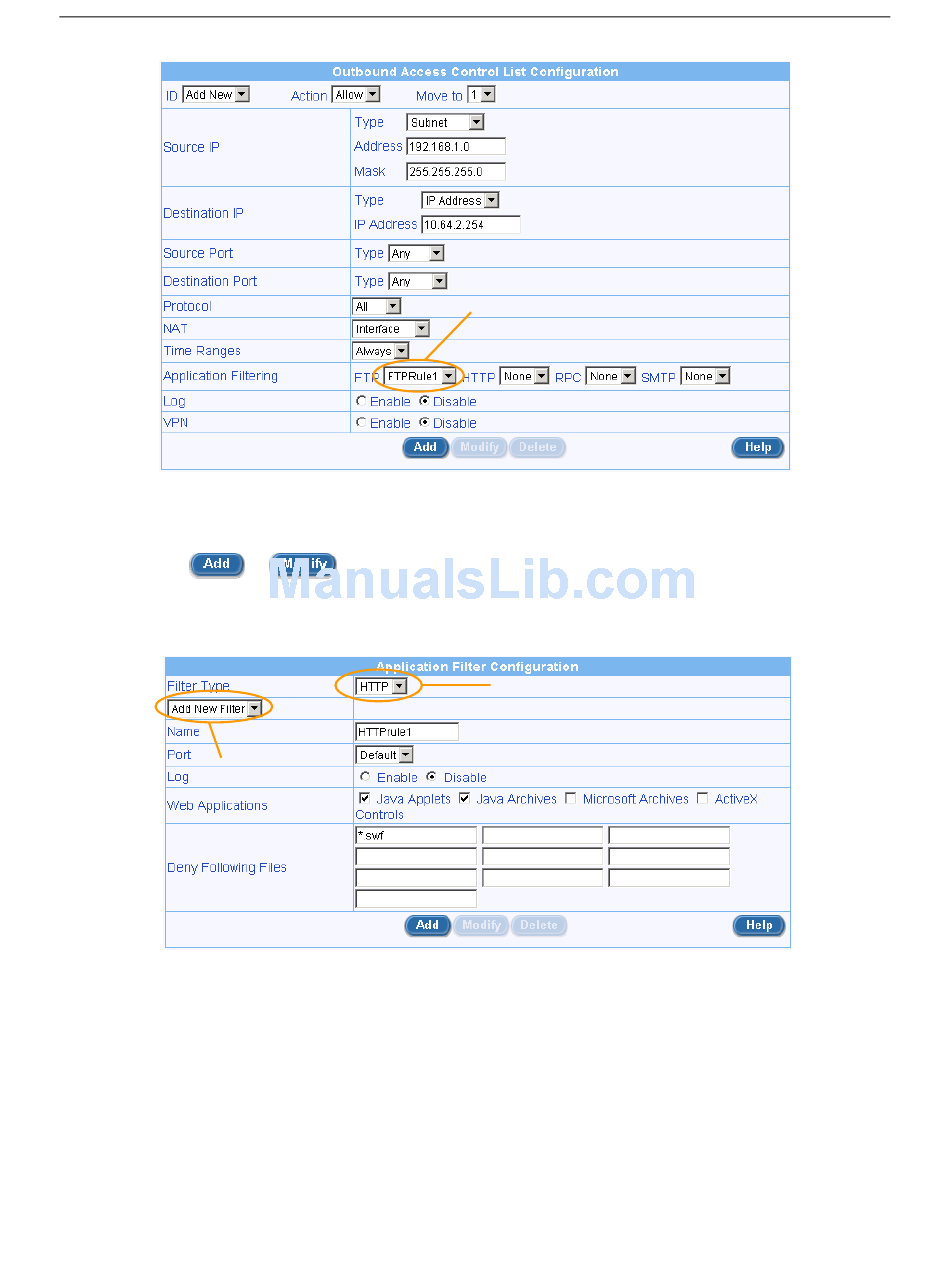

Figure 9.21. FTP Filter Example – Associate FTP Filter Rule to an ACL Rule
11. Associate the newly added FTP application filter rule to a firewall ACL rule (inbound, outbound or
group ACL) by selecting a FTP filter from the FTP filter drop-down list (see Figure 9.21) and then
click on

9.7.1.3.2 HTTP Example: Add a HTTP Filter Rule to Block JAVA Applets and Java Archives

1. Open the Application Filer Rule Configuration page (Firewall è Policy List è Application Filter)
Filter Rule drop-
down list
Figure 9.22. HTTP Filter Example – Configuring HTTP Filter Rule
2. Select HTTP from the Filter Type drop-down list.
3. Select "Add New Filter" from the Filter Rule drop-down list.
4. Enter a name for this rule – in this example, HTTPrule1.
5. Change the port number if necessary. However, it is recommended that you keep the "Default"
setting.
6. Choose to enable to disable the logging option. The default setting is to keep the logging for this
rule disabled.
or button to save the settings.
Chapter 9. Configuring Firewall/NAT Settings
FTP filter drop-down list
Filter Type drop-down list
71
