Internet Security Router User's Manual
Refer to the section 10.3 Establish VPN Connection Using Automatic Keying to configure VPN policies on
ISR2 using automatic keying with the following addresses:
1. Use 192.168.12.0/255.255.255.0 as Local Secure Group
2. Use 192.168.11.0/255.255.255.0 as Remote Secure Group

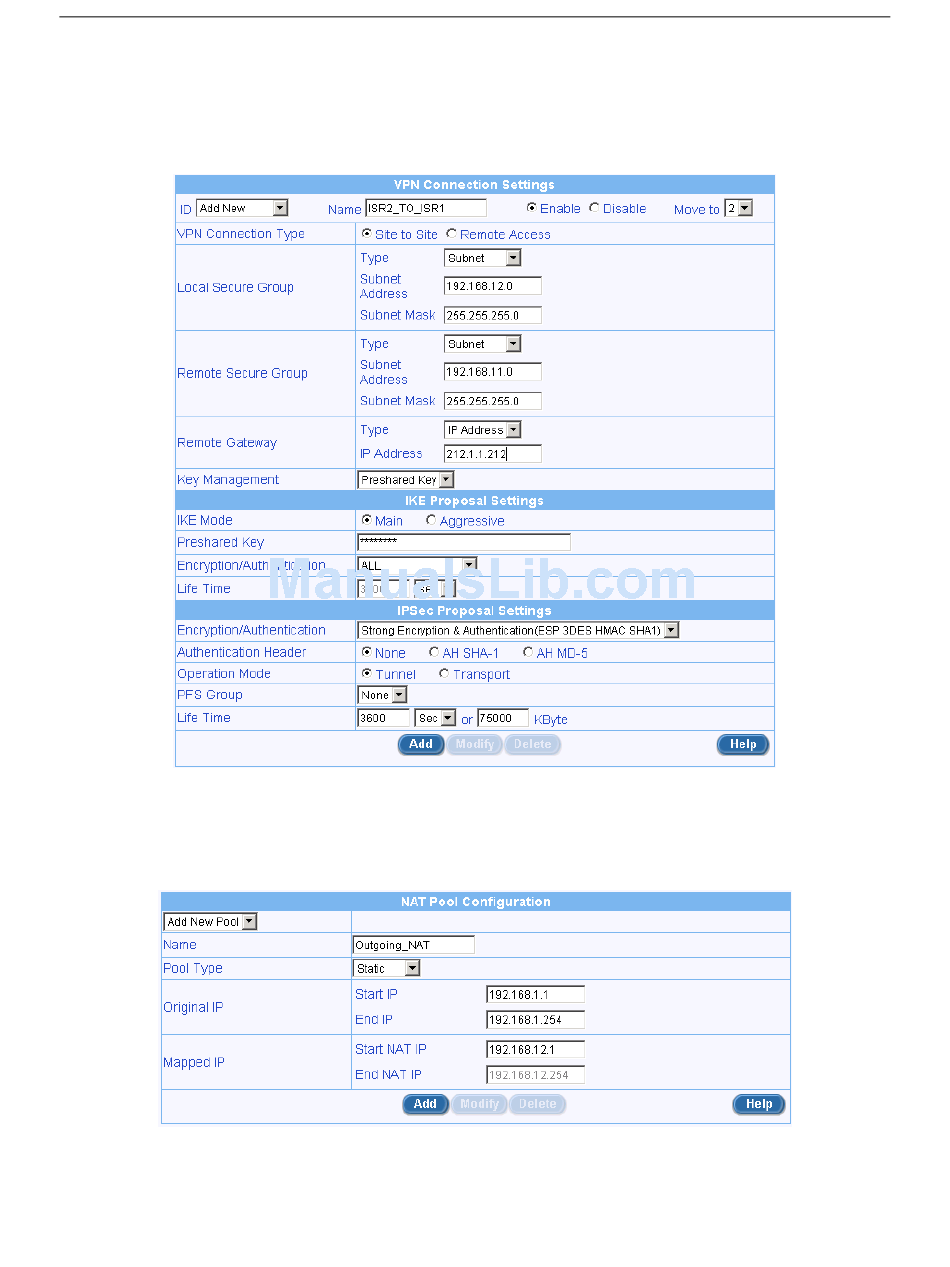

Figure 10.13. Extranet Example –VPN Policy Configuration on ISR2
Step 2: Configure Static NAT Pools
1. Configure outgoing static NAT pool (static-NAT) for translating addresses in range 192.168.1.1-
192.168.1.254 to 192.168.12.1-192.168.12.254
Figure 10.14. Extranet Example – Outgoing NAT Pool Configuration on ISR2
Chapter 10. Configuring VPN
105
