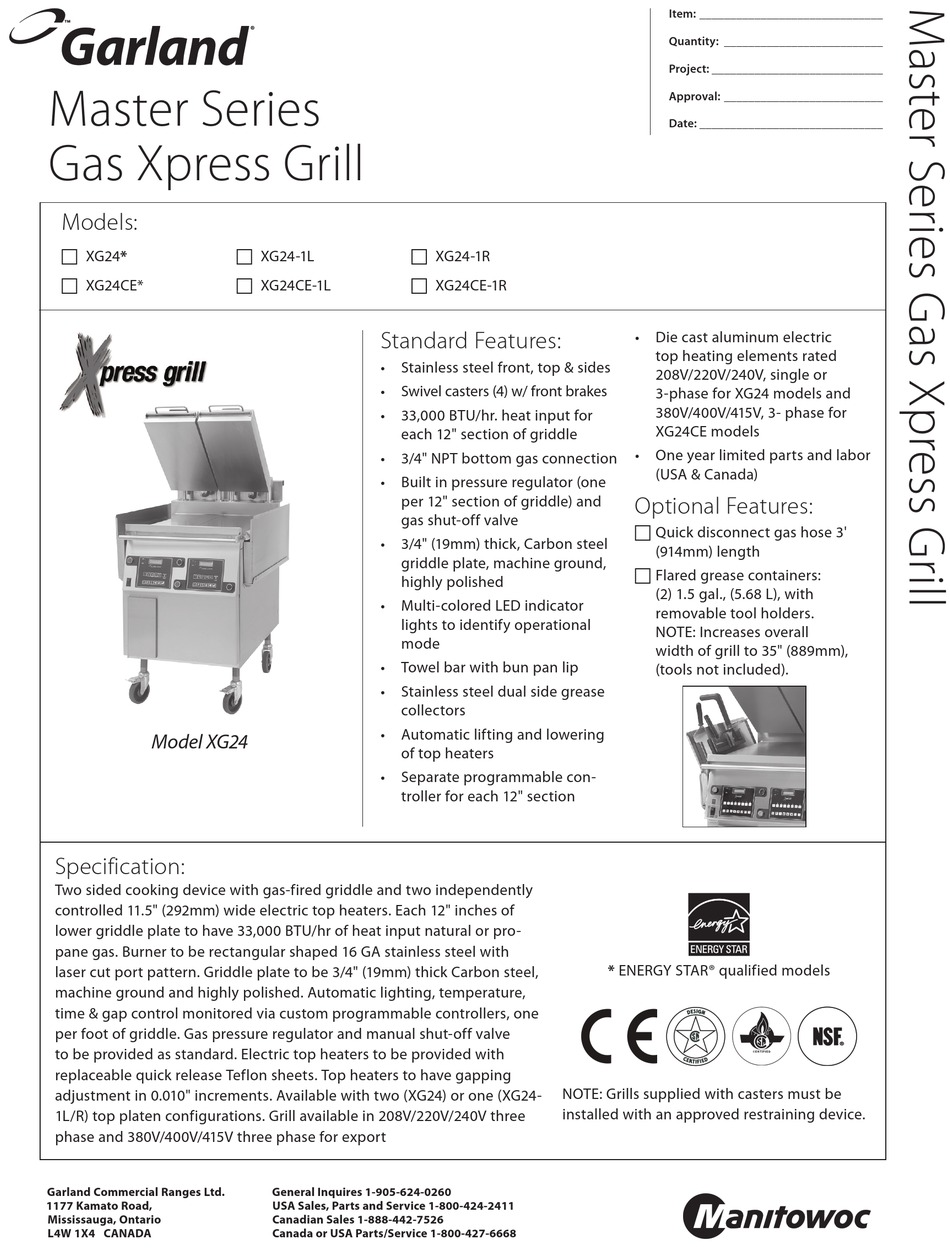

Garland XG24 Series Instruction Manual

Master Series
Gas Xpress Grill
Models:
 XG24*
 XG24CE*
Model XG24
Specification:
Two sided cooking device with gas-fired griddle and two independently
controlled 11.5" (292mm) wide electric top heaters. Each 12" inches of
lower griddle plate to have 33,000 BTU/hr of heat input natural or pro-
pane gas. Burner to be rectangular shaped 16 GA stainless steel with
laser cut port pattern. Griddle plate to be 3/4" (19mm) thick Carbon steel,
machine ground and highly polished. Automatic lighting, temperature,
time & gap control monitored via custom programmable controllers, one
per foot of griddle. Gas pressure regulator and manual shut-off valve
to be provided as standard. Electric top heaters to be provided with
replaceable quick release Teflon sheets. Top heaters to have gapping
adjustment in 0.010" increments. Available with two (XG24) or one (XG24-
1L/R) top platen configurations. Grill available in 208V/220V/240V three
phase and 380V/400V/415V three phase for export
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 XG24-1L  XG24-1R
 XG24CE-1L  XG24CE-1R

Standard Features:

• Stainless steel front, top & sides
• Swivel casters (4) w/ front brakes
• 33,000 BTU/hr. heat input for
each 12" section of griddle
• 3/4" NPT bottom gas connection
• Built in pressure regulator (one
per 12" section of griddle) and
gas shut-off valve
• 3/4" (19mm) thick, Carbon steel
griddle plate, machine ground,
highly polished
• Multi-colored LED indicator
lights to identify operational
mode
• Towel bar with bun pan lip
• Stainless steel dual side grease
collectors
• Automatic lifting and lowering
of top heaters
• Separate programmable con-
troller for each 12" section
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________
• Die cast aluminum electric
top heating elements rated
208V/220V/240V, single or
3-phase for XG24 models and
380V/400V/415V, 3- phase for
XG24CE models
• One year limited parts and labor
(USA & Canada)
Optional Features:
 Quick disconnect gas hose 3'
(914mm) length
 Flared grease containers:
(2) 1.5 gal., (5.68 L), with
removable tool holders.
NOTE: Increases overall
width of grill to 35" (889mm),
(tools not included).
* ENERGY STAR® qualified models
NOTE: Grills supplied with casters must be
installed with an approved restraining device.
®
