ENGLISH

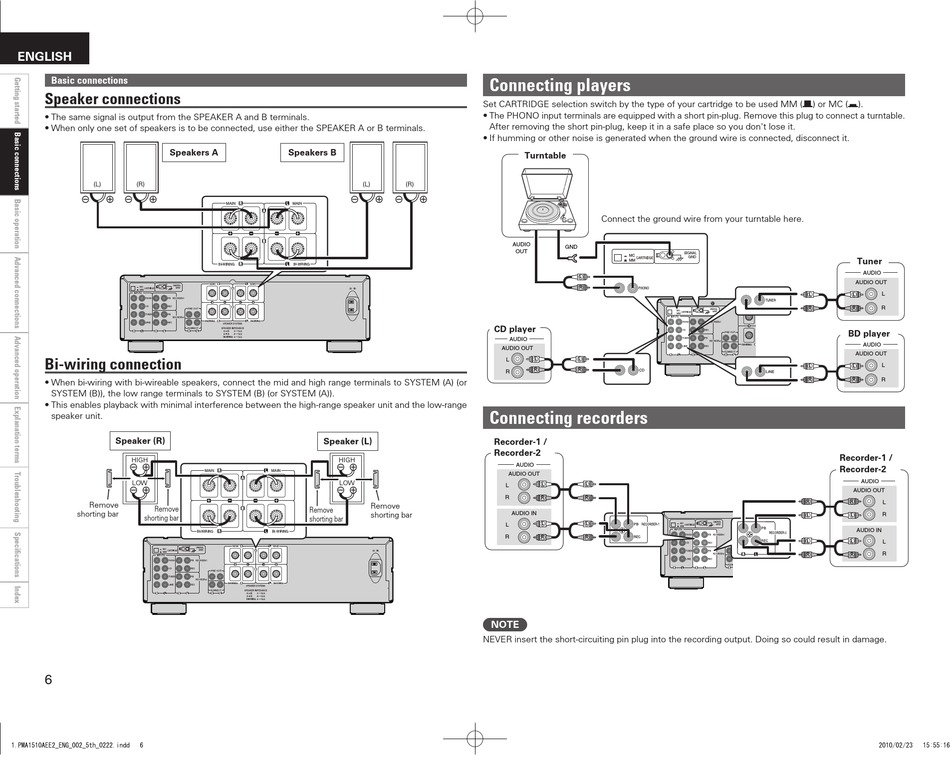

Basic connections

Speaker connections

• The same signal is output from the SPEAKER A and B terminals.
• When only one set of speakers is to be connected, use either the SPEAKER A or B terminals.
Speakers A
(L) (R)
w q w q

Bi-wiring connection

• When bi-wiring with bi-wireable speakers, connect the mid and high range terminals to SYSTEM (A) (or
SYSTEM (B)), the low range terminals to SYSTEM (B) (or SYSTEM (A)).
• This enables playback with minimal interference between the high-range speaker unit and the low-range
speaker unit.
Speaker (R)
HIGH
w q
LOW
w q
Remove
Remove
shorting bar
shorting bar
6
Speakers B
(L) (R)
w q w q
Speaker (L)
HIGH
w q
LOW
w q
Remove
Remove
shorting bar
shorting bar

Connecting players

Set CARTRIDGE selection switch by the type of your cartridge to be used MM (j) or MC (h).
• The PHONO input terminals are equipped with a short pin-plug. Remove this plug to connect a turntable.
After removing the short pin-plug, keep it in a safe place so you don't lose it.
• If humming or other noise is generated when the ground wire is connected, disconnect it.
Turntable
Connect the ground wire from your turntable here.
AUDIO
GND
OUT
L
R
CD player
AUDIO
AUDIO OUT
L
L L
R R
R

Connecting recorders

Recorder-1 /
Recorder-2
AUDIO
AUDIO OUT
L L L
R
R R
AUDIO IN
L L
L
R
R R
NOTE
NEVER insert the short-circuiting pin plug into the recording output. Doing so could result in damage.
Tuner
AUDIO
AUDIO OUT
L
L L
R R R
BD player
AUDIO
AUDIO OUT
L
L L
R
R R
Recorder-1 /
Recorder-2
AUDIO
AUDIO OUT
R R L
R
L L
AUDIO IN
L L L
R
R R
