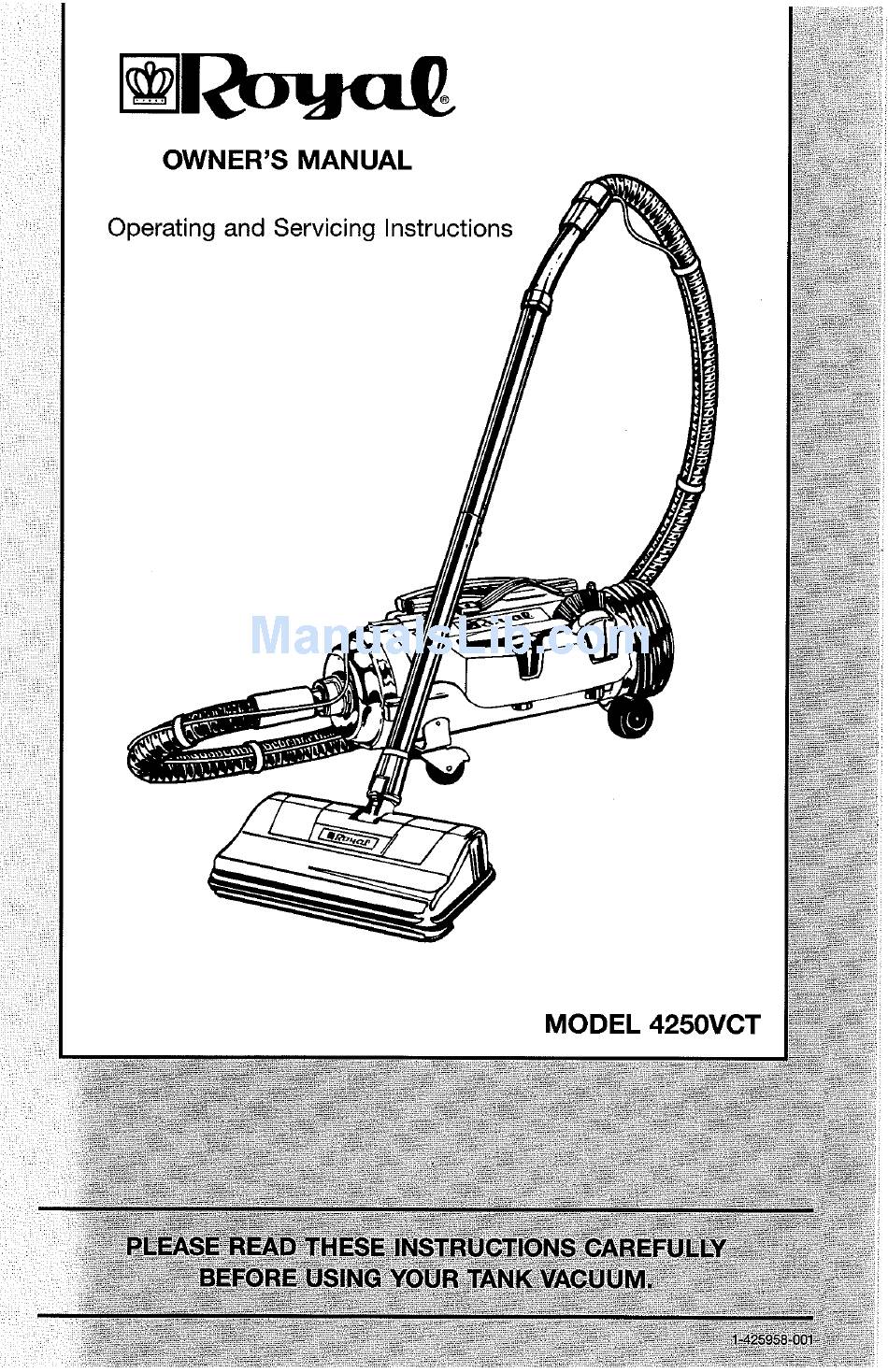

Royal 4250VCT Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4250VCT and is the answer not in the manual?

Questions and answers

Related Manuals for Royal 4250VCT

Summary of Contents for Royal 4250VCT

  • Page 2 This information has been compiled by the Vacuum Cleaner Manufacturer's Associa- tion working with government and private sources, concerned with product safety. These basic guidelines are for your protection and convenience. THIS CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY IMPORTANT SAFETY INSTRUCTIONS When you use an appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE YOU USE THE APPLIANCE...

  • Page 3: Table Of Contents

    GROUNDING INSTRUCTIONS (only for 3-wire models, those that include 2 blades and 1 grounding pin) This appliance must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock.

  • Page 4: Features

    Powerful Royal Tanks are versatile tanks for you Get acquainted with your tank vacuum cleaner Take full advantage of all the special completely closed when cleaning floors accessory tools for the Royal tank. since maximum suction is required for They'll work hard for you. floor cleaning.

  • Page 5: Using Your Tank Vacuum Cleaner

    USING YOUR ROYAL TANK VACUUM IS AS EASY AS 1-2-3 ATTACH THE FLEXIBLE HOSE Insert the slotted connector end of the hose into the front end bell. Twist clockwise to lock securely. SELECT THE ATTACHMENT Determine what vacuuming you will be doing, then insert the desired tool into the pistol grip or wand.

  • Page 6: Attachments

    HOW TO USE THE ATTACHMENTS Your tank's assortment of cleaning tools lets you vacuum almost every- thing around your home. NOTE: Disconnect cleaner from electrical outlet during assembly ASSEMBLE THE CLEANING WANDS: The wand with the vinyl seal is the lower section which attaches to the Power nozzle and cleaning tools.
  • Page 7 ROUND DUSTING BRUSH: Cleans bookcases, lampshades, screens, televisions, picture frames, . . . baseboards, and all metal, wood, or molded plastic furniture any place around your home. The long soft bristles won't mar your furniture but will delicately lift the surface dust and whisk it away.

  • Page 8: Using The Power Nozzle

    Transforms the tank into an upright-type vacuum. With its separate motor and revolving brush system, the Power Nozzle actually lifts your carpet. The revolving brush gently sweeps the carpet clean of dust and dirt particles deep in carpeting. To attach, press down on wand until pin snaps into place and locks. The flat area of the tube seal should face towards the front of the power nozzle.

  • Page 9: Paper Bag Removal And Replacement

    PAPER BAG REMOVAL AND REPLACEMENT NOTE: Disconnect cleaner from electrical outlet for maintenance. Replace the paper bag when approximately one-half full. Set the tank on end with the exhaust vent (rear bell) on the floor. Grasp the bell clamps in each hand. Holding your hands toward the rear of the clamp, pull outward.

  • Page 10: Micro Fresh Filtration System (Optional)

    Fl LTRATION SYSTEM (optional) Royal's filtration system for over 99.9% "fresh" exhaust air. This system assures you that fine powdery dust will not be blown back into the air you breathe or onto your furniture and carpets again. *Examine the Five Layers of Filtration in Your Tank Vacuum Circulating air lifts dust and dirt from your carpets and transports it through the hose to a 175 square inch double layer disposable paper bag (I)*.
  • Page 11 Fa-] Replaceable Filter Pads NOTE: Unplug tank before changing filter. The filter pad is located between the filter bag and tank motor. Check your filter pad periodically for dirt build-up. The filter pad should be changed at least every six months or when three paper bags have been used. TO INSTALL, remove front end bell and cloth bag.

  • Page 12: Using The Blower Feature

    HOW TO USE YOUR TANK FOR BLOWING NOTE: Unplug tank before changing Hose Connection. (1) Simply connect the hose to the rear end bell of the tank instead of the front end bell. You'll be using the exhaust end instead of the suction end. Be conscious of where you'll be blowing the dust.

  • Page 13: Warranty

    WARRANTY Royal Appliance Mfg. Co. warrants this Royal vacuum cleaner to be free from defects in material and workmanship. The period of the warranty is a LIFETIME on the housing and a limited number of years (stated on original carton) on all other components (except two years on the hose assembly, accessory tools, and on the power nozzle), depending on model pur- chased.
  • Page 14 Model No. PLEASE ENTER SERIAL NO.
